Installation

Use the corresponding MountingSet to install your loop. All MountingSets come with
specific mounting instructions.
Carefully remove the lower rubber pad first and then the upper
Step 1
rubber pad.
Proceed as follows:
- Open the iPad resting shelf by pressing the button down
- Lift the lower rubber pad starting from the center of the loop (see
- Close the resting shelf and gently pull the upper rubber cushion

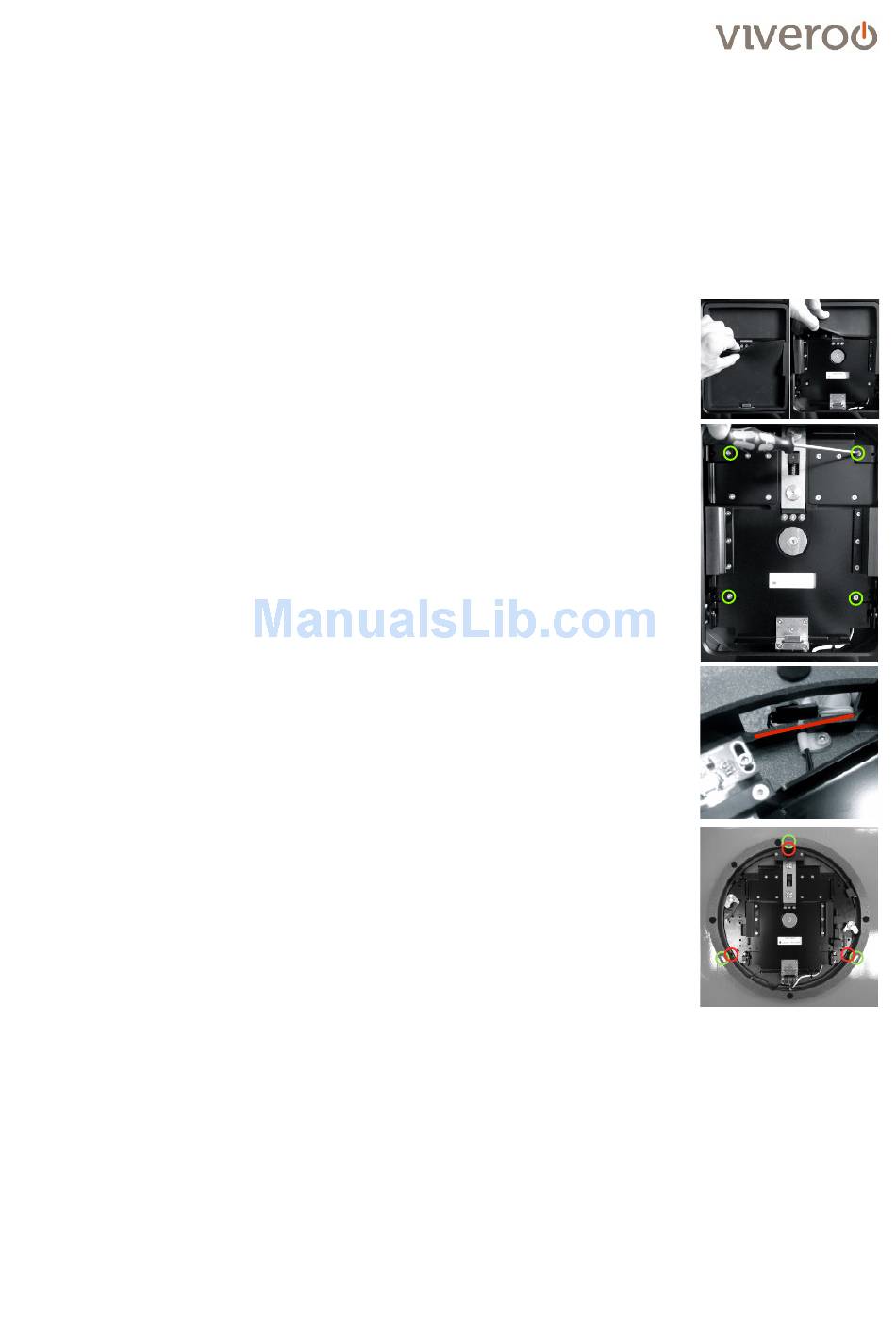

Carefully remove the four screws on the cover (see photo - green).
Step 2
! IMPORTANT: Hold cover tightly when removing the final screw to
avoid damage from falling down.
Carefully remove the cover by lifting it towards you and place the
Step 3
cover in a safe spot.
Plug the connecting cable from the MountingSet into the loop plug
Step 4
contact. Make sure that the cable runs along the outer section
behind the barrier (see photo -
! WARNING: Do not run the connecting cable through the inner
section of the loop because it can easily block and damage the
rotating function.
The various fastening points for the loop are easily identifiable.
Step 5
Using the screws included in the MountingSet, fasten the loop as
follows:
- Photo Red:
- Photo Green: Furniture and door mounting
! IMPORTANT: Please follow the instructions included with the
MountingSet.
Place the cover on the loop. Important: The correct positioning is
Step 6
dictated by the button. Thread the cover into place there. Fasten the
cover with the four screws and put the rubber pads back in place.
completely. If the loop is in a horizontal position, the shelf must
be gently lifted manually.
photo). When the inlay has reached approximately a 45° angle it
can be carefully pulled out.
out.
Inwall-Mounting with flush mounting box
red line).
