Installation

Use the corresponding MountingSet to install your square. All MountingSets come with
specific mounting instructions.

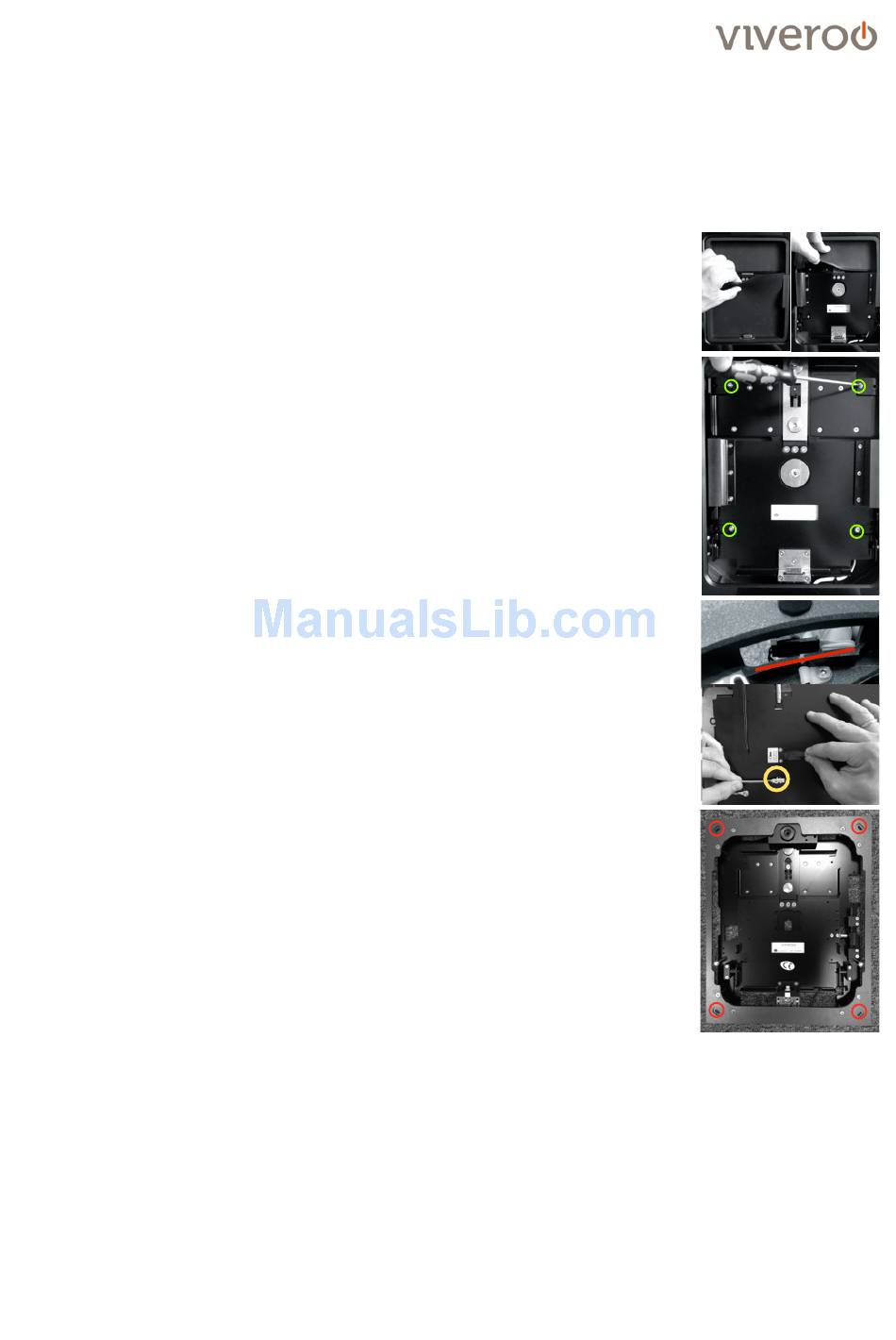

Step 1 Carefully remove the lower rubber pad first and then the upper
rubber pad.
Proceed as follows:
- Open the iPad resting shelf by pressing the button down
- Lift the lower rubber pad starting from the center of the square
- Close the resting shelf and gently pull the upper rubber cushion
Step 2 Carefully remove the four screws on the cover (see photo - green).
! IMPORTANT: Hold cover tightly when removing the final screw to
avoid damage from falling down.
Step 3 Carefully remove the cover by lifting it towards you and place the
cover in a safe spot.
Plug the connecting cable from the MountingSet into the square
Step 4
plug contact.
! WARNING: When inserting the square, make sure that the
connecting cable is not pinched or pulled, as this may damage the
cable.
! WARNING: If a power supply is located close to the square, please
connect the protective grounding wire (yellow) to the protective
conductor of the power supply. (for example InWall MountingSet)
Step 5 The various fastening points for the square are easily identifiable
(red). Using the screws included in the MountingSet, fasten the
square.
! IMPORTANT: Please follow the instructions included with the
MountingSet.
Step 6 Place the cover on the square. The correct positioning is dictated
by the button. Thread the cover into place there. Fasten the cover
with the four screws and put the rubber pads back in place.
completely. If the square is in a horizontal position, the shelf
must be gently lifted manually.
(see photo). When the inlay has reached approximately a 45°
angle it can be carefully pulled out.
out.
