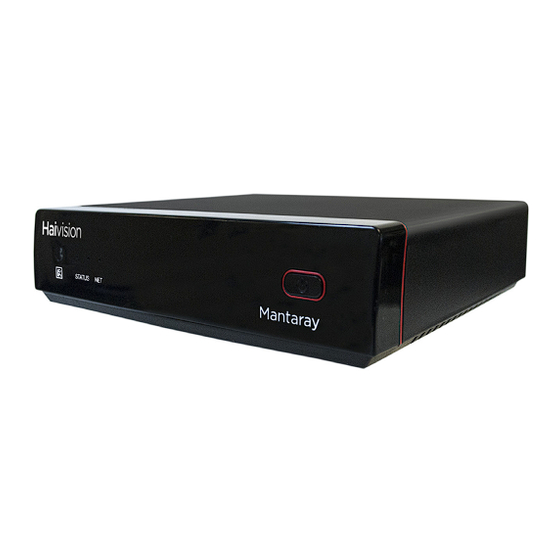

Mantaray
Mantaray is a compact set-top box (STB) that delivers reliable, secure, high-definition (HD) video to displays from
live and scheduled sources, for Furnace end-to-end IPTV systems.
When you connect a Mantaray STB to your network, you need to register it as a device in the Furnace domain.
This is done from the Mantaray using the STB Settings application. Once the connection is established, you can
manage the STB centrally along with other Mantaray STBs from the Furnace Admin Web portal, using the VF
Mantaray Manager module.
This Quick Start Guide summarizes the basic steps required to set up, register, and configure your Mantaray and
get started viewing video. Please refer to the Mantaray Administrator's Guide for detailed information. You may
download the Administrator's Guide, Release Notes and other relevant documentation through our Download
Center at:
http://www.haivision.com/download-center/

Physical Installation

1.
Unpack the box. [See Important Notice for list of contents.]
2.
Visually inspect the package contents for any evidence of shipping damage.
3.
Place the Mantaray on a flat surface near the display, making sure nothing is blocking the signal from the
remote control to the STB.
4.
Connect the LAN port on the STB to the IP network using an Ethernet cable (type Cat 5 or higher).
HVS-ID-QS-MANTA-103, Issue 01
™
v1.0.3 Quick Start Guide

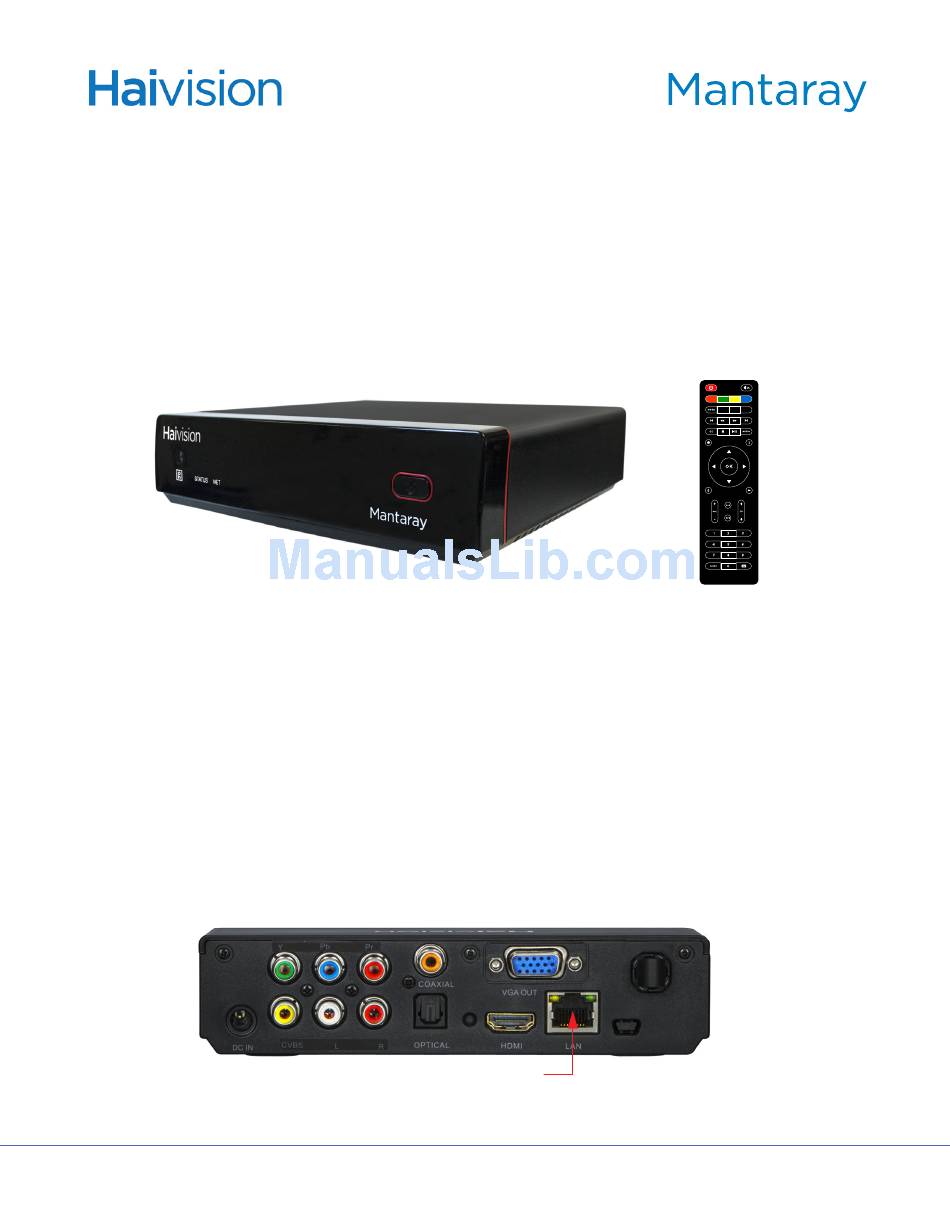

Connect Ethernet cable here
HVS-ID-QS-MANTA-103, Issue 01
Page 1 of 8
