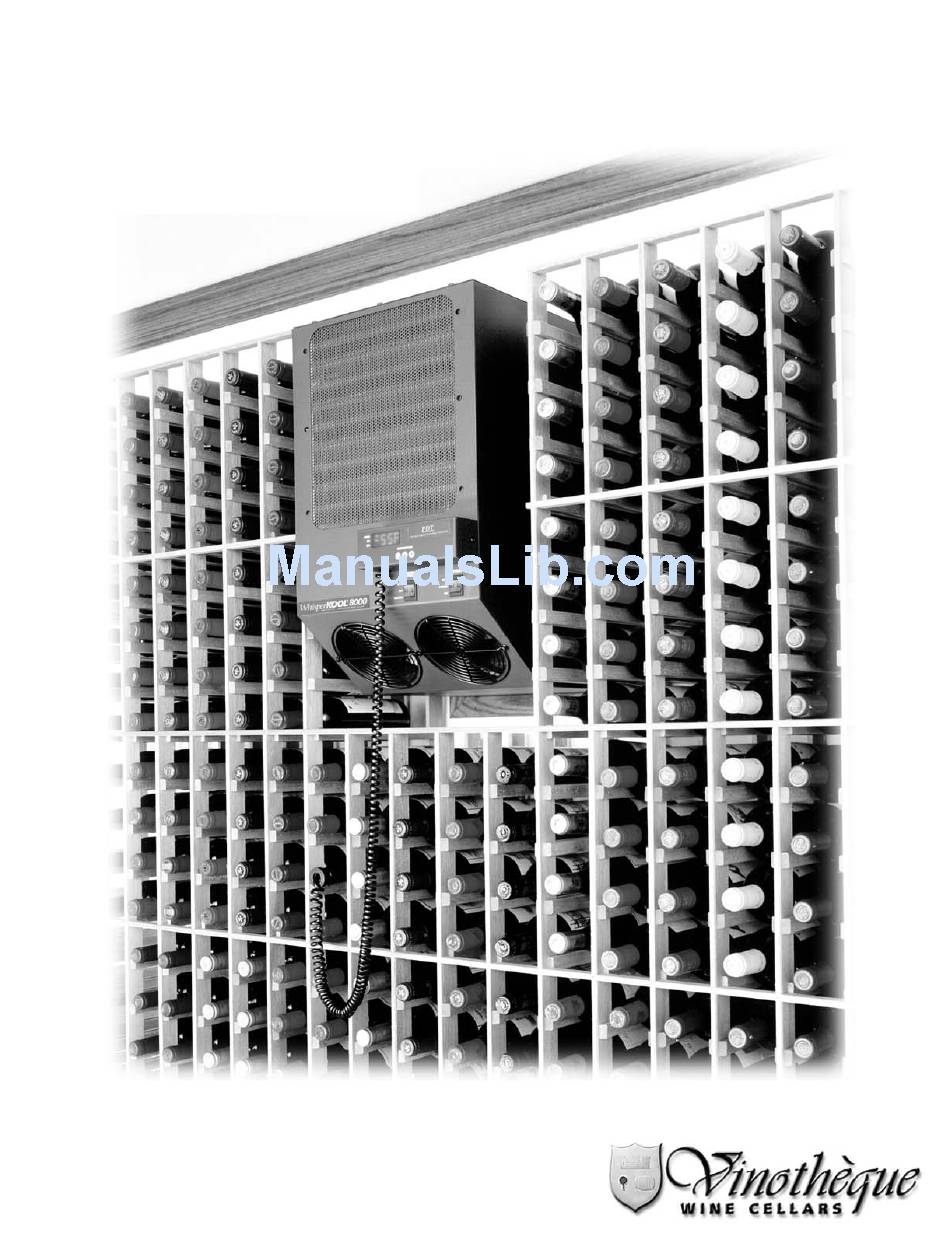

- Page 1 ® WhisperKOOL Owner’s Manual Protecting Your Investment In Fine Wines...
- Page 2 Vinothèque Wine Cellars reserves the right to make corrections or improvements to the information provided and to the related hardware at any time, without notice. Vinothèque, and WhisperKOOL are registered trademarks, and ECE is a trademark of Vinothèque Wine Cellars. All rights reserved.
-
Page 3: Table Of Contents
... . . How Does the WhisperKOOL System Work? ..... -
Page 4: Introduction
This is achieved by gently cooling rather than by quick-chilling. • Temperature Setting: The WhisperKOOL unit can be set at any temperature within the acceptable wine-aging range of 50°F -to- 70°F. It is designed to cool 30°F cooler than the ambient temperature of the space it is exhausting to. -
Page 5: Receiving And Unpacking
Please leave the WhisperKOOL System in its original box until you are ready for installation. This will allow you to move the product safely without damaging it. When you are ready to remove the product from the box, see Installation on page 7. -
Page 6: Preparing The Wine Cellar
PREPARING THE WINE CELLAR The performance and life of your WhisperKOOL System are contingent upon the steps you take in preparing the wine cellar. It is highly recommended that you obtain the assistance of a wine storage professional. Wine storage professionals work with licensed contractors, refrigeration technicians, and racking companies to build well-insulated, beautiful, and protective wine cellars. -
Page 7: Mounting The Unit
In cases where glass doors are used and the room size is close to the recommended unit size, the next larger size WhisperKOOL should be used. This will compensate for the insulation loss due to the inefficient door. -
Page 8: Ventilation
Rear of WhisperKOOL exhaust area Ambient Temperature Factor The cooling system has the ability to cool a maximum of 30°F below the ambient temperature in the room it is exhausting to. -
Page 9: Installation
WhisperKOOL unit into. As with any sensitive electrical equipment, the WhisperKOOL unit’s circuitry may be damaged by power surges and spikes. Power surges and spikes are not covered by the WhisperKOOL warranty. Do not use a Ground Fault Interrupter (GFI) with this product. - Page 10 Locate the by-pass plug and insert it into the thermostat plug, located Test Plug on the front of the WhisperKOOL System. Next, plug the system into a live electrical outlet and turn the unit on. The system Before installation, use the by-pass test plug to test the unit.
-
Page 11: Placement Of Unit
WhisperKOOL System (see covered in order to avoid live electrical illustration). Seal all cracks and gaps charge. around the WhisperKOOL unit to prevent air leakage. If you use molding, it should be attached to the walls, never to the WhisperKOOL unit itself. -
Page 12: Using The Whisperkool System
USING THE WHISPERKOOL SYSTEM Drain Line Power Switch All units come with a drain line for The new series WhisperKOOL units come additional removal excessive equipped with an On/Off switch. The condensate. This is a back up system to On/Off switch is simply used when the the Condensate Evaporator. -
Page 13: Liquid Measuring Thermostat System
LIQUID MEASURING THERMOSTAT SYSTEM All WhisperKOOL units come equipped To Use the thermostat: with our Precision Digital Technology 1. Locate an empty wine bottle. (PDT/PDT ) liquid temperature measuring thermostat system. This system 2. Fill 3/4 full with room temperature tap incorporates the following advantages: water. -
Page 14: Pdt Jr Operating Instructions
PDT JR OPERATING INSTRUCTIONS Operating Instructions for Vinothèque PDT JR. Thermostat Indicators There are three colored lights on the left side of the thermostat: • PWR (Green) – When this light is on, the unit is powered. • RUN (Yellow) – When this light is on, the compressor is running. -
Page 15: Pdt Operating Instructions
PDT OPERATING INSTRUCTIONS The unit is set at 55°F at the factory. To raise or lower the set temperature, press the set button while at the same time pressing either the arrow up or arrow down button. WINE Temperature Indicator LED Screen Wine Temperature Reading WINE... -
Page 16: Normal Operation
The cooling unit is designed to maintain relative humidity at 50-70%. The WhisperKOOL units do not create humidity. If you live in a dry area of the country you many need to create humidity in the wine cellar. This can be done by introducing a non-heat humidifier, or installing a small fountain within the cellar. -
Page 17: Troubleshooting Guide
Any obstruction to the intake and exhaust ports on either side of the unit will compromise the unit’s ability to cool. Make sure the WhisperKOOL unit fan vents are clear. Check the front and rear intake vents for any possible obstruction. There should be a minimum clearance of three feet directly in front of the intake and exhaust vents. - Page 18 3.) The WhisperKOOL unit is designed to outside the unit rises, the WhisperKOOL cool 30°F cooler than the ambient unit must expend more energy (and will...
- Page 19 If the WhisperKOOL unit cools the room draw the warm air from the higher space without the PDT installed, then the in the cellar.
- Page 20 WhisperKOOL unit is icing up in front, unplug the unit for 24 hours and allow the Please contact Customer Service for ice to melt away. Plug the unit back in and assistance and instructions.
- Page 21 WhisperKOOL unit. In some cases it may not be readily apparent that an additional appliance or electrical device has been installed on the circuit breaker. In...
-
Page 22: Technical Assistance
Friday from 8:00 a.m. to 4:00 p.m. Pacific Standard Time. Please make sure that you have the following information available before you call: • The model and serial number of your WhisperKOOL unit. • Type of thermostat used with your WhisperKOOL. -
Page 23: Warranty Clarification On Whisperkool Product
If a problem arises with your WhisperKOOL is connected to, etc. The majority of the system during the warranty period, you must problems associated with the product are contact Vinothèque Customer Service for... -
Page 24: Warranty Service
the installation instructions and trouble- 2.) In the event that the consumer has received a unit that is operating shooting guide carefully prior to shipping incorrectly, Vinothèque Customer the unit back to the factory for repair. Service must be contacted for Warranty Service warranty coverage. -
Page 25: Limited Warranty
3. FREIGHT:During the first twelve months from the date of purchase, Vinothèque will cover freight for the repair of units under warranty to customers within the continental United WhisperKOOL States. All units must be shipped to the factory. Vinothèque will pay to have the unit shipped back to the customer. - Page 28 1738 East Alpine Avenue Stockton, California 95205 www.vinotheque.com...
