Safco 5291 Assembly Instructions

Sort and count your parts!

PARTS LIST: STARTER UNIT #5291

LETTER
DESCRIPTION
CODE
A
Lower Post (with leveler)
B
Upper Post (with plastic cap)
C
Half-Sleeve
D
Shelf

PARTS LIST: ADD-ON UNIT #5292

LETTER
DESCRIPTION
CODE
A
Lower Post (with leveler)
B
Upper Post (with plastic cap)
C
Half-Sleeve
D
Shelf
E
S-Connecting Hook
When ordering replacement parts,
please specify Black or Gray color.
SHOWN ASSEMBLED:
STARTER UNIT #5291 and
ADD-ON UNIT #5292
1

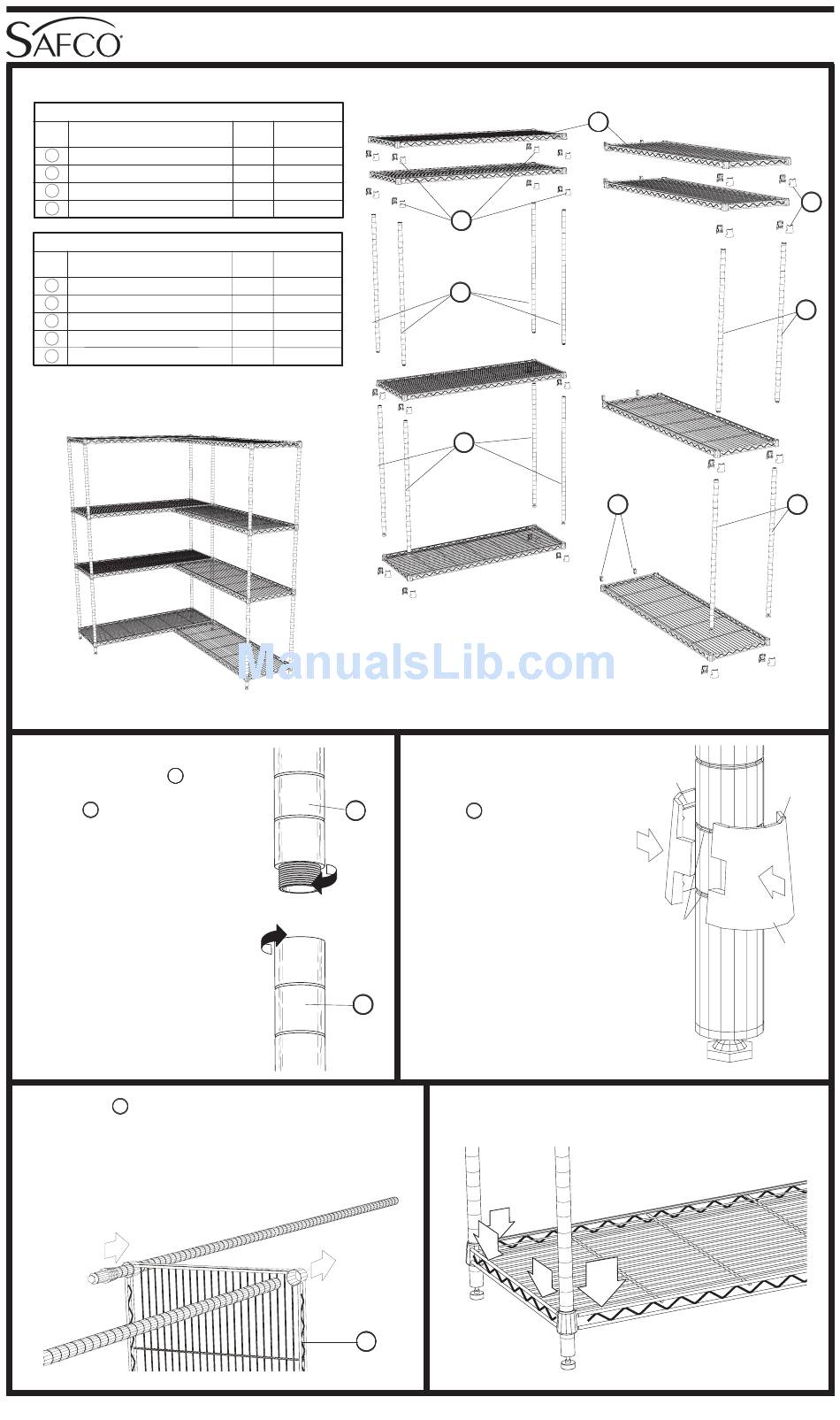

To build the four corner
posts, screw the A Lower
Posts (with levelers) onto
the B Upper Posts (with
plastic caps). Hand
tighten.
3
Stand a D Shelf on end, and from the BOTTOM side
of the shelf (the bottom side is recessed), slide the
TOP end of a post through a corner hole until the half-
sleeves are seated in the corner hole. Repeat with
remaining posts.
5291-37: 1 of 2; Rev. 1; 12/99
Wire Shelving
ASSEMBLY INSTRUCTIONS
QTY. PART NO.
4 5280-07
4 5280-08
32 5280-05
4 5280-03
QTY. PART NO.
2 5280-07
2 5280-08
16 5280-05
4 5280-03
8 5286-11
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
B
A
D
Safco Products Company, New Hope, MN 55428
C
STARTER
UNIT #5291
B
A
(English-speaking operators)
2
Determine the desired
position of the bottom shelf
(only); on each post, place
two C Half-Sleeves around
the post at the correct
position, with the LARGE
ends of the sleeves toward
the BOTTOM of the post and
the ridges inside the sleeves
fitting into the grooves in the
post. Press the two halves
until they snap together.
NOTE: the bottom shelf
must be mounted no more
than 12" from the floor.
4
Set unit upright. Press shelf firmly at each shelf
corner, close to corner holes until firmly seated.
STARTER UNIT MODEL:
ADD-ON UNIT MODEL:
D
ADD-ON
UNIT
#5292
E
RIDGE
GROOVE
5291
5292
C
B
A
SMALL
END
LARGE
END
