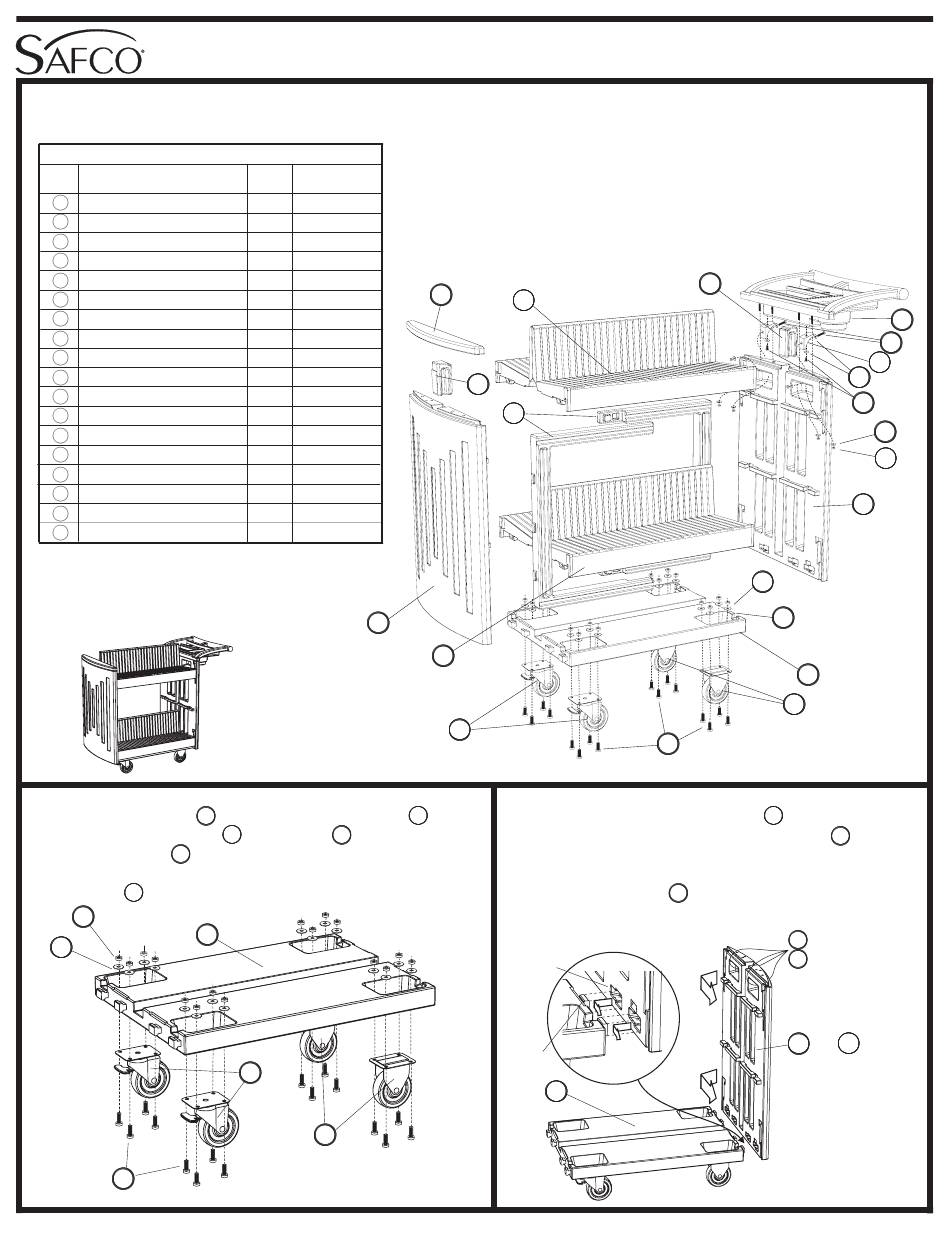

Safco 5332 Assembly Instructions Manual

PARTS LIST
LETTER
DESCRIPTION
CODE
A
Base Plate
B
Swivel Caster
C
Thick Bolt
D
Large Washer
E
Large Nut
F
Fixed Caster
G
End Panel Wih Holes
H
End Panel Without Holes
I
U-Brace
J
Shelf
K
Locking Plug
L
End Cap
M Tray/Handle
N
Small Washer
O
Small Nut
P
Long Thin Bolt
Q
Bracket
R Short Thin Bolt
TOOLS REQUIRED: Socket Wrench with 14mm
socket and 10mm socket (or open end wrenches
of that size), Phillips Screwdriver, Rubber Mallet
(or Hammer with Wood Block)
1
At one end of the A Base Plate, install the two B
Swivel Casters using C Thick Bolts, D Large
Washers, and E Large Nuts. Tighten using a socket
wrench with a 14mm socket. At the other end, install
the two F Fixed Casters in the same manner.
E
D
C
5332-37: 1 of 4; Rev. 1: 10/01
2-Shelf Book Cart
ASSEMBLY INSTRUCTIONS
PART NO.
QTY.
1 5330-07
2 5330-26
16 5330-22
16 5330-21
16 5330-24
2 5330-25
1 5330-11
1 5330-01
2 5330-02
2 5332-03
2 5330-09
1 5330-05
1 5330-06
10 5330-31
6 5330-29
2 5330-23
2 5330-28
2 5330-27
H
ASSEMBLED UNIT
Model 5332
A
B
F
Safco Products Company, New Hope, MN 55428
For questions or concerns, please call
Safco Consumer Hot Line: 1-800-664-0042
available Monday-Friday 8:30 AM to 4:30 PM
(Central Time)
(English-speaking operators)
L
J
K
I
J
B
2
Slide the keyhole slots of the G End Panel With
Holes onto the studs on the end of the A Base
Plate at which the handle will be attached, and
push the End Panel to the right to lock it in place.
Repeat with the H End Panel Without Holes at
the opposite end of the Base Plate.
KEYHOLE
SLOT
STUD
A
MODEL
NUMBER
K
E
D
A
F
C
G has holes here;
H has no holes
G OR
5332
M
P
Q
N
R
N
O
G
H
