Hardware layout and configuration

7 Hardware layout and configuration
Figure 2
board and the modem expansion board. The connection is done through the STMod+
connector.
7.1

Board layouts

There is no LCD with the STM32L496AGI6-based Discovery mother board in this pack. For
mother board detailed description, refer to Discovery kit with STM32L496AG user manual
(UM2160).
8/22
illustrates the connection between the STM32L496AGI6-based Discovery mother

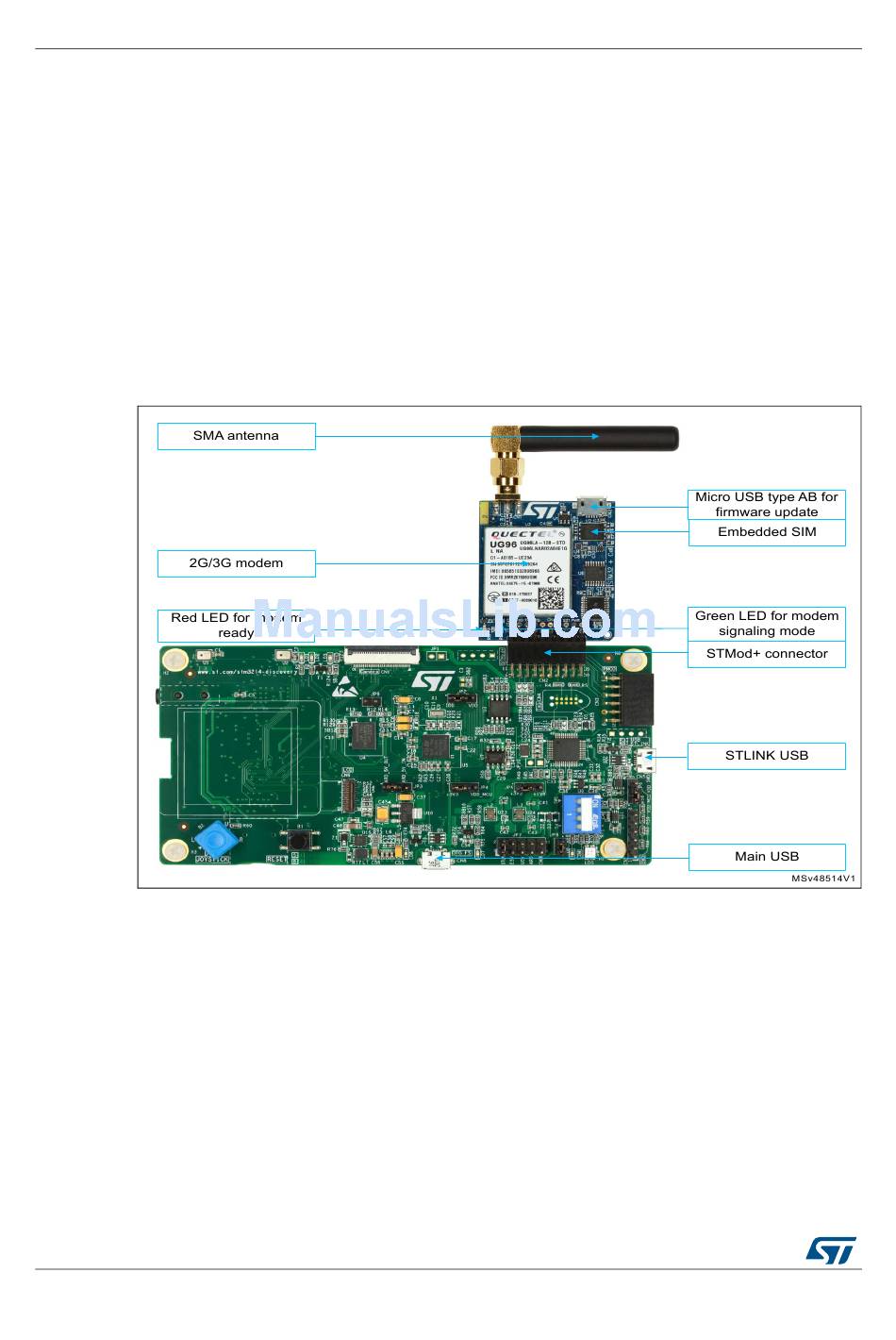

Figure 2. Mother board and expansion 2G/3G modem top view

UM2322 Rev 2
UM2322
