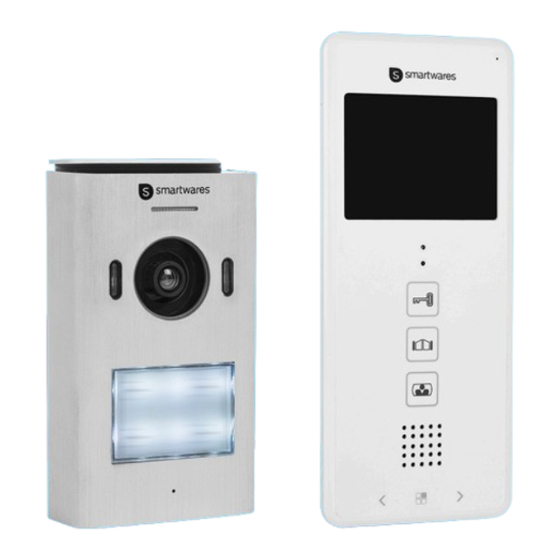

Smartwares DIC-221 series Instruction Manual

Hide thumbs Also See for DIC-221 series:

DIC-221 Intercom Series

Instruction Manual

Table of Contents

Need help?

Do you have a question about the DIC-221 series and is the answer not in the manual?

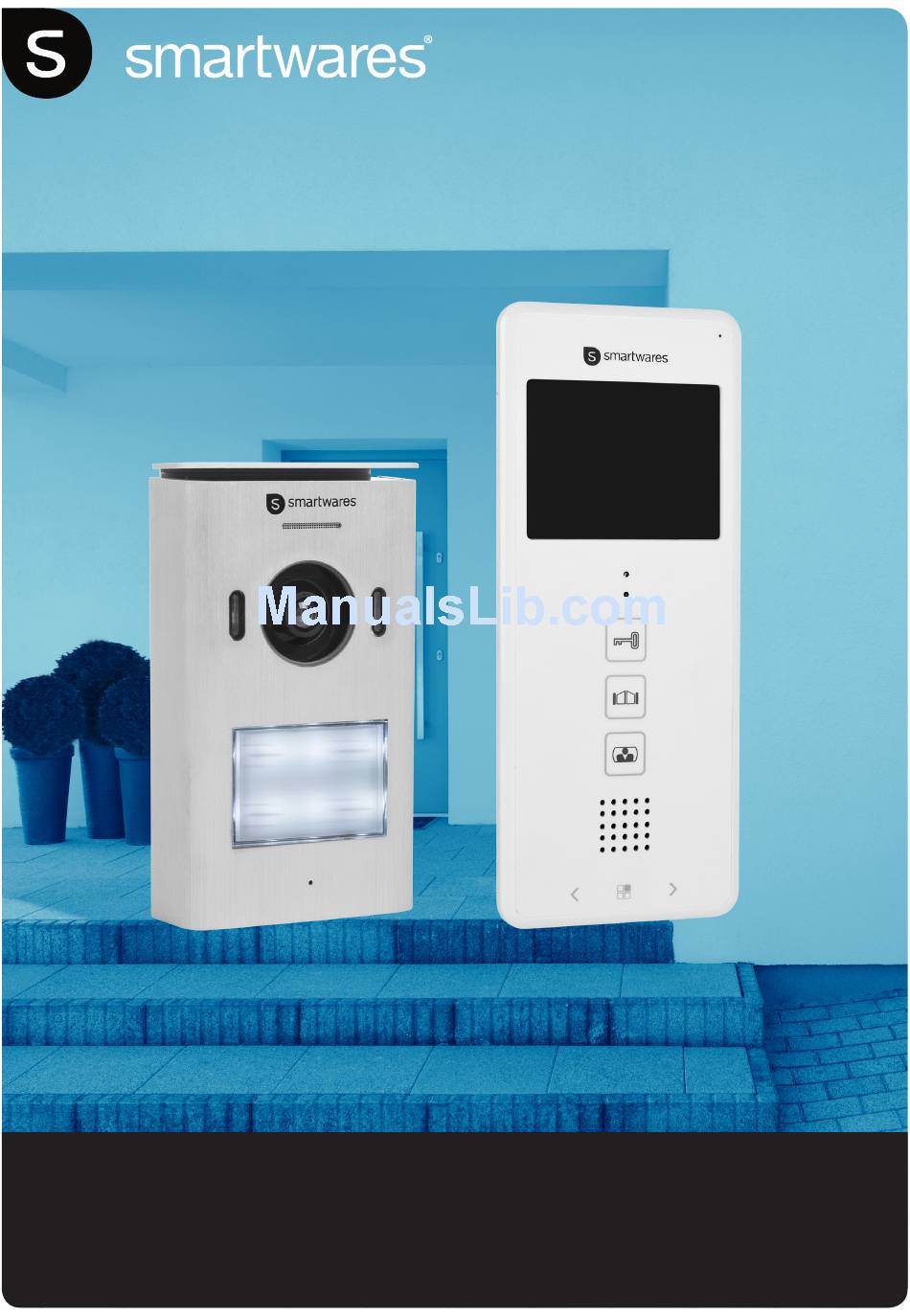

Page 1 DIC-221 Intercom Series Instruction Manual...
Page 2: Product Overview
WARNING PRODUCT OVERVIEW 1. Please read these instructions carefully before installing and using the product. INDOOR MONITOR 2. Do not cut the power supply cable to extend it; the device (transformer) will not work with a longer cable. Do not plug in the device until all the wiring has been finished. INSTALLATION SAFETY Microphone 3.5 inch screen...
Page 3 INSTALLATION - OUTDOOR UNIT INSTALLATION - INDOOR MONITOR When installing the outdoor unit, make sure that the location you wish to install it is dry. It is important that the camera or the electronics do not get wet. 1.Select a suitable location for installation. 1.
Page 4 WIRING Intercom function: When in standby, when a visitor presses the call button on the outdoor unit, the indoor-monitor will chime and you will see a live view of the visitor on the screen. Press the intercom button to speak to the visitor. Monitor function: Press this button on the indoor-monitor unit to see a live view of the outdoor unit camera.
Page 5: Technical Specification
TECHNICAL SPECIFICATION INDOOR MONITOR Supply Voltage 15V 1A Screen size 3.5” inch Color configuration R.G.B.delta Video System PAL/NTSC Effective Pixels 320x240 Consumption current 300mA±10mA Operation temperature -10˚C - +50˚C Operation Humidity 85%(Max) OUTDOOR UNIT Imaging sensor type 1/4” CMOS View angle 70˚...
