Smartwares VD36W Manual

VD36W

WARNING

1. Please read these instructions carefully before installing and using the product.
2. Do not cut the power supply cable to extend it; the transformer will not operate
with a longer cable.
Do not plug in the transformer until all the wiring has been finished.
3. This product is not a toy. Keep it out of reach of children.
4. Do not operate electrically powered products in explosive atmospheres, such
as in the presence of flammable liquids, gases, or dust. Electrically powered
products create sparks which may ignite the dust or fumes.
5. The warnings, precautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied by the operator.
6. Do not expose the Power Adapter of this product to rain or wet conditions.
Water entering the Power Adapter will increase the risk of electric shock.
7. Do not abuse the Power Cord. Never use the cord for unplugging the plug from
the outlet. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
8. The adapter must match the outlet. Never modify the plug in any way.
Unmodified plugs and matching outlets will reduce risk of electric shock.
13-20mm

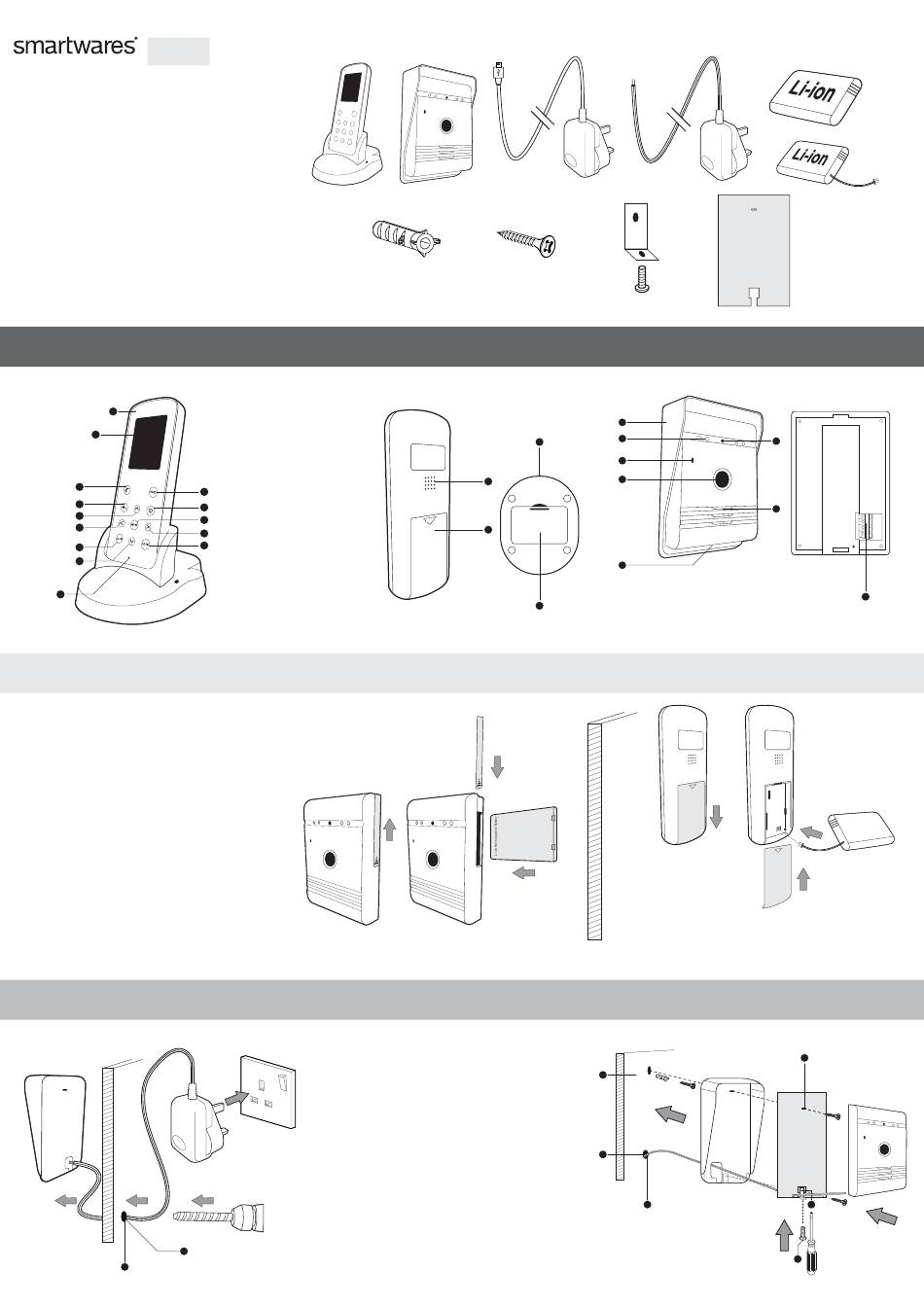

Key Features

1
2
3
4
5
6
7
8
9
Install & Setup
Always test the product in location before installation. Be aware that
different materials in between the Outdoor Intercom and Indoor Monitor
will affect the operating performance of the product. Follow the Wiring
and pairing guides to test the product.
Install the Outdoor Intercom in a dry location if possible.
Mount the Intercom at a suitable height and position to allow the camera
to see the visitor.

Battery Installation:

Outdoor Intercom
1. On the side of the Outdoor Intercom there is a battery compartment.
Slide the cover open by pushing it up.
2. Insert the battery pack into the holder making sure it is inserted
correctly with the "Li-ion rechargeable battery" text facing the front,
please see image.
3. Slide the cover down and "Click" into position.

Wall Mounting

2
3

Included in the pack:

Indoor Monitor
1. Charging LED
10
2. Screen
11
3. Intercom button
12
4. Exit Button
13 5. Up button
6. Left button
14
7. Monitor / Delete button
8. Down button
9. Microphone
10. Unlock button
11. Power on/off
12. Photo/confirm button
13. Right button
14. Playback/Set button
Outdoor Intercom
1. Select the location for the Outdoor Intercom and using the rain cover as
a template mark and drill the holes to allow the supplied wall plugs to be
fitted. (fig 1)
2. Also mark and drill the hole required for the power cables to go through
the wall. (fig 2)
3. Push the power cables from the inside of the wall so they are visible on
the outside. (fig 3)
4. Stick the sealing pad on the inside of the rain cover. (fig 4)
5. Secure the rain cover into position using the fixings supplied.
Pay attention to the angle bracket (fig 5) on the bottom fixing making
sure the power cables are pushed through the back plate seal hole on
the bottom right.
6. Secure the power cables into the Intercom as per the wiring diagrams below.
7. Insert the intercom top first into the rain cover and put the bottom into
position over the angle bracket.
8. Secure the intercom into position on the rain cover using the securing
screw. (fig 6)
x2 x2
17
15
16
15. Speaker
18
16. Battery box
17. DC in
18. Outdoor battery charger
1
2
6
3
4
7
5
Outdoor Intercom
1. Rain cover 5. Light sensor
2. Night vision light 6. Camera lens
3. Microphone 7. Speaker
4. Call button 8. Connector box
Indoor Monitor
1. On the back of the Indoor Monitor open the battery cover (16)
by sliding it down.
2. Insert the battery pack into the holder making sure it is plugged
in correctly. Please see image.
3. Slide the battery cover up and "Click" in position.
1
2
3
8
4
5
6
