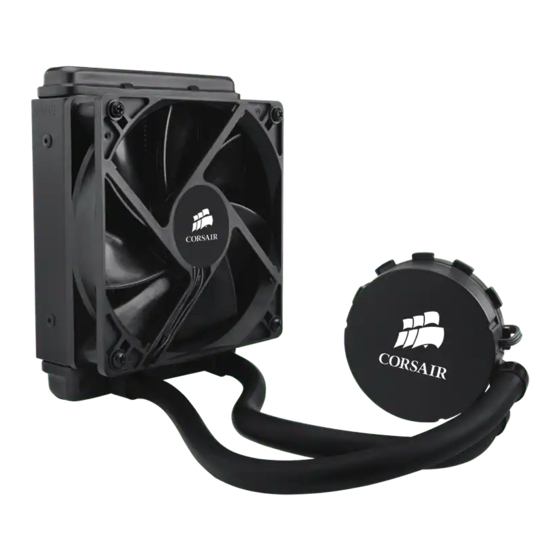

Corsair H55 Quick Start Manual

Liquid cpu cooling upgrade kit
Hide thumbs Also See for H55:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Quick Start Manual
Enlarged version
TM
QUICK START GUIDE
Note: Most newer PC cases include a CPU cutout to allow access to the
bottom of the motherboard. If your case does not include a cutout, you will
LIQUID CPU COOLING UPGRADE KIT
need to remove your motherboard from the case before installation.

Advertisement

loading
Need help?

Need help?

Do you have a question about the H55 and is the answer not in the manual?

Questions and answers

Related Manuals for Corsair H55

Summary of Contents for Corsair H55

  • Page 1 QUICK START GUIDE Note: Most newer PC cases include a CPU cutout to allow access to the bottom of the motherboard. If your case does not include a cutout, you will LIQUID CPU COOLING UPGRADE KIT need to remove your motherboard from the case before installation.

  • Page 2: Included Hardware

    Included Hardware Highlighted parts for Intel installation only Matériel inclus • Mitgelieferte Montageteile • Hardware incluido 包含的硬件 x4 • INTEL 1150/1155/1156/1366 INTEL LGA 1150/1155/1156/1366 INTEL 1150/1155/1156/1366 & AMD AM2/AM3 x4 • INTEL LGA 2011 AMD AM2/AM3 AMD AM2/AM3 AMD AM2/AM3 AMD AM2/AM3...
  • Page 3 Prepare Retention Ring for Installation Assemble and Install Intel Backplate Assemble the retention ring. For Intel 1366/2011 Socket Insert the pins (I) into the appropriate location 1366 Follow Fig (A). For Intel 1150/1155/1156 Socket follow Fig (B) (LGA 1150/1155/1156/1366) marked on the backplate. Install and remove the adhesive backing (Figure A).
  • Page 4 Install Assembled Intel Retention Ring and Clip onto Pump Head Install the Radiator Install the assembled retention ring and retention clip onto pump head. A i r fl Attach the radiator and fans as shown. For the best cooling performance we recommend mounting the fans as an air intake.
  • Page 5 Install Assembled Pump Head onto CPU Connect Power to Fan and Pump 4-PIN 3-PIN Mount the pump head onto the CPU as shown. Partially tighten each screw, rotating in the order shown, and repeat until each screw is fully tightened. Do not overtighten.
  • Page 6 Included Hardware Prepare Retention Ring for Installation Assemble the retention ring. For AMD AM2/AM3 Socket follow Figure A. INTEL 1150/1155/1156/1366 INTEL 1150/1155/1156/1366 INTEL 1150/1155/1156/1366 INTEL 1150/1155/1156/1366 x4 • INTEL 1150/1155/1156/1366 & AMD AM2/AM3 Fig. A AMD AM2/AM3 INTEL/AMD x4 • INTEL LGA 2011 x4 •...
  • Page 7 Assemble and Install AMD Backplate Install Assembled AMD Retention Ring and Clip onto Pump Head Insert the pins (I) into the AMD mounting backplate. Install and remove the adhesive backing (Figure A). Install the assembled backplate (Figure B). Install the assembled retention ring and retention clip Note: The stock AMD mounting bracket may need to be onto pump head.
  • Page 8 Install the Radiator Install Assembled Pump Head onto CPU Mount the pump head onto the CPU as shown. Partially tighten each screw, rotating in the order shown, and repeat until each screw is fully tightened. Do not overtighten. A i r fl Attach the radiator and fans as shown.
  • Page 9 An arrow located on the side of the fan indicates the direction of air flow. 2. Can I reuse the pre-applied thermal paste on the H55 for a re-installation? Re-installation of the H55 cooler will require you clean o the pre-applied thermal paste and apply an aftermarket paste. 4-PIN 3-PIN 3.
