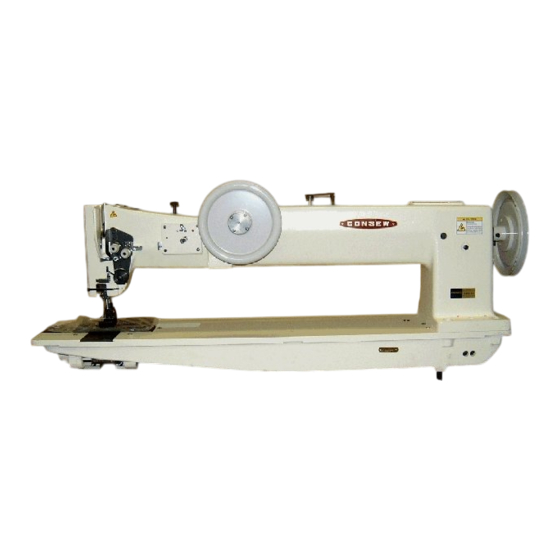

- Page 1 744R10-1 745R10-1...
-
Page 13: Parts Manual
Parts Manual... - Page 15 1. Casting components Line Part Number Description 745R10 744R10 Notes 700‐1001 Foot lifter lifting handle ‐ ‐ 100‐1091 Screw ‐ ‐ SM11/64"X40X6 700‐1002 Collar ‐ ‐ 100‐1129 Screw ‐ ‐ SM11/64"X40X5 700‐1003 Spring ‐ ‐ 700‐1004 Collar ‐ ‐ 200‐1166 Screw ‐ ‐ SM1/8"X44X5 700‐1005 Foot lifter lifting latch ‐...
- Page 17 1. Casting components Line Part Number Description 745R10 744R10 Notes 700‐1047 700‐1048 Thread guide 700‐1049 Screw SM9/64"X40X4.5 700‐1050 Needle plate ‐ 700‐1051 Needle plate ‐ 200‐1028 Screw SM11/64"X40X8.3 200‐1029 Screw ‐ SM9/64"X40X5.4 300‐1012 ‐ 700‐1052 Slide plate (L) ‐ 700‐1053 Slide plate (L) ‐ 700‐1054 Slide plate (R ) ‐ 700‐1055 Slide plate (R ) ‐ 700‐1056 Screw 700‐1057...
- Page 19 2. Upper shaft and thread take‐up components No . Part Number Description 745R10 744R10 Notes 700‐1093 Upper shaft ‐ ‐ 700‐1094 Upper shaft ‐ ‐ 700‐1095 Upper shaft 700‐1096 Thread take‐up lever 700‐1097 Hinge stud 700‐1098 Oil wick L=200mm 700‐1099 Screw SM17/64"X32X20 700‐1100 Rubber plug 700‐1101 Take‐up lever driving stud 700‐1102 Oil wick L=20mm 700‐1103 Needle bar connecting link 700‐1104 Needle bar crank 700‐1105 Screw SM9/32"X28 700‐1106 Screw...
- Page 21 3. Needle bar rocking frame and upper feed components No . Part Number Description 745R10 744R10 Notes 700‐1138 Needle bar rocking frame ‐ 700‐1139 Needle bar rocking frame ‐ 700‐1140 Stud 700‐1141 Oil wick L=30mm 700‐1142 Screw SM17/64"X32X19.5 700‐1143 Needle bar connector 700‐1144 Oil wick L=40mm 700‐1145 Screw SM9/64"X40X9 700‐1146 Needle bar ‐ 700‐1147 Needle bar ‐ 700‐1148 Needle DD‐H14#25 700‐1149 Screw SM3/16"X32X6 700‐1150 Position bracket...
-
Page 23: Feed Components
4. Feed components No . Part Number Description 745R10 744R10 Notes 700‐1201 Feed driving eccentric 700‐1202 Flange 700‐1203 Screw SM3/16"X32X10.5 700‐1204 Screw SM3/16"X32X10.5 700‐1205 Friction plate 700‐1206 Pinch screw SM3/16"X40X11 700‐1207 Lining metal 100‐1091 Screw SM11/64"X40X6 700‐1208 Adjusting disc 700‐1209 Spring 700‐1210 Collar 700‐1114 Screw SM1/4"X32X8 700‐1211 Screw SM1/4"X32X5.5 700‐1212 Feed regulating stud 700‐1213 Spring... - Page 25 4. Feed components No . Part Number Description 745R10 744R10 Notes 700‐1242 Connecting link 700‐1243 SM15/64"X28 700‐1244 Hinge screw 700‐1245 Feed crank 700‐1246 Screw M6X1X20 700‐1247 Spring 700‐1248 Spring holder 700‐1249 SM5/16"X24 700‐1250 Eccentric cam 700‐1251 Handle 700‐1252 Reverse stitch lever 700‐1253 SM5/16"X28 700‐1254 Bush 700‐1255 Stop lever 700‐1256 700‐1257 Spring hook 700‐1258 Shaft 700‐1259 Washer...
- Page 27 5. Hook components No . Part Number Description 745R10 744R10 Notes 700‐1269 Oil gauge 700‐1270 Oil gauge guide 700‐1271 Bobbin case opener lever 700‐1272 Hinge stud 700‐1273 Oil wick ɸ5x10 700‐1274 Oil tube 700‐1275 Bobbin case opener 400‐1305 Washer GB/T848 3 700‐1276 Screw M3X0.5X6 700‐1277 Bobbin 700‐1278 Hook 700‐1279 Bobbin case opener link 700‐1280 Roller 700‐1281 Bushing 700‐1282 Screw SM7/32"X32x5.5 700‐1283 Bushing (L)
- Page 29 6. Thread tension components No . Part Number Description 745R10 744R10 Notes 700‐1320 Tension bracket CPL. 700‐1321 Tension bracket CPL. ‐ 700‐1322 Tension release lever 700‐1323 Tension release lever ‐ 700‐1324 Screw SM9/64"X40X2.5 700‐1325 Covering plate 700‐1326 Screw SM9/64"X40X6 700‐1327 Thread controller spring stop 700‐1328 Thread controller spring stop ‐ 700‐1329 Thread guide 700‐1330 Screw SM9/64"X40X4 700‐1331 Thread guide (lower) 700‐1332 Thread guide (lower) ‐ 700‐1333 SM1/8"X40 700‐1334...
- Page 31 7. Accessories No . Part Number Description 745R10 744R10 Notes 100‐1299 Parts bag 700‐1277 Bobbin 100‐1302 Screwdriver (big) 100‐1301 Screwdriver (middle) 100‐1300 Screwdriver (small) 700‐1380 Screwdriver (middle) 700‐1381 Allen key S=1/16" 700‐1382 Allen key S=2mm 200‐1362 Allen key S=2.5mm 200‐1361 Allen key S=3mm 700‐1383 Allen key S=4mm 700‐1384 Allen key S=5mm 700‐1385 Wrench 10X11 700‐1386 Drip Pan ‐...
- Page 33 8.‐AL(N) components No . Part Number Description Notes 700‐1401 Cylinder ACQ50X60 700‐1402 Screw 700‐1403 Joint APH6‐02 700‐1404 Support 700‐1198 Fixed pin 700‐1405 Screw GB/T70.1 M5X14 700‐1406 Washer GB93.5 700‐1407 Screw GB/T70.1 M8X25 700‐1408 Washer GB93 8 700‐1409 Switch wire L=140MM 700‐1410 Fixed plate 700‐1411 Button 700‐1412 Cover 700‐1413 Plug 700‐1414 Cover (1) 700‐1415...
