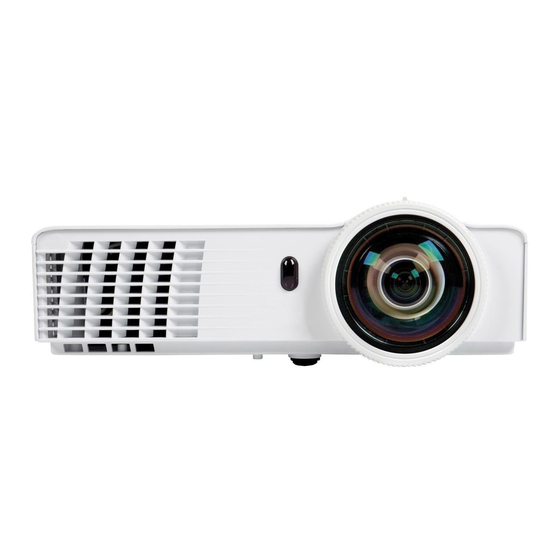

- Page 1 InFocus INV30(V30) projector User’s guide © 2017 InFocus Technologies. All rights reserved. 1025289 Rev 01...
-
Page 2: Table Of Contents
SAFETY WARNINGS, CAUTIONS AND IMPORTANT INFORMATION ......3 Precautions ..............................................3 Additional maintenance instructions ......................................3 EU STANDARDS ......................3 INFOCUS INV30(V30) PROJECTOR PRODUCT FEATURES ........3 PROJECTOR PACKAGE OVERVIEW ................4 PRODUCT OVERVIEW ....................4 Main unit ............................................... 4 Connections .............................................. -
Page 3: Safety Warnings, Cautions And Important Information
Safety warnings, cautions and important information Follow all the warnings, precautions and maintenance instructions in this document and on the InFocus Support web site InFocus.com/Support Precautions Do not look into the projector’s lens when the lamp is on. The bright light may damage your eyes. -
Page 4: Projector Package Overview
Projector package overview This projector comes with all the items shown below. Check to make sure your package is complete. Contact your dealer immediately if anything is missing. Projector Remote control Documentation Power Cord Product overview Main unit Part Part Lamp indicator light Lens Diagnostic indicator light... -
Page 5: Connections
Connections Connector Connector 3.5 mm phone jack audio variable output HDMI in DB15F RGB VGA video input (VGA In) DB15F RGB VGA video output (VGA Out) DB9F RS-232 control port DB15F RGB VGA video input (VGA In) Power RCA analog composite video (yellow) RJ45 (Cat 5) 3.5 mm phone jack audio input (composite video) USB Mini-B (for service access only) -
Page 6: Remote Control
Remote control Function Description Input Select a video and audio input source on the projector and the associated USB input source on the extended control panel. Menu Show or hide the projector menus. Change the menu selections and adjustments. (Left), (Right), (Up) and (Down) -
Page 7: Installation
Insert the new battery in the battery holder. Be sure to align the positive and negative terminals of the battery properly. Insert the battery holder in the remote control. Installation Turning on the projector The first time you use the projector, you can select your preferred language from the main menu after the startup screen appears. If you connect multiple sources at the same time, press Input on the remote control to switch between inputs. -
Page 8: Status Lights
Status lights Use the following table to determine the status of your projector Projector Status Temperature indicator Power indicator light Lamp indicator light light Solid red Standby Flashing green Powering up Solid green Flashing red Cooling Alternating green and red Solid red Solid red Downloading firmware... -
Page 9: Position Menu
Position menu Setting Description Setting Description Aspect Ratio Sets the image output to Auto, 4:3, 16:9 and 16:10. V. Position Determined by VGA source input only. Phase Determined by VGA source input only. Digital Zoom Sets the image zoom from 0 to 10. Clock Determined by VGA source input only. -
Page 10: Audio Menu
Audio menu Setting Description Mutes the projector’s audio output. Mute Adjusts the projector’s volume from 0 to 32. Volume In Standby Mode Turns on or off audio output when the projector is in Standby mode. Options menu Setting Description Setting Description Auto Source Turns on or off automatically switching to a video... -
Page 11: Lan Menu
Lamp Settings Displays current lamp hours, turns on or off the Lamp Life Reminder, sets lamp power mode and resets lamp hours LAN menu Setting Description Setting Description Turns on or off the network’s Dynamic DHCP Shows the current DNS, can be Host Configuration Protocol (DHCP) changed with DHCP set to Off IP Address... -
Page 12: Appendix
Pin configuration on the projector’s RS-232 connector The following table provides the pin configuration on the InFocus INV30(V30) projector. This pin configuration follows a three-wire connection so that a straight- through male-to-female RS-232 serial cable connects to the projector’s serial interface in the following arrangement: Projector’s female RS-232 connector... - Page 13 13 | 1025289 Rev 01...
- Page 14 14 | 1025289 Rev 01...
-
Page 15: Clean Filters Note Inv30(V30)
A message will appear reminding you to clean the filters. When cleaning the air filters: Use compressed air to clean the filters. You can also order replacement air filters (part no. SP.74013GC01) from your authorized InFocus reseller. It contains two replacement air filters. To clean the air filters Locate the two filters on each side on the rear of the projector. -
Page 16: Compliance
13190 SW 68th Parkway, #200, Portland OR 97223 USA 1 503 207-4700 Warranty Product warranty is governed by the terms and conditions of InFocus’s Limited Equipment Warranty that shipped with the InFocus product at the time of purchase. Registration To help us serve you, register at InFocus.com/Register. -
Page 17: Inv30(V30) Specification
INV30(V30) Specification Brightness (Standard) 3000 lumens in 240 W mode at a CCT of 6500 K by the IEC method Brightness (Eco 1) 2250 lumens in 190 W mode at a CCT of 6500 K by the IEC method Native resolution XGA 1024 ×...
