office sensor advanced
grouping SNS200
Quick Installation Guide

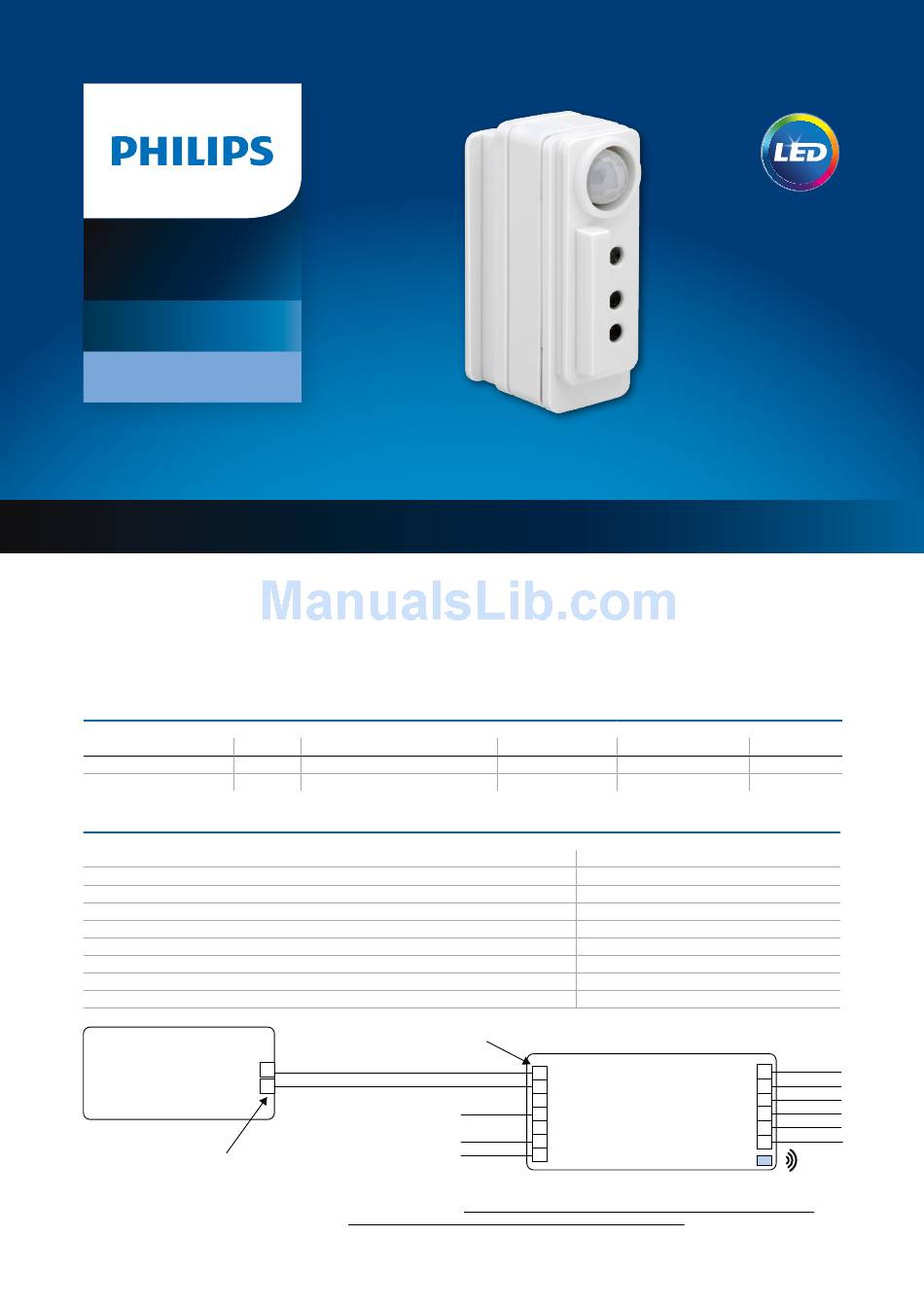

EasyAir office sensor
advanced grouping SNS200
Ordering data
Commercial product name
Color
EasyAir SNS200/w
White
EasyAir SNS200/g
Grey
Compatible LED Drivers
Logistic code 12NC
929001516306
929001505006
929001540406
929001540506
929001540606
929001540706
929001540806
929001540906
EASYAIR
Connectors
(non-polarized)
January 2018
Description
Office Sensor Advanced Grouping
Office Sensor Advanced Grouping
Connectors
SR
SR
GROUND
Use 0.75 mm
2
solid copper wire,
rated >= 600 V / 90 °C.
NEUTRAL
Strip wire to 8 mm.
LINE
1.
View limited warranty at: http://images.philips.com/is/content/PhilipsConsumer/PDFDownloads/Global/
ODLI20150105_001-UPD-en_GB-152795-PHI-component_warranty-HR.PDF
EOC
12NC
8718696 698945 00
929000 766 803
8718696 712412 00
929001 560 703
Description
Xitanium 36W 0.3-1A 54V SR 230V
Xitanium 75W 0.7-2.0A 54V SR 230V
Xitanium 35W 0.08-0.35A 150 V SR 230V
Xitanium 60W 0.08-0.35A 220 V SR 230V
Xitanium 60W 0.08-0.35A 300 V SR 230V
Xitanium 100W 0.25-0.7A 220 V SR 230V
Xitanium 100W 0.15-0.5A 300 V SR 230V iXt
Xitanium 100W 0.2-0.7A 300 V SR 230V iXt
SR-
SR+
XITANIUM SR
NC
LED DRIVER
NC
Carton Quantity
50 pcs
50 pcs
LED+
LED+
LED-
LED-
LEDset
GNDset
NFC ANTENNA
