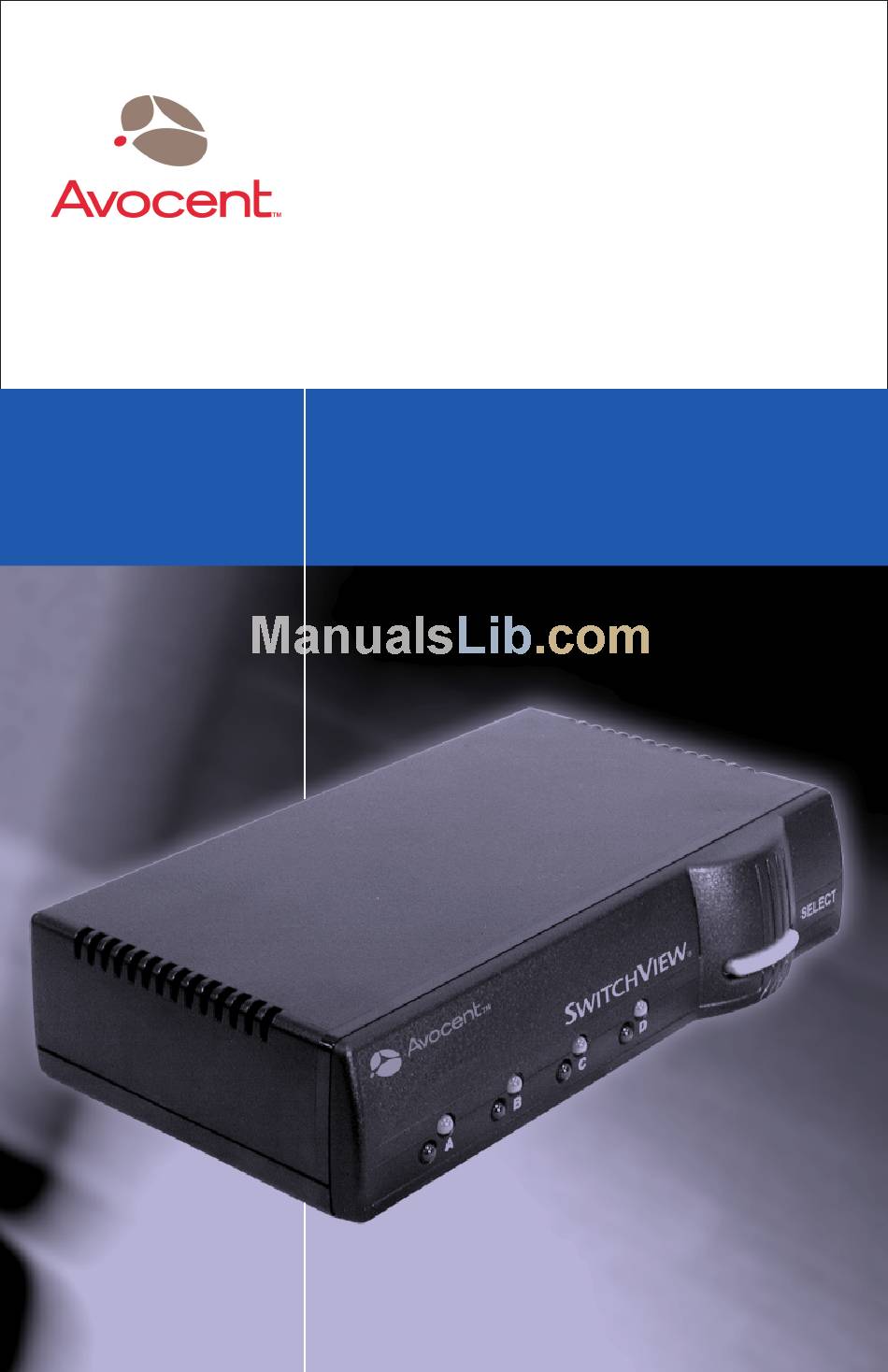

  • Page 1 SwitchView ® Installer/User Guide...
  • Page 2 ©2000 Avocent Corporation. All rights reserved. Avocent and the Avocent logo are trademarks or registered trademarks of Avocent Corporation. SwitchView is a registered trademark of Cybex Computer Products Corporation. All other marks are the property of their respective owners.

  • Page 3: Product Overview

    Wheel, Logitech Trackman Marble Wheel, Logitech Trackman Marble FX, Microsoft Explorer mouse and the Microsoft IntelliMouse family. Standard cables - use either Avocent-supplied or standard straight-through cables to attach comput- ers to the SwitchView unit. Built-in scanning feature - scan through all of your attached PCs automatically.

  • Page 4: Supported Hardware

    SwitchView unit or other attached PCs. Status LEDs - two LEDs per computer give you constant readings on the status of your Switch- View unit. Monitor Stand - The SwitchView DT may also be used as a monitor stand, allowing you to save valuable desktop space.

  • Page 5: Installation

    Basic Install Before you install In order to connect your PCs to the SwitchView, you will need the appropriate connecting cables. We recommend these Avocent cable kits: For PS/2 PSs: CPS2-6A The SwitchView also accepts standard straight-through cables for these connections.

  • Page 6: Connecting Your Computers

    Plug the video cable into the blue monitor connector. Plug the remaining cable ends into the matching ports on your computer. For serial computers, use only Avocent provided adaptors. Tighten all thumbscrews. Repeat step 3 for each additional computer to be attached and then power-up all attached computers.

  • Page 7: Basic Operations

    Basic Operations PCs may be powered-up one-at-a-time or all at once. The green LEDs over each channel will light, indicating that the attached computer is powered on. After power-up, a lit amber LED indicates the selected com- puter. Other PCs may now be selected for operation. Selecting a PC There are two ways to select a PC.
  • Page 8 SwitchView User Manual Scanning PCs The scanning feature allows you to automatically moni- tor, or scan, each PC in your SwitchView system. If you use the keyboard during scanning, the scan will pause until you finish, then resume with the next PC. The length of time each PC’s video remains on the screen, or dwell time, can be changed at any time.

  • Page 9: Troubleshooting

    Power down the computer. Connect the monitor directly to the computer and power up again. If the monitor does not operate correctly direct to the computer, try another monitor. Verify that the cables from the computer to the Switch- View are connected properly.
  • Page 10 Verify that the computer works properly with a mouse connected directly to it. If not, try another mouse. If you are using a serial mouse, verify that you are using an Avocent Serial Mouse adaptor. Logitech MouseMan Wheel Logitech Trackman Marble Wheel...
  • Page 11 Try changing the keyboard scan set by using the key- board command sequence: <CTRL><CTRL>Kn<Enter>, where n is a scan set number 1-3. If you require any further assistance, please contact Avocent Customer Support.
  • Page 12 SwitchView User Manual Appendix The following is a summary of all operational commands. Key Sequence <CTRL><CTRL>Addr<Enter> <CTRL><CTRL>Dnn<Enter> <CTRL><CTRL>SG<Enter> <CTRL><CTRL>SH<Enter> <CTRL><CTRL>M+<Enter> <CTRL><CTRL>M-<Enter> <CTRL><CTRL>MR<Enter> <CTRL><CTRL>MW<Enter> <CTRL><CTRL>Kn<Enter> <CTRL><CTRL>AV<Enter> <CTRL><CTRL>H1<Enter> <CTRL><CTRL>H2<Enter> <CTRL><CTRL>H3<Enter> <CTRL><CTRL>H4<Enter> <CTRL><CTRL>ZM<Enter> Action Selects an active channel via keyboard. Configures the dwell time. Substitute nn with a value from 2 to 60 seconds.

  • Page 13: Federal Communications Commission (Fcc)

    U.S.A. Federal Communications Commission (FCC) Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 15: Warranty

    Warranty Avocent Corporation warrants to the original retail purchaser that this product is and will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. Additionally, all Avocent products carry an unconditional thirty-day satisfaction guarantee. If, for any reason, you are dissatisfied with the performance of this product, you may return it to the point of purchase for a refund of the purchase price (excluding shipping charges).
  • Page 16 20 Mural Street, Unit #5 Richmond Hill Ontario, L4B 1K3 Canada Tel: +1 877 992 9239 Fax: +1 877 524 2985 E-mail: mail@avocentcanada.com Avocent Asia Pacifi c 100 Tras Street, #15-01 Amara Corporate Tower Singapore 079027 Tel: +65 227-3773 Fax: +65 223-9155 E-mail: info.asiapac@avocent.com...
