Fisher & Paykel WH2424F Installation Instructions Manual

Fisher & Paykel WH2424F Installation Instructions Manual

Hide thumbs Also See for WH2424F:

Advertisement

Quick Links

Download this manual See also: User Manual and Installation Instructions

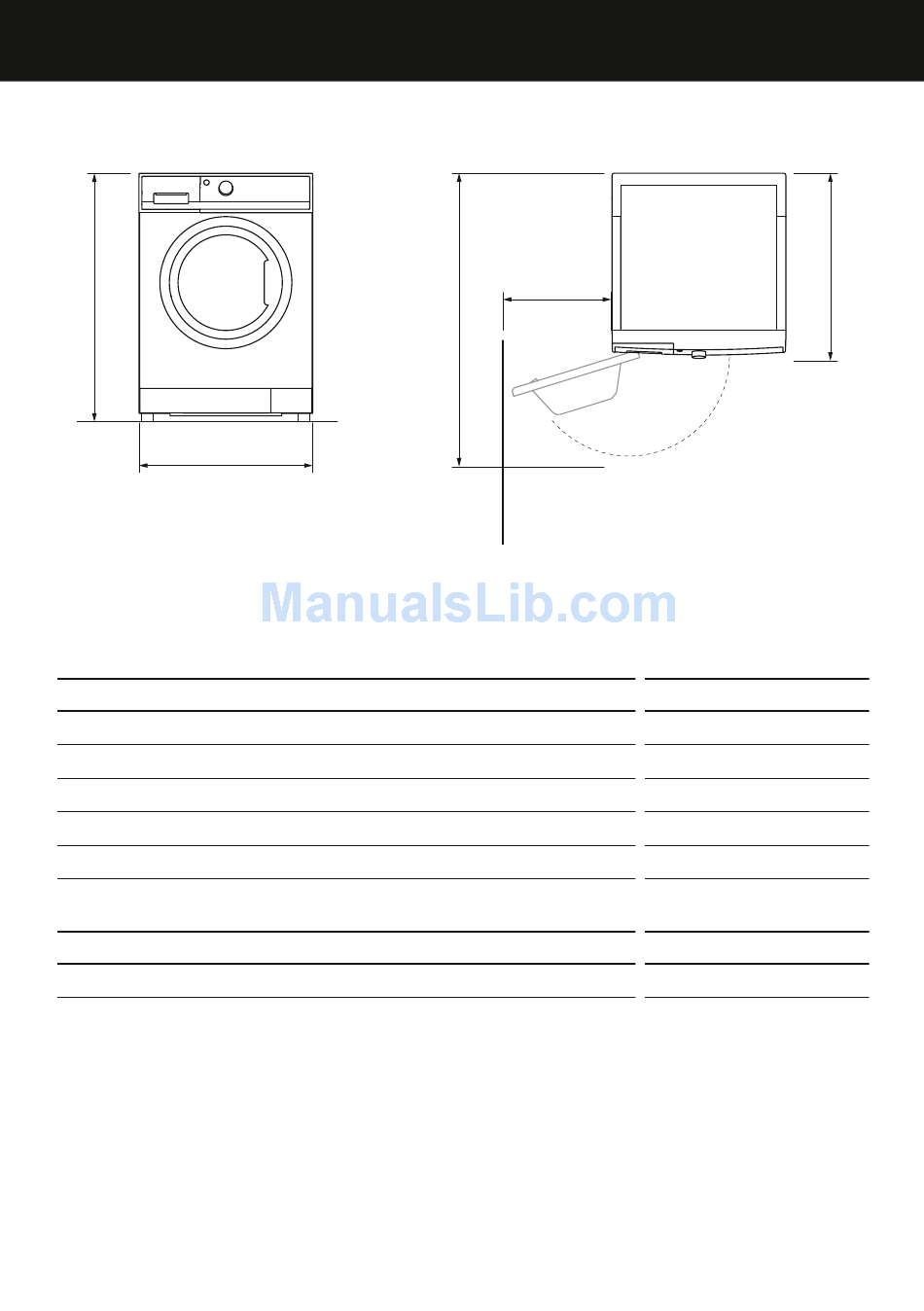

Product dimensions
A
B
FRONT VIEW
PRODUCT DIMENSIONS
Overall height of product
A
Overall width of product
B
Overall depth of product
C
Depth of door open
D
Minimum door clearance to adjacent wall
E
Standpipe height
CAPACITY
Note: the exact height of your washer is dependent on how far the feet are extended
from the base of the machine. The space where you install your washer needs to be at
least 1 3/5" (40mm) wider and 3/4" (20mm) deeper than its dimensions.
Electrical supply: 2 wire plus ground, 120V, single phase, 60Hz, alternating current.
●
●
Inlet water static pressure: Max. (120psi), Min. 10psi.
●
●
Inlet water flow rate at faucet: Min. 1 1/2 gallons/min (6 liters/min).
●
●
INSTALLATION INSTRUCTIONS
D
(including dial and door when closed)
E
TOP VIEW
Wall
min. 31 1/2" – 47 1/4"
EN
C
WH2424F
WH2424P
inches (mm)
33 1/2" (850)
23 5/8" (600)
25 5/8" (645)
42" (1065)
13" (330)
(min. 800 – 1200)
2.4 cu ft
7

Advertisement

loading
Need help?

Need help?

Do you have a question about the WH2424F and is the answer not in the manual?

Questions and answers

Related Manuals for Fisher & Paykel WH2424F

Summary of Contents for Fisher & Paykel WH2424F

  • Page 1 INSTALLATION INSTRUCTIONS Product dimensions FRONT VIEW TOP VIEW Wall WH2424F WH2424P PRODUCT DIMENSIONS inches (mm) Overall height of product 33 1/2” (850) Overall width of product 23 5/8” (600) Overall depth of product 25 5/8” (645) (including dial and door when closed) Depth of door open 42”...
  • Page 2 INSTALLATION INSTRUCTIONS Accessories Please check you received the following accessories with your Fisher & Paykel washer. You will find them inside the drum or attached to the packaging. 2 x Inlet hoses ● ● 1 x Drain hose guide ● ●...
  • Page 3 INSTALLATION INSTRUCTIONS To remove the bolts: Use a wrench or socket to unscrew and remove all four transit bolts at the back of the washer (A). Pull the black rubber grommets to remove the bolt, grommet and black plastic spacers from the machine.
  • Page 4 INSTALLATION INSTRUCTIONS Installing the washer Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog the water valve screens. Remove the inlet hoses from the plastic bag. Remove black rubber washers from bag and insert into hose fitting before connecting to unit.
  • Page 5 INSTALLATION INSTRUCTIONS Attach U-shaped hose guide to the end of the drain hose. Place the hose in a standpipe. Note: if the drain hose is placed in a standpipe without forming a U shape, a siphoning action could occur. There must be an air gap around the drain hose. A snug hose fit can also cause a siphoning action.
  • Page 6 INSTALLATION INSTRUCTIONS If you have an uncontrolled water heating source (eg a wet back or solar heating system) you should fit a tempering valve. This will ensure the hot water temperature remains within safe limits. Contact your registered plumber to select and install the tempering valve. IMPORTANT! This appliance must be installed in accordance with the installation instructions before use.
  • Page 7 INSTALLATION INSTRUCTIONS Draining Drain hose placement in a stand pipe or tub: To guide the drain hose over the tub or standpipe Pull hose the hose guide must be fitted to the drain hose. 3/4” through The height of the standpipe or tub should be (20mm) guide maximum...
  • Page 8 INSTALLATION INSTRUCTIONS Electrical connection WARNING! Electric Shock Hazard Plug into a grounded 3-prong outlet ● ● DO NOT remove ground prong. ● ● DO NOT use an adapter. ● ● DO NOT use an extension cord. ● ● Failure to follow these instructions can result in death, fire or ●...

  • Page 9: Spare Parts

    INSTALLATION INSTRUCTIONS IMPORTANT! If you are using an extension cord or a portable electrical outlet device (eg multi- ● ● socket outlet box), ensure that it is positioned so that it does not come into contact with water or moisture. FAILURE TO DO SO MAY RESULT IN DEATH OR ELECTRICAL SHOCK.
  • Page 10 INSTALLATION INSTRUCTIONS Completing the installation Installation test cycle IMPORTANT! Do this before you wash any items in your washer. This is to check that your washer is installed correctly and that it is functioning correctly prior to use. Turn your washer on by pressing the ‘POWER’ button. Select the ‘Quick’...
