Acer Aspire R3700 Service Manual page 56

Jumper/Header Name
50
Function

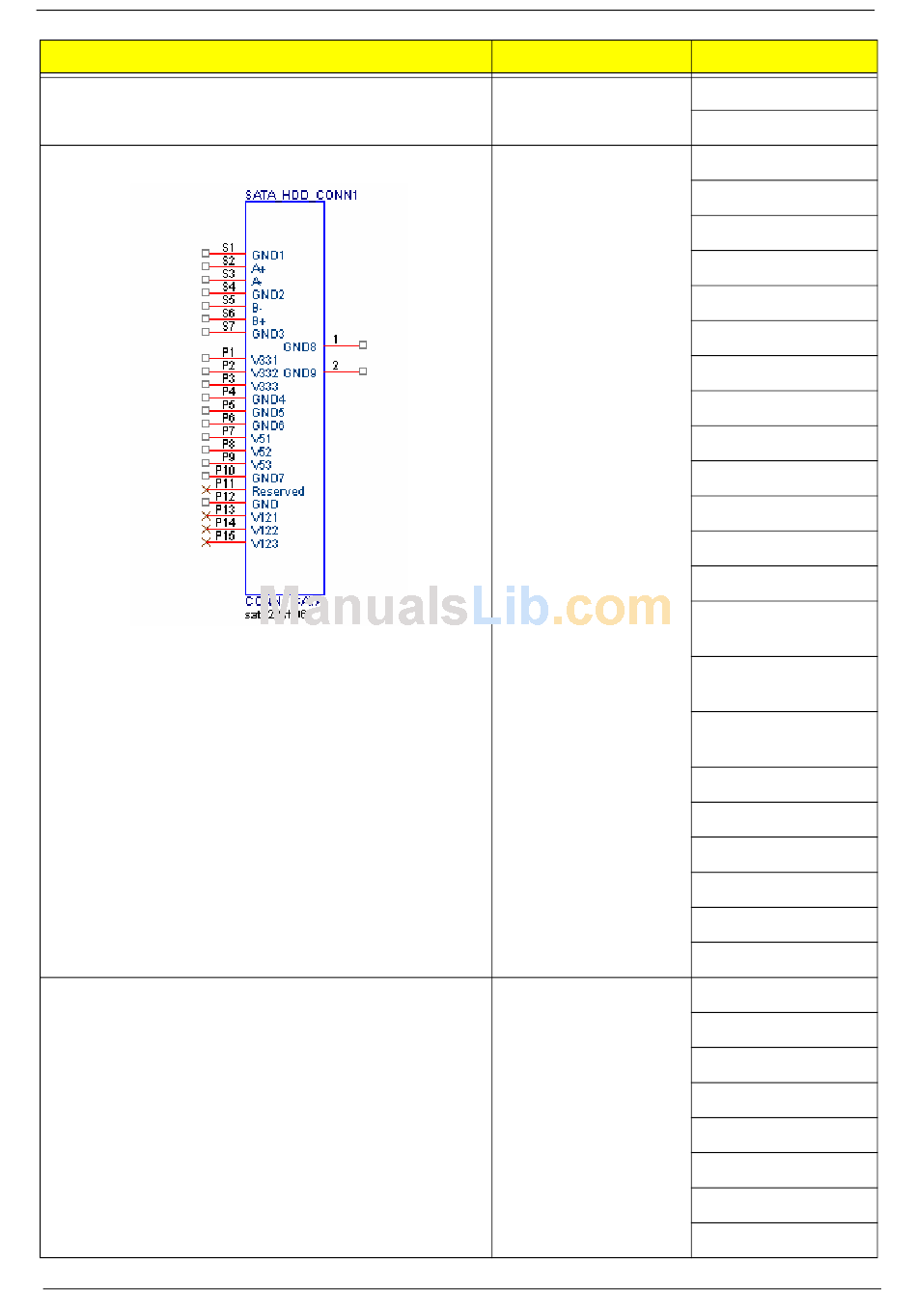

SATA CONN1
Card reader
Definition
GND:GND
GND:GND
S1:GND
S2:STX_DP0_C
S3:STX_DN0_C
S4:GND
S5:SRX_DN0_C
S6:SRX_DP0_C
S7:GND
P1:3D3V_S0
P2:3D3V_S0
P3:3D3V_S0
P4:GND
P5:GND
P6:GND
P7:VCC5_SATA_HD
D
P8:VCC5_SATA_HD
D
P9:VCC5_SATA_HD
D
P10:GND
P11:NC
P12:GND
P13:NC
P14:NC
P15:NC
SD-1:SD_DAT3
SD-2:SD_CMD
SD-3:GND
SD-4:CARD_3V3
SD-5:SD_CLK
SD-6:GND
SD-7:MS_SD_DAT0
SD-8:SD_DAT1
Chapter 5
