System Components

This section is a virtual tour of the system's interior and exterior components.

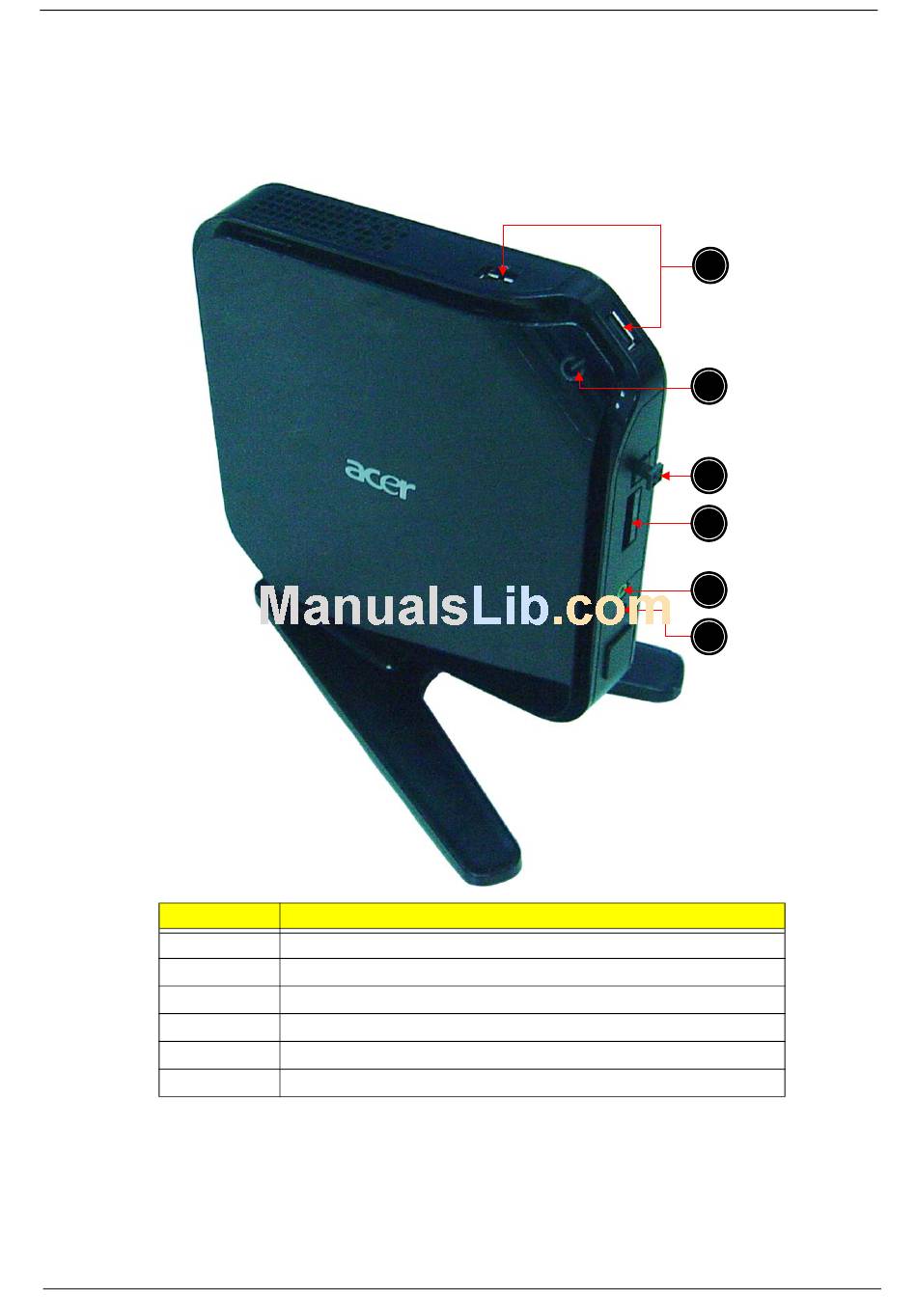

Front Panel

No.
1
2
3
4
5
6
Chapter 1
Component
USB 2.0 port
Power Button
S/PDIF port
Media Card Reader(4 in 1: XD/SD/MMC/MS)
Headphone/Speaker-out/line-out jack
Microphone-in jack
1
2
3
4
5
6
