Power Supply connection

The equipment can be used in the wide voltage input.
Please make sure the voltage is the scale of rated voltage
when connecting the power. The equipment can adapt to
100V to 240 V AC voltage and 50-60 Hz.
COLOR CONNECTIONS
Brown Ac Power Cord
Blue Neutral AC Cable 2
Green/Yellow
DMX Signal Connection
1. Use DMX512 controller, use the DMX signal (male) to
plug into the first lamp (female) 3 pin.
2. Put out of the equipment of the first signal wire (head),
connected to the equipment of the next 3 pin plug (fe-

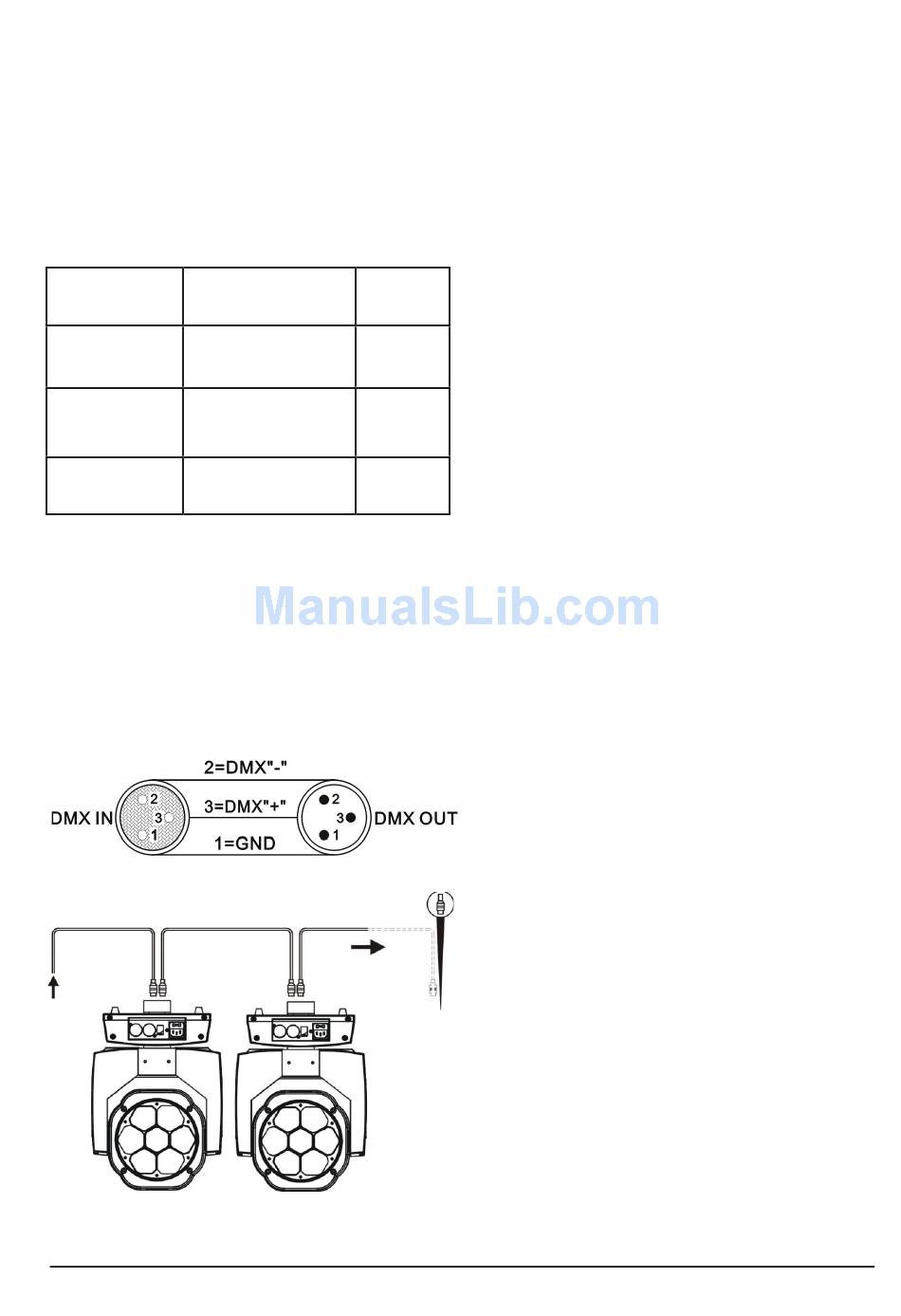

male) ,so on. See belowed pictures:
P. 6
MINI HIVE 10
ENGLISH VERSION
PIN
1
Earthing 3
