Summary of Contents for Tecknet WM389

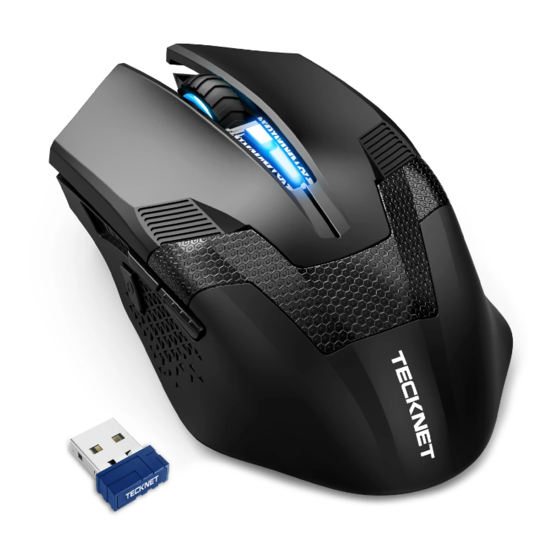

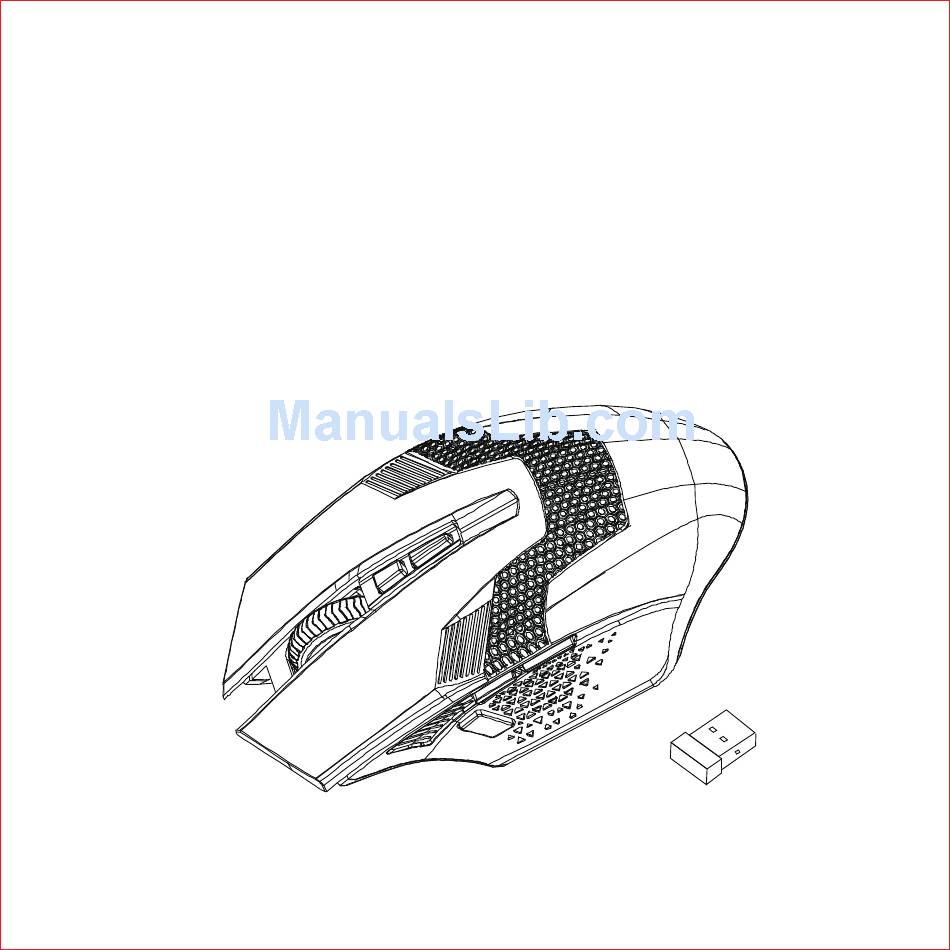

- Page 1 Welcome Guide TeckNet WM389 Wireless Gaming Mouse...
- Page 2 Welcome Thank you for purchasing this TeckNet product. To ensure optimum performance and safety, please read these instructions carefully before operating the product. It is strongly recommended you keep the manual for future reference. Product Layout DPI +Button DPI - Button...
- Page 3 1. Open the battery cover. Insert the batteries into the compartment, ensuring they correspond with the polarity markings. 2. Close the battery cover. Switch on the WM389 by adjusting the power switch underneath the mouse. Switch to the left, LED indicator would turn off, switch to the right, LED indicator would...
- Page 4 Note: Make sure that the polarity of the batteries is correct. The positive (+) and negative (-) ends of each battery must match the positive (+) and negative (-) markings in the battery housing. Receiver Connection Remove the USB Nano receiver and plug it into a free USB port in your computer. Turn on the mouse.
- Page 5 Software Instructions Installation: 1. Load the disc into CD Rom and double click the software icon. 2. Click "Install" to start installation. 3. Click "Next" then click "Install".
- Page 6 4. Double click software icon once installation is completed. The main interface will show as below.
- Page 7 User instruction： The main interface is divided into three parts: General Setting, DPI Setting, Version Information Button Setting: User-defined support as below Mouse: Left Click Button,Right Click Button,Scroll Wheel,Froward Button,Backward Button,DPI +Button,DPI - Button,Fire Button Edit: Copy, Cut, New, Open, Paste, Print, Redo, Save, Select All, Undo, CTRL, ALT, SHIFT, WIN. Multimedia: Media player, Prev Track, Next Track, Play/Pause, Stop, Mute, Volume+, Volume -.
- Page 8 2.Click "NEW " and input "TEST1", press "enter key" to an end 3.click"Start Record" to set up the macro. For example, input 1,2,3,4,5,6,7,8,9. then click "Stop Record" to complete. Click "OK" , "APPLY" to save the setting before exiting the software.
- Page 9 Mouse setting If you would like to set up for “Right Button”, click it first and a drop-down menu will show up as below. Then choose the setting you need, click "Apply" then click "OK" to save the setting before exiting the software.
- Page 10 Multimedia setting If you would like to set up for “Right Button”, click it first and a drop-down menu will show up, select "Multimedia", a new drop-down menu shown as below, then you can select the action needed, click "Apply" then click "OK" to save the setting before exiting the software. Windows setting If you would like to set up for “Right Button”, click it first and a drop-down menu will show up, select "Windows", a new drop-down menu shown as below, then you can select the action needed, click...
- Page 11 Parameter Setting You can adjust the speed of "Double Click Speed", "Mouse Point Speed", "Mouse Scroll Speed", "Polling Rate" DPI Setting there are 6 levels of DPI, you can define each level based on your requirement, then choosing the DPI you need , click "apply" will be ok.
- Page 12 Profile Setting: TeckNet WM389 supports 5 profiles. You should define each profile first, click "Apply", then click "OK" to save the profile. Export Profile: 1. You can export the profile after saving a profile, click "Save As". 2. A pop-up window will show up, you can select a captioned folder to keep the profile, then click...
- Page 13 Load File: You can load the saved profile into the software. Simply click "Load File", a pop-up window will show up as below, select the folder with saved profile, then select the captioned profile, click "Open" to load. Restore: Click "Restore", the captioned profile setting will return the default setting. Restore All: Click "Restore All", all the profile setting will return the default setting.
- Page 14 Reconnection There is a connection code for this mouse. High temperatures, electro-magnetic fields or vibration may influence the code signal and the mouse may need to be reconnected. 1. Ensure the battery voltage is correct; if the voltage is low, replace the batteries. 2.
- Page 15 IMPORTANT SAFETY INSTRUCTIONS-CAREFULLY FOLLOW THESE INSTRUCTIONS. 1.SAVE THESE INSTRUCTIONS - This sheet contains important safety and operating instructions. 2.Before using the product, read all instructions and caution markings on the product, accessories and device using our product. 3.This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction...
- Page 16 7.Do not place product in or near inflammable, explosive or hazardous object. 8.Do not place in or near water, rain, excess moisture or extreme heat. 9.Do not operate product with damaged cord or plug. 10.Do not operate product if it has been damaged in any way.
- Page 17 What this warranty covers. Shenzhen Unichain Technology Co., LTD. (Manufacturer: “Unichain”) warrants to the original purchaser of this TeckNet product that the product shall be free of defects in design, assembly, material, or workmanship. What the period of coverage is.
- Page 18 We warrant that products purchased from authorized distributors will meet the applicable product specifications and be free from all defects in design, assembly, materials and workmanship. Please contact retailers or visit our website (www.tecknet.co.uk) for more information. E-mail: support@tecknet.co.uk Website www.tecknet.co.uk...
