B027 FOLDING DESK EXERCISE BIKE
USER MANUAL
IMPORTANT!
Read all instructions carefully before using this product. Save this user manual for
future reference. For customer service, contact: service@zoovaa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B027 and is the answer not in the manual?

Questions and answers

Related Manuals for Efitment B027

Summary of Contents for Efitment B027

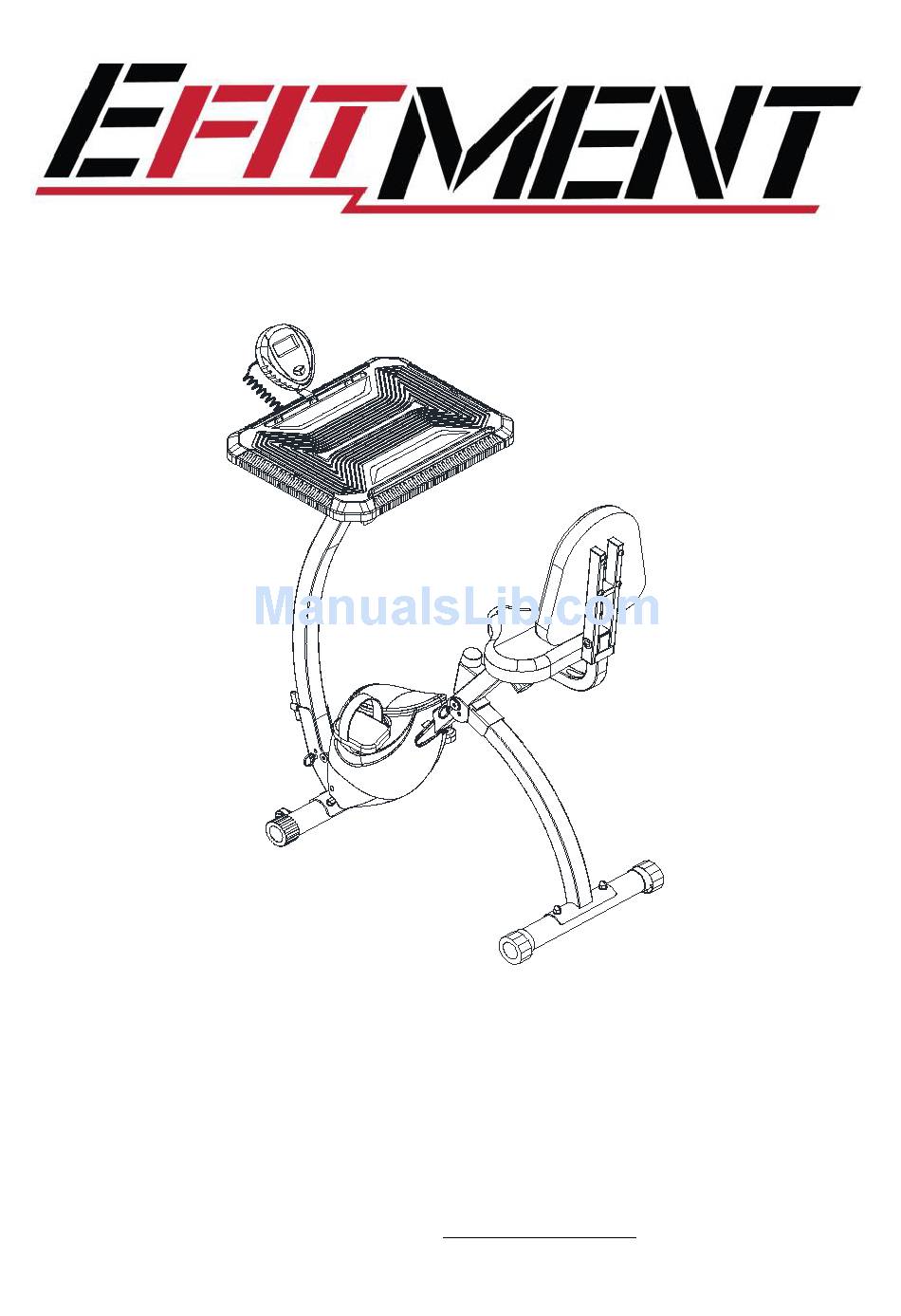

  • Page 1 B027 FOLDING DESK EXERCISE BIKE USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Save this user manual for future reference. For customer service, contact: service@zoovaa.com...

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE Note the following precaution before assembling and operating the machine. 1. Assemble the machine exactly as described in the instruction manual. 2. Check all the bolts, nuts and other connections before using the machine for the first time to ensure the machine is in the safe condition.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING...

  • Page 4: Parts List

    PARTS LIST DESCRIPTION SPECIFICATION DESCRIPTION SPECIFICATION Meter Back Cushion Meter Holder Saddle Desk Desk Post Screw ST4*12 Upper Signa Wire Bolt M8*35 Cup Holder Washer ø14*ø8.2*2 Inner Slide Rail Curved Washer ø20Xø8.5XT1.5 Fixed Plate Lower Signal Wire Base Main Frame Screw ST3*10 Flat Washer...
  • Page 5 Bearing 6003Z Belt Pulley Clamp Spring Belt Big Washer Bearing 608RS Bearing Block Axis Of Pulley Screw M6*12 Magnet Frame Crank Shaft Magnet Frame Belt Pulley Magnet Belt Flywheel Screw Left Cover Tension Knob Left Crank Post Decorate Cover M10*1.5 End Cap Washer ø24*ø12.3*T1.5...

  • Page 6: Hardware Package

    HARDWARE PACKAGE...

  • Page 7: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1 Take out the Main Frame (No.9) from carton, then insert the Pull Pin (No.17) into the hole as shown above. Using 1 Flat Washer (No.10) and 1 Cross Shaped Knob (No.11), tighten the post for Main Frame (No.9).
  • Page 8 STEP 2 Attach the Front Stabilizer (No.14) to the Main Frame (No.9) using 2 Bolts (No.13), 2 Nuts (No.16), 2 Curved Washers (No.7) and 2 Carriage Bolts (No.15). Tighten with Spanner and Allen Wrench. Attach the Rear Stabilizer (No.18) to the Main Frame (No.9) using 2 Nuts (No.16) 2 Curved Washers (No.7) and 2 Carriage Bolts (No.15).
  • Page 9 STEP 3 Attach the Saddle Post (No.21) to the Saddle (No.28) using 3 Flat Washers (No.23) and 3 Nuts (No.22). Tighten with Spanner. STEP 4 Secure the Seat Bracket (No.24) to the Saddle Post (No.21) using 2 Nuts (No.22), 2 Flat Washers (No.10) and 2 Carriage Bolts (No.
  • Page 10 STEP 5 Attach the Back Cushion (No.27) to the Backrest Bracket (No.100) using 4 Nuts (No.26) and 4 Washers (No.6). Tighten with Allen Wrench. STEP 6 Insert the Saddle Post (No.21) into the Main Frame (No.9). Secure with Adjustable Knob (No.20).
  • Page 11 STEP 7 Attach the Meter Holder (No.2) into the Desk (No.3), using 2 Screws (No.4). Tighten with Allen Wrench.
  • Page 12 STEP 8 Attach the Desk (No.3) to the Desk Post (No.29) using 2 Bolts (No.5), 2 Washers (No.6) and 2 Curved Washers (No.7). Tighten with Allen Wrench. Connect Upper Signal Wire (No.30) with Lower Signal wire (No.8), as shown in picture. Insert the Desk Post (No.29) into the Main Frame (No.9).
  • Page 13 STEP 9 Connect Upper Signal Wire (No.30) to Meter (No.1), then assemble it to Meter Holder (No.2).
  • Page 14 STEP 10 Screw Right Pedal (No.12) into the Right Crank (No.48) in CLOCKWISE direction. Screw Left Pedal (No.19) into the Left Crank (No.88) in COUNTER-CLOCKWISE direction. Tighten with Spanner.
  • Page 15 HOW TO ADJUST THE DESK Hold the desk with your left hand. Push the Button (No.38) with your right hand. Slide the desk forward or back. Release Button (No.38). Note: There is a Cup Holder (No.31) on the right side of the desk. Slide it out to use.
  • Page 16 HOW TO FOLD THE BIKE Slide the desk towards the seat and adjust seat to the lowest position. Loosen and pull out Pull Pin (No.17) Hold the Back Cushion (No.27) by the left hand, and grasp Main Frame (No.9) by the right hand and push it forward until the holes shown in Fig. A align with each other.

  • Page 17: How To Move The Bike

    HOW TO MOVE THE BIKE Put your hands on the Desk (No.3) and tilt the bike until the wheels are able to move on the ground. Now you can move the bike to the desired location with ease.
  • Page 18 Meter Instruction SPECIFICATIONS: TIME (TMR)……………………………………………….…………….…00:00-99:59 MIN SPEED (SPD)…………………………………………….…………………..0.0-99.9 ML/H DISTANCE (DST)……………………………………………….……………0.00-999.9 MI CALORIES (CAL)………………………………………………….…….……0-9999 KCAL ODOMETER (ODO）……………………………………………….….……0.00-999.9 MI MODE: Press this button to select and stay on a function you want. SET: Press to set values of time, distance, or calories when not in SCAN mode. RESET: Press to reset time, distance and calories to zero when not in SCAN mode.
  • Page 19 The meter has a countdown function for TIME, DISTANCE, and CALORIES. To use the countdown function, press MODE to select TIME, DISTANCE or CALORIES. Press SET to set the value. You can start pedaling. The meter will countdown from the value you set. When the countdown is done, it will automatically start counting from 0.
