Summary of Contents for Hilti PLT 300
- Page 1 PLT 300 English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
- Page 2 Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
-
Page 3: Table Of Contents
4.10 Protection class ..........4.11 Ambient conditions for the PLT 300 and PLC 300 ...... -
Page 4: Information About The Documentation
Transport and storage ..........Transport . -
Page 5: Labels On The Plt 300
In addition to the safety rules listed in the individual sections of these operating instructions, the following rules must be strictly observed at all times. The PLT 300 and its ancillary equipment may present hazards when used incorrectly by untrained personnel or when used not as directed. -
Page 6: Proper Preparation Of The Working Area
▶ Secure the area in which you will be taking measurements. Make sure that the laser beam is not directed toward other persons or toward yourself while setting up the PLT 300. ▶ Check that the tripod stands securely and that the PLT 300 is firmly attached to the tripod by the mounting screw. -
Page 7: Careful Use Of Battery-Powered Tools
Tools and appliances create sparks which may ignite the dust or fumes. ▶ Wear personal protective equipment, always including protective glasses and protective gloves. ▶ Check the PLT 300 and PLC 300 before use for possible damage. Have any damage repaired by Hilti Service. - Page 8 English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
- Page 9 English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
-
Page 10: Description

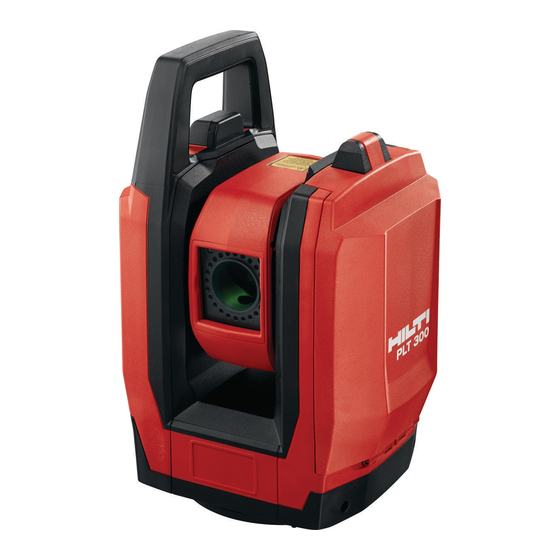

Description Overview of the product 3.1.1 PLT 300 English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01... - Page 11 Grip Lens cover and laser exit aperture & WLAN antenna On/off buttons Battery compartment catch Battery compartment Battery compartment cover Battery English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
-
Page 12: Plc 300
3.1.2 PLC 300 Microphone Ambient light sensor English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01... -
Page 13: Intended Use
The product described consists of the cordless PLT 300 layout tool and the PLC 300 cordless controller. The PLC 300 allows remote control of the PLT 300. Both components form a system. The layout tool is designed to be used for measuring distances and directions, calculating target positions in three dimensions and laying out given coordinates or values relative to a control line. -
Page 14: Technical Data
Technical data Laser distance measurement Wavelength 500 nm …540 nm Laser color Green Laser class in accordance with IEC 60825-1 Maximum average power output ≤ 1.00 mW Pulse duration 0.2 ns …10 ns Pulse frequency 5 MHz …100 MHz Beam divergence 0.2 mrad …20 mrad Distance measuring accuracy (ISO 17123-5) At 50 meters... -
Page 15: Wireless Communication Between The Plt 300 And Plc 300
Wireless communication between the PLT 300 and PLC 300 WLAN standard IEEE 802.11a/b/g Maximum emitted transmission power WLAN 16.9 dBm WLAN-Frequency range 2,400 MHz …2,483.5 MHz PLC 300 power source Rated voltage 7.2 V Capacity 7.1 Ah Battery life Charging time... -
Page 16: First Steps
2. Use only a soft, clean cloth to clean the tool. Maintenance ▶ To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com. - Page 17 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 18 English Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
- Page 19 Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
- Page 20 Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
- Page 21 Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
- Page 22 Hilti = registered trademark of Hilti Corp., Schaan 20180119 Printed: 31.01.2018 | Doc-Nr: PUB / 5245389 / 000 / 01...
