Agrident APR500 Instruction Manual

Electronic animal identification
Hide thumbs Also See for APR500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
APR500
With
from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APR500 and is the answer not in the manual?

Questions and answers

Related Manuals for Agrident APR500

Summary of Contents for Agrident APR500

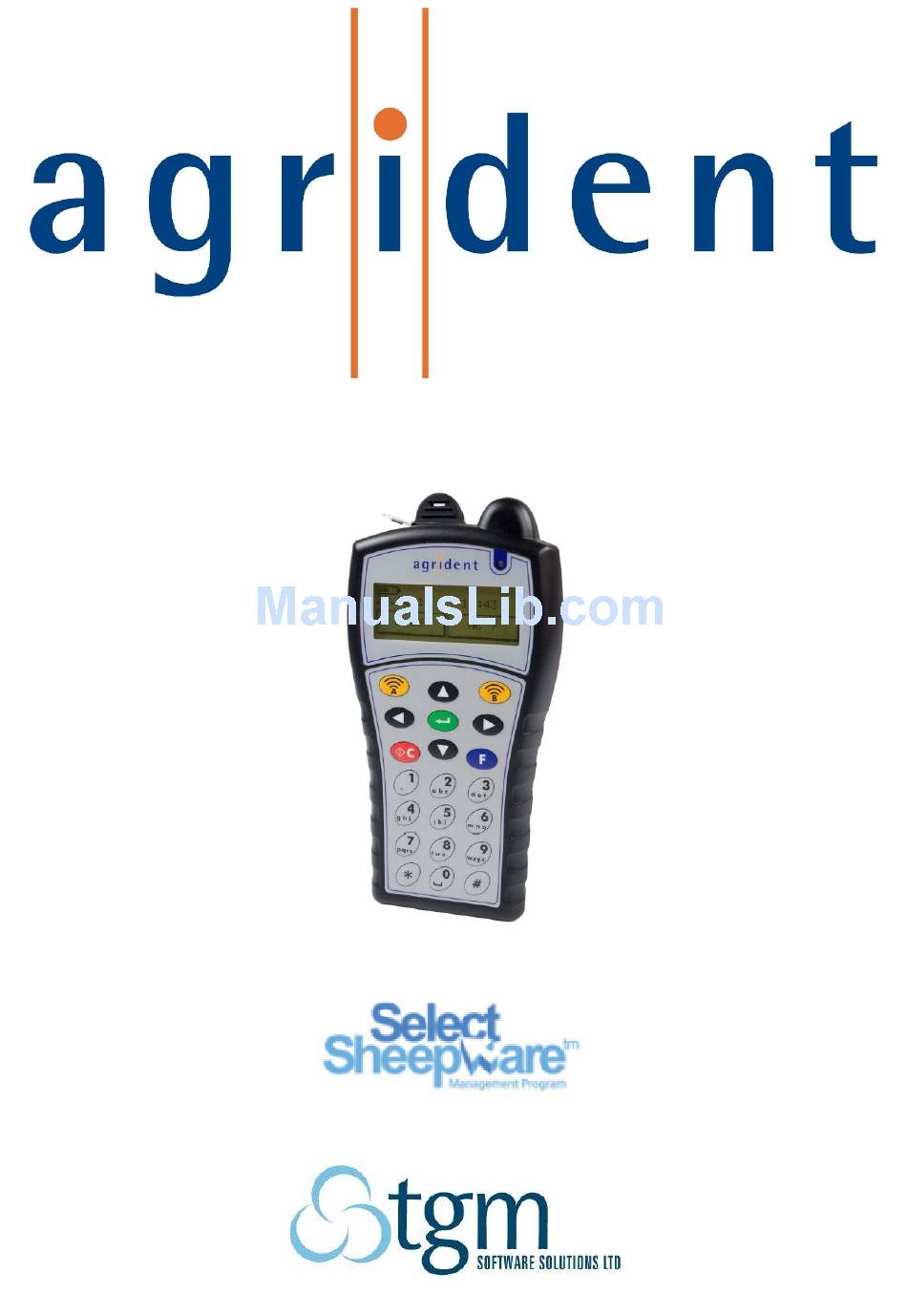

  • Page 1 APR500 With from...

  • Page 2: Table Of Contents

    Contents Controlling the APR500 Function Menu Operation Speed Mode Task Mode Setup DB Lookup View DB VID (Visual ID) View Speed Mode Task Mode Task Mode (Advanced) APR Tasks Lists of Tasks Available 1. Add/Re-Tag/Move (Death/Purchase/Sale) 2. Birth or Abortion 3.
  • Page 3 Controlling the APR500 EID Read Head Attach Extension Wand Here (optional) Battery Status Time Date Button A Corresponds Button B Corresponds To DB Lookup View To DB Visual ID View Arrow Pad/Enter Key On/Off Function Key Back Key Operation Speed Mode...

  • Page 4: Add/Re-Tag/Move

    Function Menu Operation – used to set the function of the Hotkeys 1. Hotkey Configuration a. Hotkey A i. Hotkey Mode ii. Action code list iii. DB Lookup item b. Hotkey B (as above) Speed Mode – allows the reader to behave as a wand type reader to record a list of tag numbers or a group of animals with an Action code: 1.
  • Page 5 DB Lookup View Database (DB) Lookup View is a trimmed down version of the full animal record card, containing some of the most critical information about a particular animal. To use this feature, simply press Hotkey A, when close to an animals EID tag and the information is instantly displayed.
  • Page 6 DB Visual ID (VID) View DB VID View allows you to look up/search for an animal by its Visual ID. Press Hotkey B, then either use the down/up arrows or type in a number/part of a number using the number pad to find the animal you are looking for. Once you find it, press the enter key.
  • Page 7 Speed Mode Speed Mode allows the APR500 to behave as a wand/stick type reader for rapid reading of tags. To use Speed Mode: Press the ‘Function’ Key, Choose ‘Speed Mode’, and then ‘New Group’. You will be asked to enter a group name: Default is Group 1, then increasing in sequential order for each subsequent group.
  • Page 8 Task Mode Task Mode allows the user to record a series of common tasks about an animal. To use Task Mode, press the ‘Function’ key, choose ‘Task Mode’ and then choose the type of task you want to record. You can choose between: 1.
  • Page 9 Task Mode (Advanced) APR Tasks The following lists from the PC software are used as selection lists in the APR. It is best if they are set up first before synchronising Breeds Customers (used for both sales and as record of death disposal place) Death Reasons Illnesses Locations (for temporary movements)
  • Page 10 Multiple will allow user to enter type, sex, date of birth, supplier and then Speed Mode will be triggered where all the animals scanned will be allocated the same details automatically. Each will be a clone of the first apart from EID e.

  • Page 11: Alerts

    7. Temporary Move a. Single / Multiple. Allows user to record temporary movement of sheep to a new location (selection list) 8. Tupping / Scan a. Single / Multiple i. Pregnancy Scan / Service Pregnancy scan allows user to record pregnancy scanned number of lambs ii.
  • Page 12 Setting up Select Sheepware to work with the APR500. Normally, TGM technical support will do this part for you by internet connection, using Teamviewer. Once this has been set up, it’s unlikely you will need to change these settings. Open Select Sheepware on your PC.
  • Page 13 To Synchronise the APR after recording: Click on the ‘EID’ Tab in Select Sheepware and choose ‘Sync Handheld’ The synchronisation will begin and each task will be transferred one at a time. click EID, -> Sync handheld -> Agrident You’ll get this Then this...
  • Page 14 You’ll get this When finished. You’ll get this – Click Yes to erase all taskmode data. Then this Then this – click on Yes – Speedmode allows reader to behave like a wand to get a list of eid numbers read in quickly. Having processed the downloaded speedmode data the reader speedmode memory needs to be cleared.
  • Page 15 AWR/APR Link Software AWR Link for wand readers will also work for handheld readers such as the APR500. Connect the reader to the computer via the cable. -Download Tag Lists -Open AWR Link -Click on Download Tag Lists to download a list of tag numbers.
  • Page 16 -The AWR Link program will automatically connect to the reader, provided it is switched on at this stage. -If connected, there will be a green indicator shown. -You will be prompted to save the file of EID numbers downloaded from the reader.
  • Page 17 -It is possible to choose from 3 different lists: 1. All tags 2. Last group of tags read 3. A selected group of tags ** All tags are shown in UK or IE format IE04…. Or UK…. ** 1. All Tags sorted within group by tag – lists all tags read. Sorted in 0rder of tag number within each group...
  • Page 18 2. Tags in last group 3. Tags in selected group -To print the currently selected list, click Print Selected List...
  • Page 19 -To open a previously saved file, click on Open a saved file -To delete all data from the reader click on Delete All Data from Wand **This is not reversible and once the data has been erased it is completely gone. The downloaded file will still be in the location it was saved in, but the reader will be empty of all data.** -You will be prompted ‘Do you want to delete all data from the wand’...
  • Page 20 -Two other items of note -If you do not want the date and the time shown, then remove the tick in the checkbox for include date -If you do not want the file saved in spreadsheet format, then remove the tick from the checkbox Save as csv.
  • Page 21 -Using Task Mode. -Click on AWR Tasks -Before setting up the reader for tasks for the first time, set up the lists for the AWR. Click on AWR Lists -You may set up 16 lists for the APR tasks, to enable fast entry of data. -Click on the last entry of each list then press the down arrow on your keyboard to add new options to each list...
  • Page 22 -After you have finished setting up the lists, click Close. Then click Initialise and upload tasks. -This will delete all data, so only use this function to setup the reader before you use for the first time or after you have downloaded all data from it and want to upload a new version of the task software to the AWR -The set of management tasks will be copied to the APR -To save this set of data in spreadsheet format, click Save task data in...
  • Page 23 -Tasks recorded in the APR will be saved to nine spreadsheets, one spreadsheet for each major task event. Add / Retag / Move Birth or Abort Comments Fostering Groups Medicine Temp Move Tupping / Scan Weight / Muscle -Spreadsheets are automatically saved to c:\AWRLink\Data -You may open a spreadsheet directly from within AWRLink by clicking on Open Spreadsheet.
  • Page 24 -Database -Animals added via task mode are added to a simple database -Click on View animals in database to review -The database may be uploaded to the APR. This enables you to look up animals on the APR screen. To upload to AWR, click Upload database to AWR.
