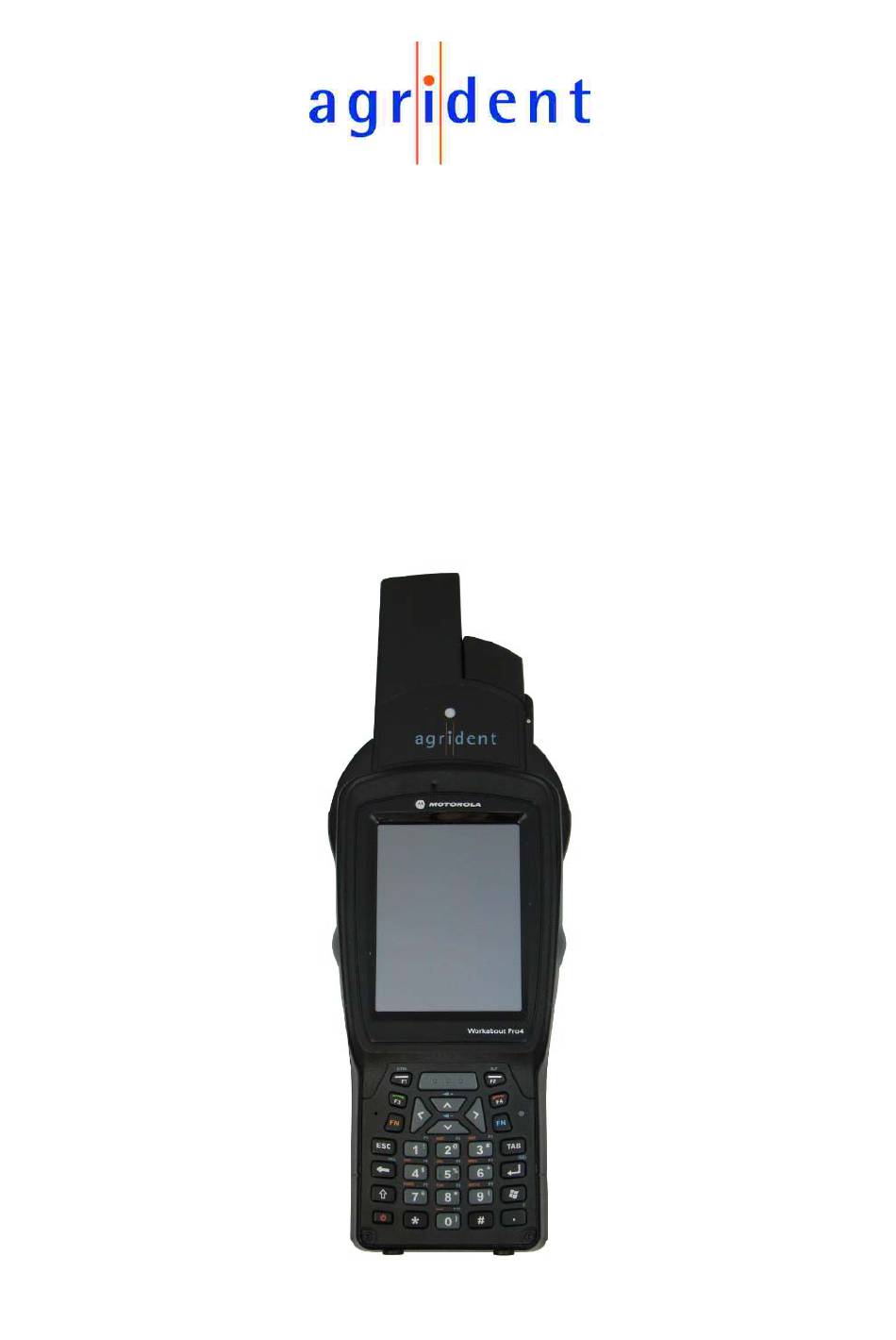

- Page 1 Agrident GmbH, Steinklippenstr. 10, D-30890 Barsinghausen Phone +49 5105 582573-10 - Fax +49 5105 582573-17 AIR300 Hardware Manual for Motorola Workabout Pro-G4 V26/02/15...
- Page 2 Agrident GmbH. Agrident GmbH reserves the right to make changes to any and all parts of this documentation without obligation to notify any person or entity of such changes.
-
Page 3: Table Of Contents
AIR300 Hardware Manual for WAPro-G4 Content Introduction ......................4 Installation of the AIR300 LF-RFID-Reader ............4 Reading transponders ..................6 Using an external antenna ................... 8 Safety and care ....................11 ... -
Page 4: Introduction
1 of the Workabout Pro, which does not have an internal USB connector. Mechanically the AIR300 is using the expansion end cap of the Workabout Pro. That means that it is physically not possible to operate the reader together with other expansion modules that are using the extended end cap position. - Page 5 Remove the end cap at the top of the WORKABOUT PRO G4. Connect the USB connector. Attach the AIR300 housing to the WORKABOUT PRO. Please fix the AIR300 housing with the two provided M2.5x6 flat-head screws. If you are using the hand strap for the WORKABOUT PRO, please use the provided 10 millimeter screws instead.
-
Page 6: Reading Transponders
USB Driver! Please refer to the corresponding documents for details. Reading transponders If the AIR300 is activated from your software, the LED is blinking red slowly. If a transponder is being read, the LED color will change to green. - Page 7 AIR300 Hardware Manual for WAPro-G4 The reading range depends on tag type and tag orientation. The following picture shows the field distribution of the AIR300 antenna: As a result, there is an optimum orientation: … and an unfavorable orientation: Since Boluses also contain glass tags, the reading orientation for injectables is the same as shown for the Boluses.
-
Page 8: Using An External Antenna
Agrident also provides external antennas for the AIR300, for example the AEA580. External antennas extend the physical read range while the electrical characteristics are similar to the internal antenna. This antenna can be connected to the AIR300 by using the external antenna connector on top of the reader. 26/02/15... - Page 9 Remove the protection cap from the external antenna plug by pulling it to the top first. Now it can be folded to the side. The antenna connector fits into the AIR300`s socket in only one position. Therefore the grooves in the socket and the notches in the cable connector have to match.
- Page 10 After removing the external antenna connector from the reader, it is very important to attach the protection cap again in order to protect the connector and the AIR300 electronics from moisture and dust. Therefore please fold the protection cap back into the direction of the internal antenna and press it down into the initial position.
-
Page 11: Safety And Care
The manufacturer accepts no liability for damage resulting from improper use or use not consistent with that described in these operating instructions. The AIR300 Reader contains no parts that can be repaired by the user. For this reason the Reader Electronic may only be repaired by authorized customer service personnel. ... -
Page 12: Ce Marking
AIR300 Hardware Manual for WAPro-G4 CE MARKING Hereby, Agrident declares that this equipment, if used according to the instructions, is in compliance with the essential requirements and other relevant provisions of the RTTE Directive 1999/5/EC. For use in all countries of the EU.
