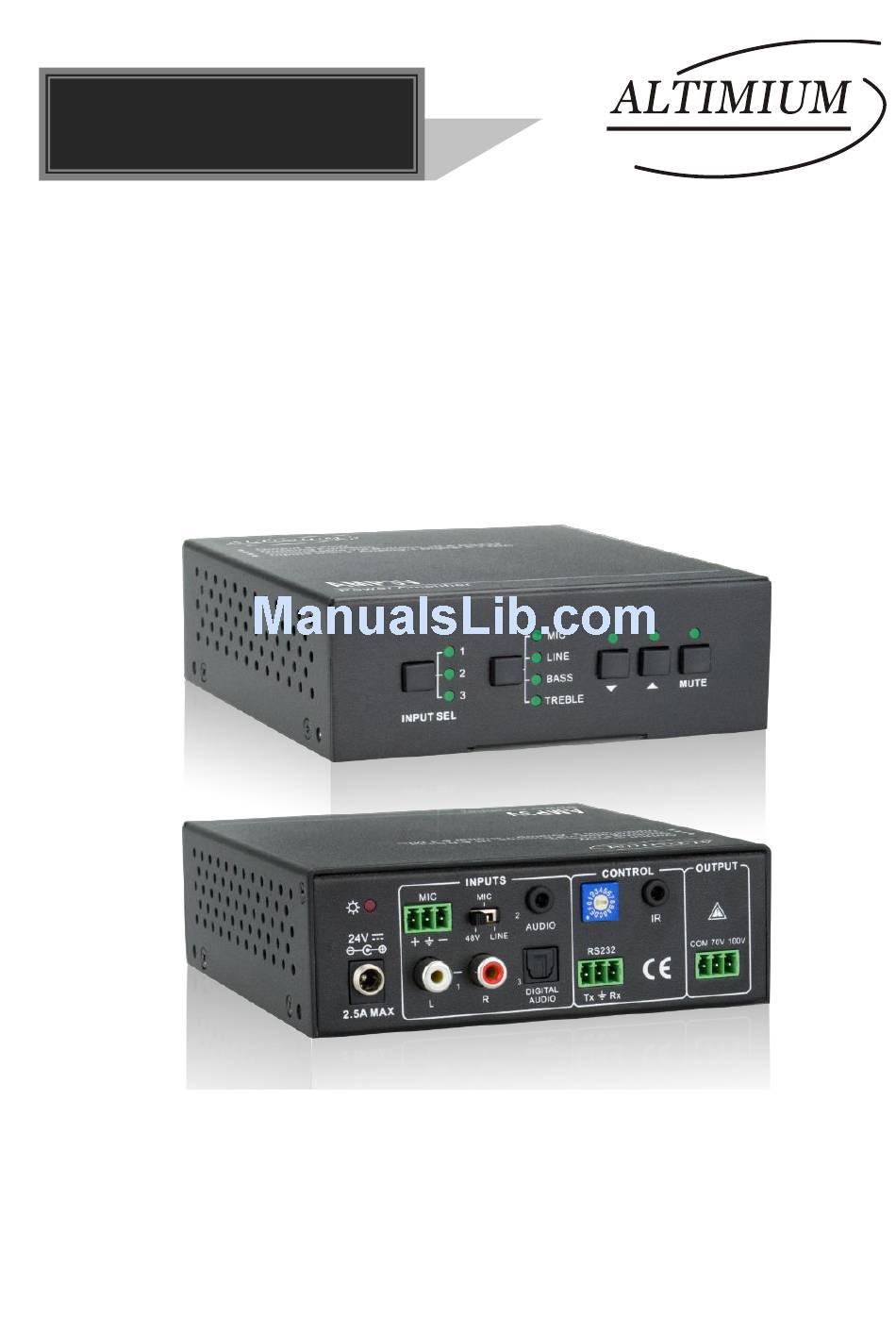

- Page 1 User Manual AMP3V 40 Watt Power Amplifier All Rights Reserved Version: AMP3V_2016V1.1...
- Page 2 Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. Altimium www.altimium.com...
-
Page 3: Safety Precautions
Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. Altimium www.altimium.com... -
Page 4: Table Of Contents
40W Power Amplifier Table of Contents 1. Introduction ......................... 1 1.1 Introduction to AMP3V ..................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Panel Description ......................3 2.1 Front Panel ......................3 2.2 Introduction of Rear Panel ................. 4 3. -
Page 5: Introduction
1. Introduction 1.1 Introduction to AMP3V AMP3V is a 40 Watt power amplifier (Class-D) with output alternatively at 70V or 100V. It has 2 stereo inputs (1x3.5mm jack for line in, 2xRCA for L&R), 1 digital input & 1 balanced MIC. It is integrated with powerful functions, including ducking function, EQ control, MIC mixer etc. - Page 6 40W Power Amplifier 1 x Power Cord 4 x Plastic Cushions 1 x User manual Note: Ensure the product and the accessories are all included, if not, please contact with the dealers. Altimium www.altimium.com...
-
Page 7: Panel Description
Adjust the volume of the MIC, Line, or the level of Bass and ② Control Treble with this button To turn up/down or mute the corresponding audio. ▽ Volume : Turn down the volume ③ △ Adjustment : Turn up the volume MUTE: Mute the output Altimium www.altimium.com... -
Page 8: Introduction Of Rear Panel
3-pole captive screw connector for serial control, it can be ⑨ RS232 connected with PC (Use a 3-pole captive to 9 pin female D connector and serial control software) to control AMP3V. To connect with audio output devices, such as speakers (To Audio ⑩... -
Page 9: System Connection
3.3 Audio Signal Connection 3.3.1 Audio Output AMP3V supports mono audio output, and the output voltage is 70V or alterative 100V. With its dual-purpose design, it can be applied in different areas. The end COM is for grounding. The amplifier to be connected is mono audio output with a rated power at 40Watt, so AMP3V can be connected with several speakers in parallel connection way (Total power mustn’t be more than 40Watt). -
Page 10: Audio Inputs
Note: Speakers to be connected should be with constant pressure. 3.3.2 Audio Inputs AMP3V provides with 2 stereo audio inputs, one microphone input and one digital fiber audio input. The following figure shows the audio input ports. Dial Switch, to select the MIC input mode,... -
Page 11: System Applications
Digital Audio Input AMP3V provides with a fiber optical port to connect with digital audio source device. With the SPF optical fiber, the audio signal can be transmitted faster, more stable, reliable, and can be transmitted over a long distance without distortion. -
Page 12: System Operations
“ ”. 4.2 Operations of IR Remote AMP3V provides with an IR eye, with the IR Receiver and the IR remote, user can control AMP3V remotely. Notice: The IR Receiver and the IR remote are all offered for charge. -
Page 13: Operations Of Control Software
When the amplifier connects to the COM1 or COM2 of the computer with control software, users can control it by that computer. To control the amplifier, users should use a 3-pole male captive screw to 9-pin HD female connector and use the public COM software. Altimium www.altimium.com... -
Page 14: Installation/Uninstallation Of Rs232 Control Software
Copy the RS232 control software to one computer, and then connect the RS232 port of this computer and AMP3V. Double-click the EXE program to execute the software. Here we take the software CommWatch.exe as example. The icon is showed as below: Figure 11 Control Software ... - Page 15 40W Power Amplifier Parameter Configuration area Monitoring area, indicates if the command sent works. Command Sending area Figure 12 Main Interface of Control Software Altimium www.altimium.com...
-
Page 16: Rs232 Communication Commands
Preset the bass level, [xx] arranges from 8[x][x]% Bass of LINE: 4 [00] to [08]. 9 degrees in total. Preset the treble level, [xx] arranges from 9[x][x]% Treble of LINE: 4 [00] to [08]. 9 degrees in total. Altimium www.altimium.com... - Page 17 “610%” again. 5. ID coding The ID codes of AMP3V ranges from 0 to F (hexadecimal), when sending RS232 commands, please take notice of the address of the ID code. If the address of the ID code is 0, any RS232 command is available.
-
Page 18: Specifications
IR remote & TCP/IP controlled by PTNET(PTN's programmable Optional interface) General Temperature -10 ~ +40℃ Humidity 10% ~ 90% Standby DC 24V 2.71A power Power Power adapter Supply Consumption Case W130 x H44 x Product 0.86Kg Dimension D144mm (1U high) Weight Altimium www.altimium.com... -
Page 19: Panel Drawing
40W Power Amplifier 6. Panel Drawing 130 mm 13 mm 44 mm 157 mm Figure 13 Panel Drawing Altimium www.altimium.com... -
Page 20: Troubleshooting And Maintenance
Send it to the dealer for by front panel buttons, Broken unit repairing. RS232 port or IR remote If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. Altimium www.altimium.com... -
Page 21: After-Sales Service
40W Power Amplifier 8. After-sales Service 1) If there appear some problems when running AMP3V, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases. - Page 24 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
