Atronic e-motion™
Installation Manual
Rev. 2.3
October 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e-motion and is the answer not in the manual?

Questions and answers

Summary of Contents for Atronic e-motion

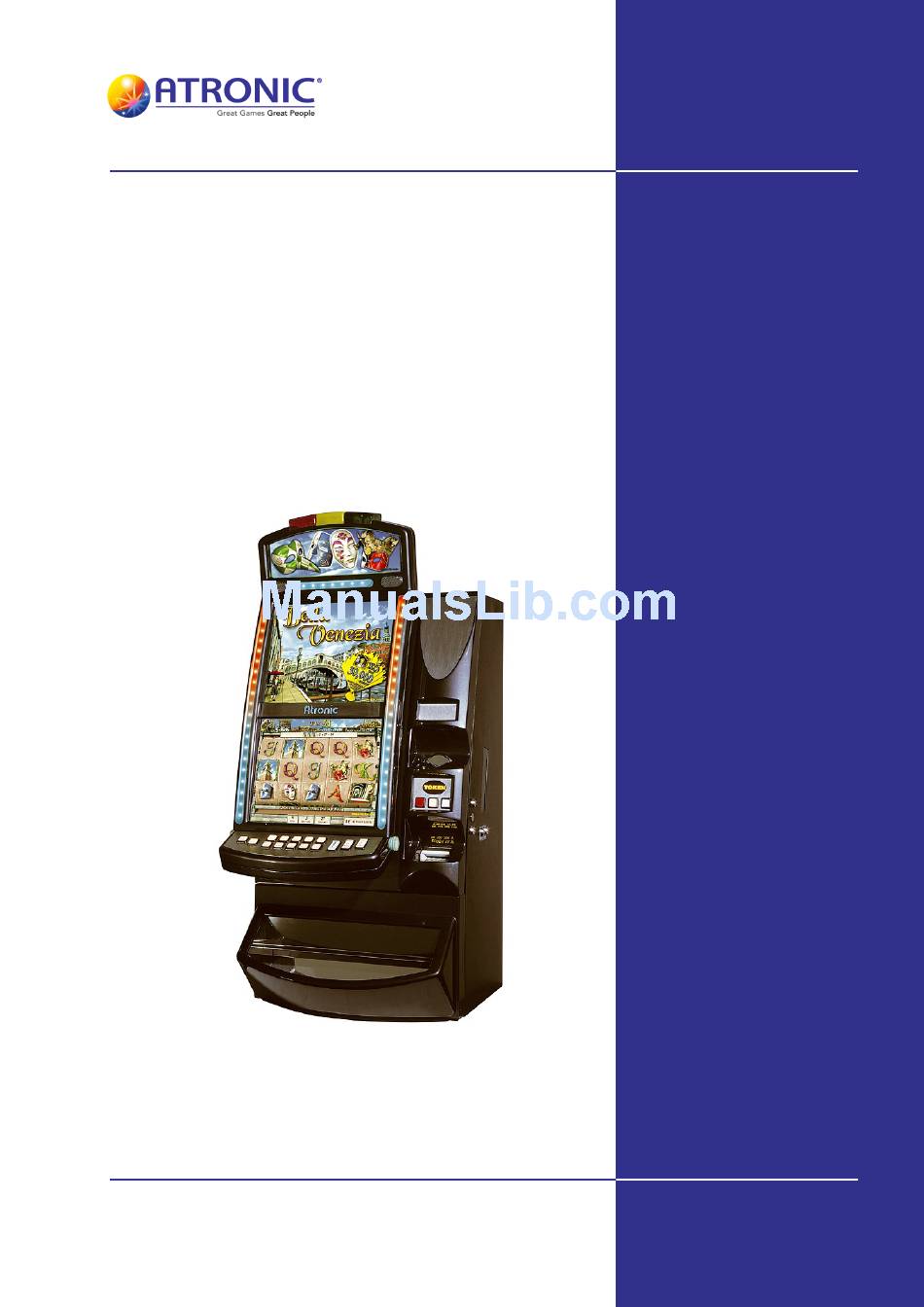

  • Page 1 Atronic e-motion™ Installation Manual Rev. 2.3 October 2008...
  • Page 2: Release Info

    Atronic makes no representation or warranties, express or implied, with respect to this publication, or any product of Atronic, including but not limited to warranties of merchantability or fitness for any par- ticular purpose. Atronic reserves the right to make changes, enhancements, revisions and alterations of any kind to this publication or the product(s) it covers without obligation to notify any person, institu- tion or organization of such changes, enhancements, revisions and alterations.
  • Page 3: Table Of Contents

    7.6 Check cables and connectors ..............16 7.7 Check Commboard Settings ..............16 7.8 Apply Power ....................17 8. Basic Setup ........................18 9. Tests ..........................19 9.1 Test Bill and Coin Handling ...............19 10. Technical Support Telephone numbers ............20 11. Drilling Template ....................21 e-motion™ Installation Manual...
  • Page 4: About This Manual

    2. About this Manual About this Manual Scope This Installation Manual describes how to install an Atronic e- motion™ gaming machines. It describes how to mount the machine to a base stand and relevant procedures to be carried out before the machine can be put into operation.
  • Page 5: Related Publications

    Note: All mentioned manuals can be found on a CD-ROM titled “Atronic Service Manual 2008” or www.atronic.com* If this manual did not came with this CD-ROM, please ask Atronic Technical Service for a free copy of the latest revision. * to gain access an active Gamebook account is necessary.
  • Page 6: Safety Instructions

    Safety Instructions Note! This installation module of the e-motion™ Hi(!)bility includes only information relating to the installation of the e-motion™ cabinet. For other machine or cabinet types please refer to the relevant manuals. Follow the safety instructions below and on the next page, to ensure safe operation.
  • Page 7 Use in dry conditions only. • Please refer to relevant Atronic service manuals for further instructions on setup, operation and maintenance. e-motion™ Installation Manual...
  • Page 8: Machine Components

    Adjustment Mechanical Meters Button Panel Main Door Lock Jackpot Key Switch Audit Key Switch Hopper Drawer Hopper Drawer Lock Coin Bowl Bill Entry / Bill Acceptor Bill Decal Name Plate Atronic Installation Station (AIS) (Baseplate for mounting) e-motion™ Installation Manual...
  • Page 9: Opened Cabinet

    Reset Button Service Button Multimedia Board Cover Maindoor Switch Coin Unit Assembly Coin Acceptor Coin Optics Bill Acceptor Front Bezel Decal Lighting Bill Acceptor Door Motor Button Panel Cashbox Release Lever Power Supply (auxiliary) AC Output Power Switch e-motion™ Installation Manual...
  • Page 10: Logic Box

    4. Machine Components Logic Box Logicbox Switch Backplane Release Lever for Commboard Multimediaboard Cover Mainboard DVD-ROM Drive Multimediaboard Graphic Card Multimediaboard (VP11) Cover e-motion™ Installation Manual...
  • Page 11: Dimensions

    610 mm / 24” Depth: max. 590 mm / 23.2” (575 opened closed 685 (mm) e-motion™ Cabinet with Topper Weight: approx. 129 Kg / 284 lbs. Overall dimensions closed cabinet Height: max. 1643 mm / 64.7” Width: 610 mm / 24”...
  • Page 12: Technical Data

    Fluorescent Lamp TL8W/33 Lamps 300mm, 410 lumen, 4100K (cool white) Button Lighting LED 12V Environmental specifications Operating Temperature: 0°C - 45°C (32°F - 113°F) Suggested Limits Operating Humidity: 0% - 85% (non condensing) (same limits for storage) e-motion™ Installation Manual...
  • Page 13: Machine Installation

    Check that all EPROMs are correctly seated on the boards. Prepare the machine bases by drilling the mounting holes. Use the Atronic drilling template for proper mounting hole placement. Place and mount the machine to the base, using the Atronic Installation Station (AIS).
  • Page 14: 7.2 Machine Mounting

    1. Use the Atronic Installation Station (AIS), supplied by Atronic, to mark the holes on the base before drilling. Make sure to leave min. 180mm (7.1”) distance to the next machine or a wall on both sides of the cabinet.
  • Page 15: Replace Shipping Locks

    Replace Shipping Locks If not ordered otherwise, Atronic machines are equipped with shipping locks for easy commisioning. These locks have to be replaced by casino specific locks to provide appropriate secu- rity.
  • Page 16: Prepare Coin Acceptor (Cc-16 / Mc-16)

    Use the DIP switch tables within manual “Software / Basic Logic Box Setup” for a particular software version (e.g. C5.1.x) to check Cover or alter the commboard settings. Then connect to the online system components. e-motion™ Installation Manual...
  • Page 17: Apply Power

    At this point the machine installation is finished. Proceed with Basic Setup (Initial Setup and Service Menu set- tings). Please refer to the software manual for a particular software version for details, e.g. Manual HI Software (C5.x.x.x STD) e-motion™ Installation Manual...
  • Page 18: Basic Setup

    Initial Setup menu. The Initial Setup allows to configure all basic machine setting. 4. Carry out (Progressive) Jackpot Configuration A PC or notebook with Atronic’s Alink Config software is connected to the gaming machine and uploads the pro- gressive jackpot configuration data.
  • Page 19: Tests

    Test hopper payout and switching times Test with Stacking”. -> / Hopper / Hopper 1 Note: Please refer to the document “Manual HI Software (ver- sion)” relevant for a particular software version (e.g. C5.1.x.x) for detailed information. e-motion™ Installation Manual...
  • Page 20: Technical Support Telephone Numbers

    1727 855 966 Atronic Russia (+7) 495 7377 299 If technical assistance is required outside of normal business hours, please contact one of the Atronic Technical Hotline numbers below. Atronic Technical Hotline numbers: For technical assistance in Europe, South Africa, Asia, Central and South America...
  • Page 21: 11. Drilling Template

    117.5 Baseplate (AIS) Ø 10mm Ø 10mm e-motion & Harmony 307.5 Cabinet Drilling Template Make sure to leave min. 180mm (7.1”) distance to the next machine or a wall on both sides of the cabinet. Do not cover the ventilation slots at the backside of the cabinet.
