1. Switch the NETBOOK PRO off.
2. Slide the backup-battery cover towards the front of
the NETBOOK PRO.
3. Remove the AAA cells.
4. Insert replacement alkaline AAA cells, observing
the polarity indication.
5. Slide the cover back over the batteries.

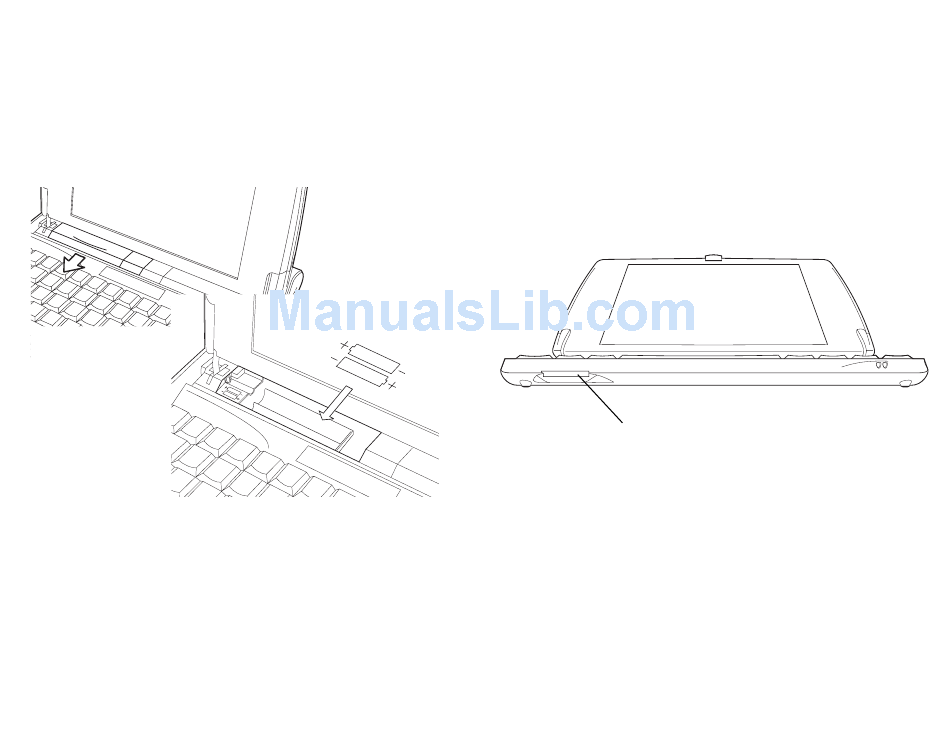

Figure 2.7 Backup Battery Removal
Important: If both the batteries run out of power you will
lose all your information on the internal disk.

2.2.2 Multimedia And Secure Digital Cards

Multimedia cards (MMCs) and Secure Digital cards (SDs),
which fit into a dedicated slot in the NETBOOK PRO, can be
non-volatile memory cards (used to store application soft-
ware and/or data). They can also be communications or inter-
face cards.
The MMC slot is located on the front of the NETBOOK
PRO.
Inserting And Removing An MMC Or SD Card
• Push the card into the card slot until it clicks.
• To remove a card, push the card inwards. It 'bounces'
and pops outwards, and can then be pulled out.
Store your MMC or SD card safely.
MMC/SD Slot
Figure 2.8 MMC/SD Slot Location

2.2.3 Compact Flash Cards

Compact Flash (CF) cards, which fit into a dedicated slot in
the NETBOOK PRO, can be non-volatile memory cards
(used to store application software and/or data). They can
also be communications or interface cards.
The CF slot is located on the left side of the NETBOOK
PRO.
Inserting And Removing A CF Card
Psion Teklogix NETBOOK PRO Win CE Quick Start Guide 11
