MileSeey P7 Series Quick Start Manual

Laser distance meter
Hide thumbs

Advertisement

Table of Contents

Laser Distance Meter
P7 Series Quick Start
Product Overview
Thank you for using MileSeey handheld laser distance meter, please read the
instruction carefully before operation.
P7 will be one of milestone products in laserdistance history developed by MileSeey.
Thanks to creative skeleton design, robusthousing, compact inner structure, P7
offers the perfect features of IP65 waterproof, drop-resistance and super long
lifespan. With 2-inch colored touch display and tempered glass cover on the surface,
it enables user to operate freely. P7 has been approved by international authorized
lab that water and dust proof could reach IP65.
P7 integrated 4xZoom camera, which could help find the target in sunshine or long
distance, as well as enables user to measure more accurate within the extended
range of 200 meters. It also introduces smart Bluetooth connectivity to App, tilt
sensor and rechargeable NI-MH batteries.
MileSeey is the original developer of P2P measurement in laser distance meter
industry.What's more, P7 also offers comprehensive measuring functions of Area,
Volume,Pythagoras, Auto Level, Auto Height etc.which can meet the measurement
needs of most people and provide high-quality
measurement experience for your try.

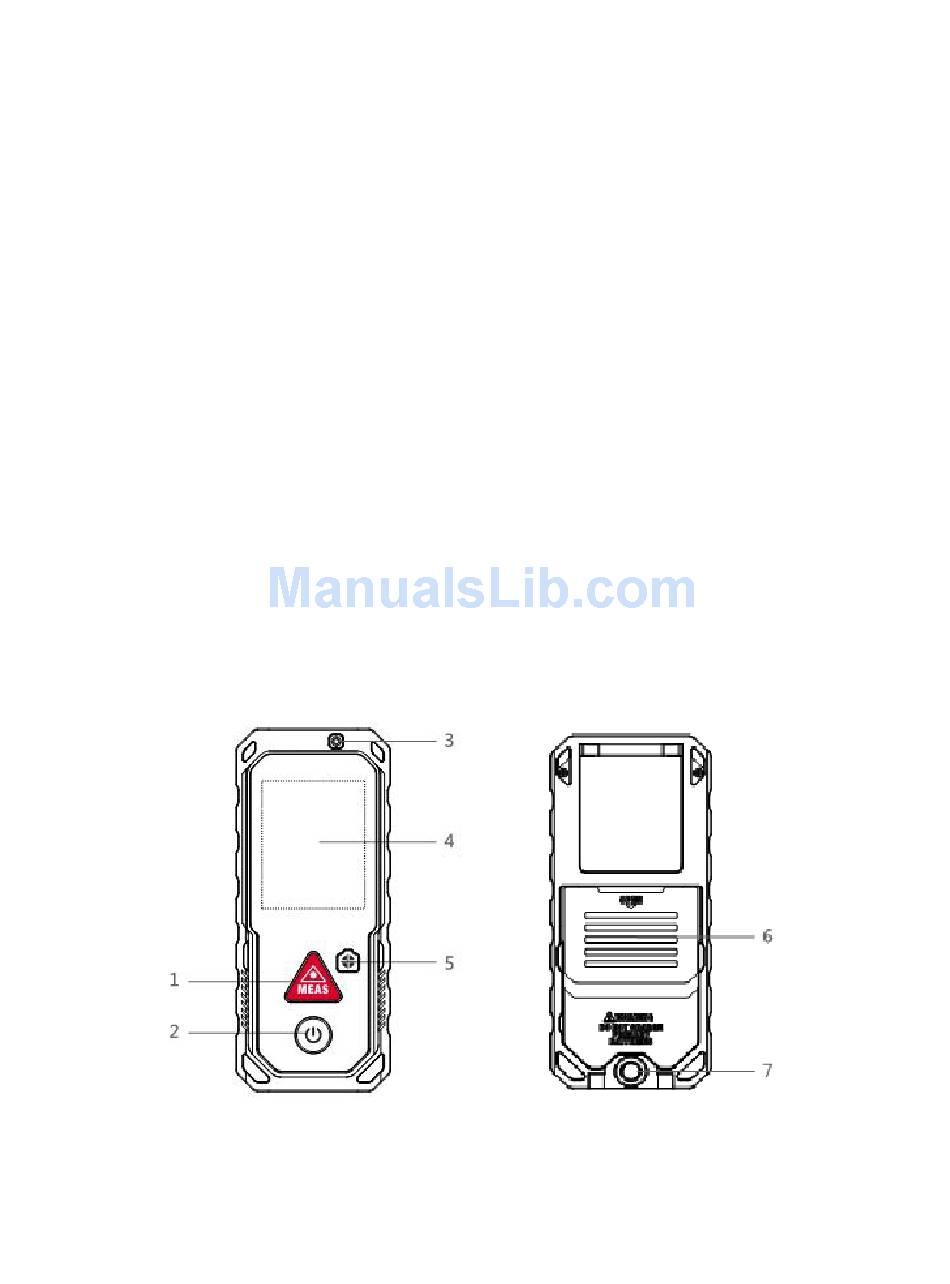

Appearance
1. Measure Button
Activate the measuring mode, press button to
measure.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P7 Series and is the answer not in the manual?

Questions and answers

Related Manuals for MileSeey P7 Series

Summary of Contents for MileSeey P7 Series

  • Page 1 Thank you for using MileSeey handheld laser distance meter, please read the instruction carefully before operation. P7 will be one of milestone products in laserdistance history developed by MileSeey. Thanks to creative skeleton design, robusthousing, compact inner structure, P7 offers the perfect features of IP65 waterproof, drop-resistance and super long lifespan.

  • Page 2: Safety Instructions

    2.ON/OFF/Clear/Return Button Long press to switch ON/OFF, short press to clear the previous operations or return to main menu. 3. Laser Emitter Indication 4. Touch Screen 5. Pointfinder Capture and locate the target in long range. 6. Battery Compartment 7.Tripod Screw Hole Safety Instructions The safety instructions should be read through carefully before the product is used for the first time.

  • Page 3: Battery Installation And Instructions

    2,Scope of Responsibility MileSeey will not be responsible for the damages caused by improper use below: *Using the product without instruction; *Use of accessories from othermanufacturers without approval from MileSeey ;...
  • Page 4 Any damage caused by improper use of charging dry battery is not covered by the warranty, MileSeey will not beresponsible for it.While charging, the device may heat up, thisis normal, and will not affect the product performance and lifetime.

  • Page 5: Specification

    Please unplug the charger and take off the batteries when not in use. Warning: Do not use aggressive cleaning agents or solutions. Use only a clean, soft cloth for cleaning. Specification Specification Measuring Range 0.2-200 Measuring Accuracy ±(2.0mm+5x10 Single Distance Measurement Continuous Measurement...

  • Page 6: Touchscreen Operations

    Dimension 115*49*26mm 1. Measuring Range The Maximum range shall be different according to different models. The actual range refers to the package. 2. Measuring Accuracy("D" stands for measured distance)If measuring under favorable conditions, such as smooth surface, proper temperature and indoor lighting, the device is able to work within certain range as indicated.
  • Page 7 Slide down to setup menu, pull up to retract it.
  • Page 8 Bluetooth Press to activate or de-activate the Bluetooth to remotely control the measurement by connecting with App, 3 modes can be selected. 1.Automatic Bluetooth Transfer Mode:Upload the measurement data to App automatically. 2.Manual Bluetooth Transfer Mode:Press to select , in any measurement mode, click Bluetooth icon on status bar to transfer current data to App.

  • Page 9: Operation Instructions

    Digital Level Digital level Press to activate d , the electronic tilt sensor makes it easier to achieve horizontal alignment with the real-time measuring angle. R Screen otation Activate screen orientation setting; it will automatically switch to LANDSCAPE display when the device placed horizontally. Memory Press or Press to recall memory values.slide to view history values, press to delete the selected records.

  • Page 10: Single Distance Measurement

    The measuring data should be different due to different reference settings. Power on the device, measure in the certain distance within ±2mm accuracy, it can work properly. Single Distance Measurement The device will come to Single distance measurement when it is switched ON. Press after aiming at target to get result in summary line.

  • Page 11: Volume Measurement

    Volume Measurement According to reminding of the red line,press to get the distance for 1st line(e.g Length),press again for 2nd line(e.g Width), press third time for 3rd line (e.g Height), theVolume is calculated and displayed in the summary line. Pythagoras (2-point) According to reminding of the red line, press to get the distance of 1st line, change to the horizontal direction of the object from the fixed measuring point, press...
  • Page 12 Auto Level Measurement According to reminding of the red line,press to get the distance of hypotenuse, vertical and horizontal lines, the result is displayed in line accordingly. Auto Height Measurement According to reminding of the red line,press to get the distance for 1st line; press again for 2nd line, then you can get vertical height displayed in summary line.

  • Page 13: Troubleshooting

    Add/Subtract Under the mode of Distance, Area and Volume measurement, slide to left to Add/subtract Menu, press "+" or "-" to make add/subtraction calculations on the basis of previous record, the result is displayed in the summary line. Point-finder No matter under any measuring circumstances, when the laser dot can’t beconfirmed, press to locate the target on the screen.

  • Page 14: App Download

    Liuxian Ave, Taoyuan Street, Nanshan District,Shenzhen, 518055, P.R. China. Copyrights The product specifications are subject to change without notice, all final interpretation rights were reserved by Mileseey Technology Co., Ltd. All trademarks, product images,technical parameters are properties of Mileseey Technology Co., Ltd. All rights reserved.
