Wipaire 8750 Service Manual

Amphibious/seaplane float on the cessna model 208/208b caravan
Hide thumbs Also See for 8750:
Table of Contents

Advertisement

Quick Links

Download this manual

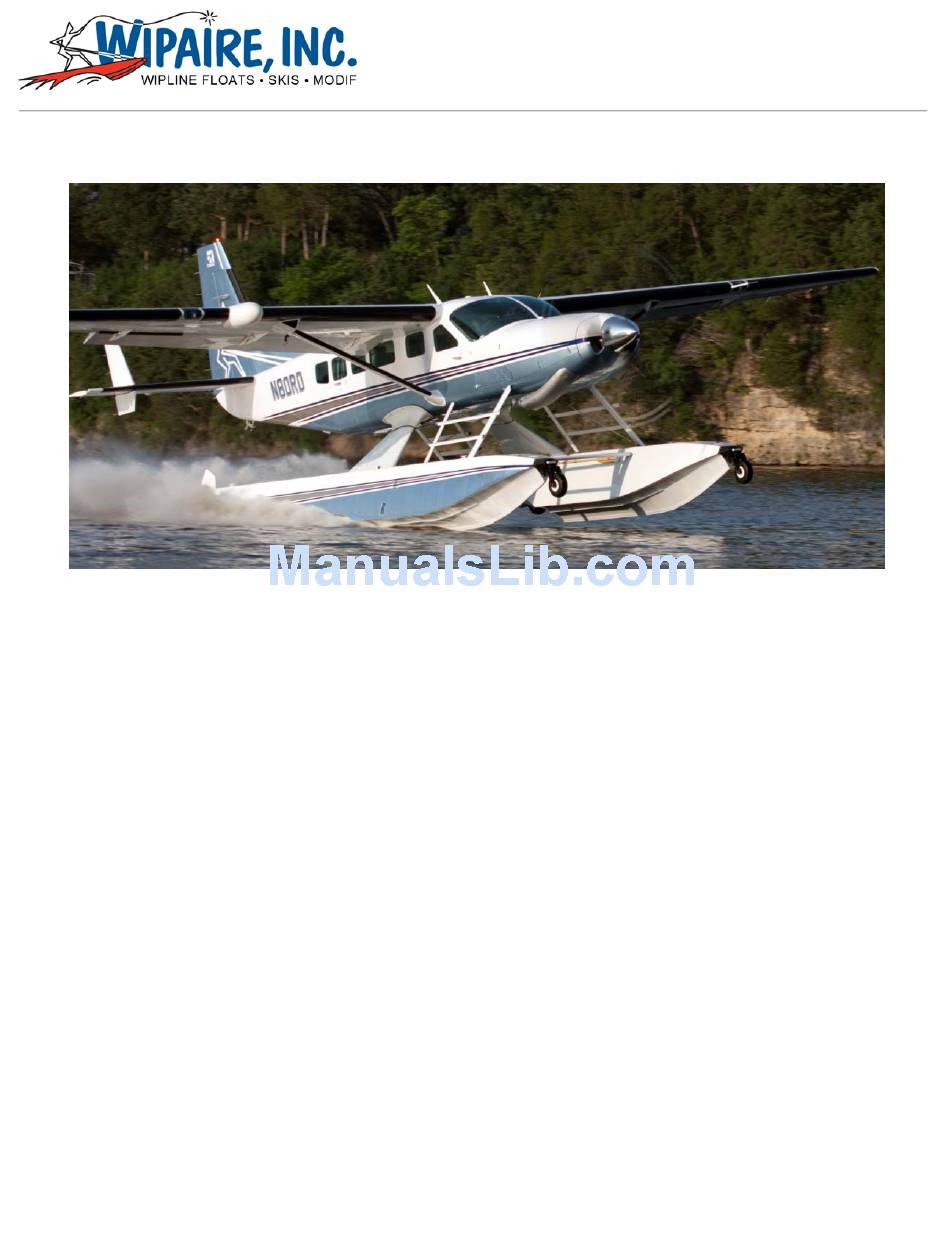

WIPLINE FLOATS • SKIS • MODIFICATIONS • AIRCRAFT SALES
AVIONICS • INTERIOR • MAINTENANCE • PAINT REFINISHING

CONTINUED AIRWORTHINESS
AMPHIBIOUS/SEAPLANE FLOAT
CESSNA MODEL 208/208B CARAVAN
Revision B
SERVICE MANUAL
and
INSTRUCTIONS FOR
for the
WIPAIRE MODEL 8750
ON THE
P/N 1005723 Doc. No. W8750-24-01
