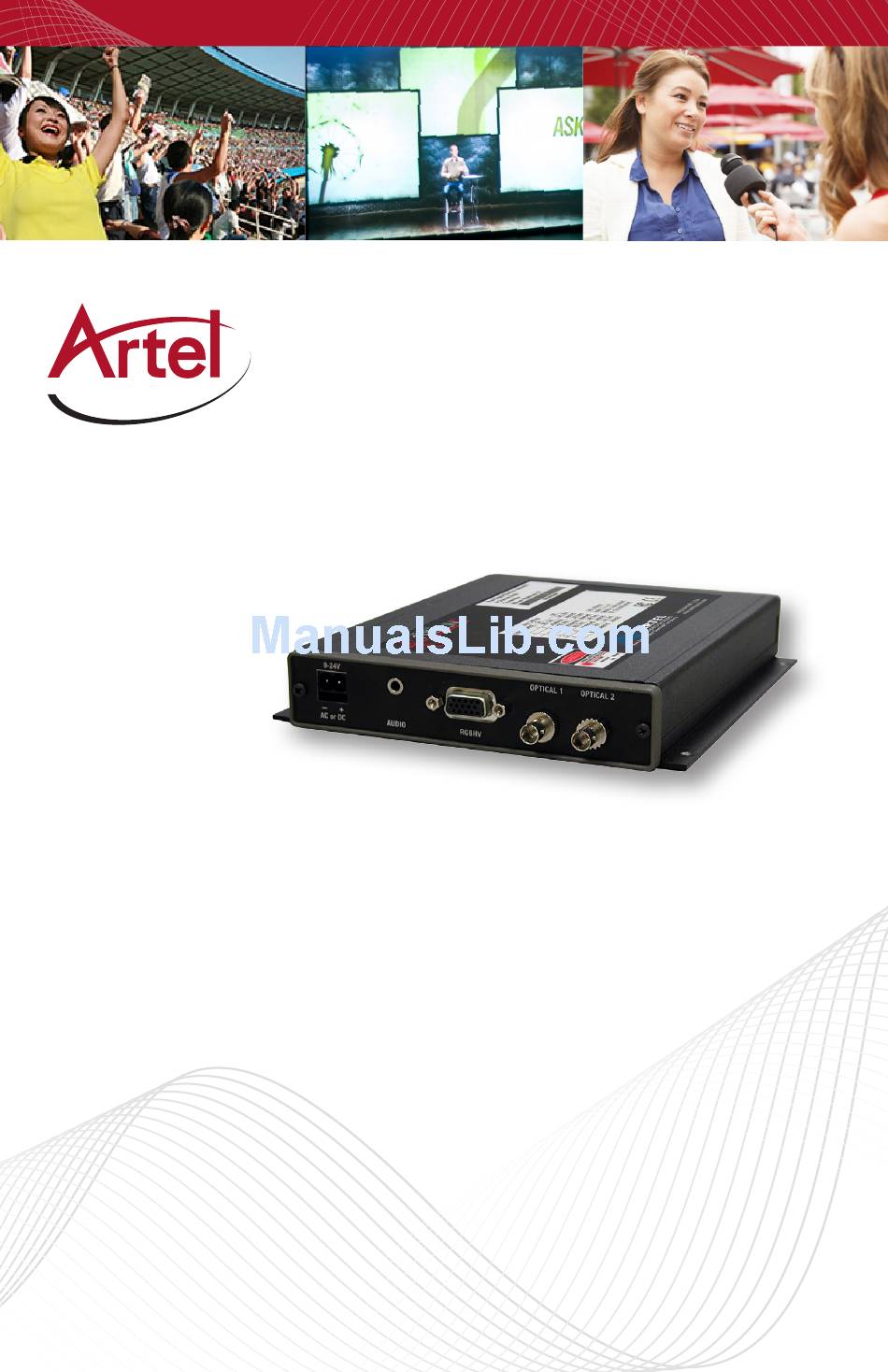

- Page 1 MANUAL FiberLink 7250 Series Hi-Res RGB with Stereo Audio Over Two Fibers Installation and Operations Manual WWW.ARTEL.COM...
-
Page 2: Table Of Contents
Contents FiberLink 7250 Series Contents Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Features . -
Page 3: Welcome
Welcome | Features | Package Contents FiberLink 7250 Series Welcome The FiberLink 7250 Series is a transmitter/receiver pair that transmits a single channel of RGBHV video (up to WUXGA) and two audio channels over two single mode or multimode fibers . It is available as a free-standing box unit or as a card version for use in the rackmount- able 6000A card cage . -
Page 4: Technical Specifications
Technical Specifications FiberLink 7250 Series Technical Specifications Model Part Number Specification Unit Type Part Number Transmitter Box 7250-B7S Transmitter Rack Card 7250-C7S Receiver Box 7251-B7S Receiver Rack Card 7251-C7S Video Specifications Input Impedance RGB: 75 Ohms; H&V: Hi-Z Input Level RGB: 714 mV p-p;... - Page 5 Technical Specifications FiberLink 7250 Series Technical Specifications Optical Operating Wavelength 1310nm; MM or SM Optical Fiber 62 .5/125 microns MM, 50/125 microns MM or 8-10/125 microns SM Optical Connector Allowable Diff . Fiber Length 20 meters Class I Laser Product complies with FDA performance standard for laser products, Title 21, Code of Federal Regulations, Sub-Chapter J Loss Budget and Maximum Transmission Distance Wavelength...
-
Page 6: Installation Instructions
Installation Instructions FiberLink 7250 Series Installation Instructions The FiberLink 7250 Series transmission system is ready for immediate use . There are indica- tor LEDs on the units for monitoring purposes . The following instructions describe the typical installation procedure and the function of the LED indicators . Connect the video source to the video input HD-15F connector on the transmitter unit . -
Page 7: System Connections
Video Pin Out FiberLink 7250 Series System Connections The input and output connections for the FiberLink 7250 and 7251 units are as follows: Audio Connector Transmitter & Receiver: 3 .5mm stereo jack Video Connector Transmitter & Receiver: HD-15F connector Video Pin Out Video Pin Out Transmitter Receiver... -
Page 8: Alarm Switch Settings
Alarm Switch Settings FiberLink 7250 Series Alarm Switch Settings Transmitter, Card Version Only Switch Alarm Indication Position Loss of Video Enabled Disabled Receiver, Card Version Only Switch Alarm Indication Position Loss of Signal Enabled Disabled Loss of Video Enabled Disabled Indicator LEDs The stand-alone box versions of the FiberLink 7250 and 7251 units have three integral indicator LEDs that are used to monitor the state of the units. -
Page 9: Indicator Leds
Indicator LEDs FiberLink 7250 Series Receiver LEDs Status Definition Power On (Green) Indicates that corrrect power has been applied Video Indicates no video detected over fiber and, as a result, no video present on the output . Blinking Green Indicates either H or V sync detected at the input, but not both Steady Green Indicates both H and V sync detected over... - Page 10 Operating Pointers | Troubleshooting FiberLink 7250 Series Optical Fiber The 7250 Series operates with most multimode (MM) and single mode (SM) optical fibers. However, be aware that the type of fiber you use will affect the system’s loss budget and the maximum transmission distance that it can support.
-
Page 11: Maintenance And Repairs
It has been designed for long, reliable and trouble-free service and are not normally field repairable. Should difficulty be encountered, Artel Video Systems maintains a complete service facility to render accurate, timely and reliable service of all products. - Page 12 • Solutions for most video, audio, and data formats • Multimode and single mode versions • Designed and manufactured in the USA • Training and installation support available • 24x7x365 technical support available Artel Video Systems Corp. 5B Lyberty Way, Westford, MA 01886 USA T: 978-263-5775 F: 978-263-9755 All specifications subject to sales@artel.com...
