Artel FiberLink 7240 Installation And Operation Manual

7240 series rgb, stereo audio, ethernet and two way data over fiber

Advertisement

Quick Links

MANUAL
FiberLink
7240 Series
RGB, Stereo Audio, Ethernet and
Two Way Data over Fiber
Installation and Operations
Manual
WWW.ARTEL.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FiberLink 7240 and is the answer not in the manual?

Questions and answers

Summary of Contents for Artel FiberLink 7240

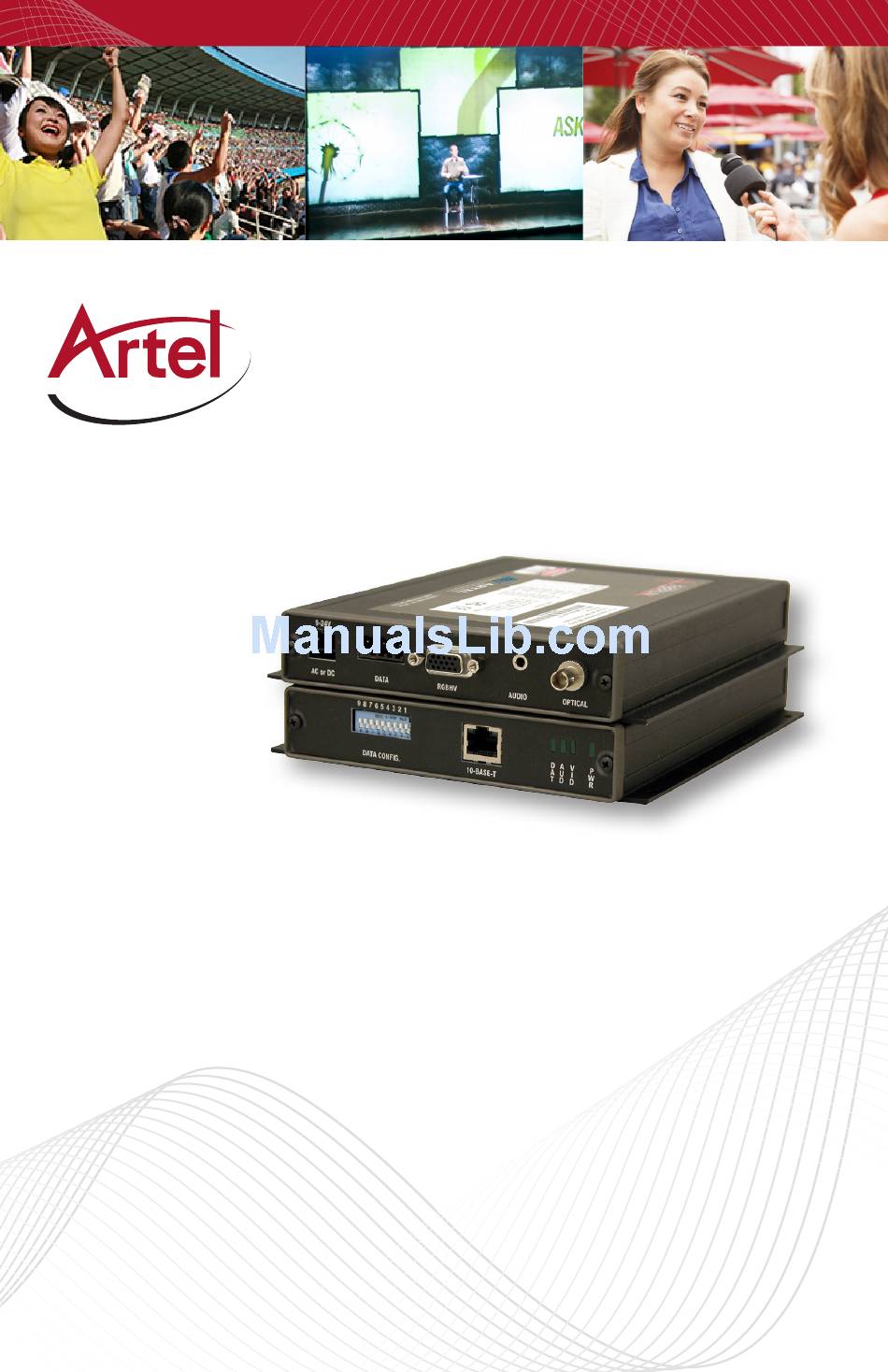

  • Page 1 MANUAL FiberLink 7240 Series RGB, Stereo Audio, Ethernet and Two Way Data over Fiber Installation and Operations Manual WWW.ARTEL.COM...
  • Page 2: Table Of Contents

    Maintenance and Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Page 2 FiberLink 7240 Series User’s Manual...
  • Page 3: Welcome

    FiberLink 7240 Series Welcome The FiberLink 7240/7241 transmitter/receiver pair transmits a single channel of RGBHV, stereo audio, bi-directional data and bi-directional ethernet signals all over one single mode or multimode fiber . The system’s transparent 10Base-T support enables communication between a local device, such as a projector or media controller, and a local area network (LAN) server .
  • Page 4: Technical Specifications

    0 .005%; 20 Hz - 20 kHz SNR (A-Weighted) 95 dB Channel Phase Differential +/-0 .1 Crosstalk Min . 95 dB (1 kHz) Signal Connectors 3 .5mm Stereo jack Audio to Video Diff . Delay (skew) <300 uS Page 4 FiberLink 7240 Series User’s Manual...
  • Page 5 *Distance specifications are only approximate and are not guaranteed. Operating loss budget must not be exceeded. The transmitting element in the FiberLink 7240 and 7241 transmitter unit contains a solid state Laser Diode located in the optical connector. This device emits invisible infrared electromagnetic radiation which can be harmful to human eyes.
  • Page 6: Installation Instructions

    Installation Instructions FiberLink 7240 Series Installation Instructions The FiberLink 7240 and 7241 come ready for immediate use . There are indicator LEDs on the units for monitoring purposes . The following instructions describe the typical installation procedure: 1 . Connect the video source to the video input HD connector on the transmitter unit .
  • Page 7: Video Pin Out

    Video Pin Out FiberLink 7240 Series System Connections The input and output connections for the FiberLink 7240 and 7241 units are as follows: Audio Connector Transmitter & Receiver: 3 .5mm stereo jack Video Connector Transmitter & Receiver: HD-15F connector Video Pin Out...
  • Page 8 Signal being received (+) Position 4 Signal being received (-) Posting G Shield Ground RS-2485 2-wire Position 1 Signal being transmitted or received (+) Position 3 Signal being transmitted or received (-) Posting G Shield Ground Page 8 FiberLink 7240 Series User’s Manual...
  • Page 9: Alarm Switch Settings

    Loss of Signal Enabled Disabled Loss of Video Enabled Disabled Note: “Loss of Video” refers to either loss of horizontal or vertical sync. “Loss of Signal” refers to the absence of an optical signal. FiberLink 7240 Series User’s Manual Page 9...
  • Page 10: System Switch Settings

    Switch position 8: When switch is on, then 120 Ohm termination is applied to data input. Switch position 9: When switch is on, then 120 Ohm termination is applied to data output . Page 10 FiberLink 7240 Series User’s Manual...
  • Page 11: Indicator Leds

    FiberLink 7240 Series Indicator LEDs The stand-alone box versions of the FiberLink 7240 and 7241 units have four integral indicator LEDs that are used to monitor the state of the units. The rack card versions of these products have an additional red indicator LED that lights when an alarm condition exists.
  • Page 12 . Data No data detected to or from the receiver unit Blinking Indicates active data detected to or from the receiver unit Alarm Loss of video or optical signal (rack card only) Page 12 FiberLink 7240 Series User’s Manual...
  • Page 13: Operating Pointers

    Even when installed exactly as directed, it is possible that the data function may fail to operate properly when using the FiberLink 7240/7241 units in the RS-485 2-wire auto transmit/receive mode. If this problem occurs, it may be that your units are attempting to interface with other manufacturers’...
  • Page 14: Maintenance And Repairs

    FiberLink 7240 Series Maintenance and Repairs The FiberLink 7240 and 7241 have been manufactured using the latest semiconductor devices and techniques that electronic technology has to offer. The units have been designed for long, reliable and trouble-free service and are not normally field repairable.
  • Page 15 FiberLink 7240 Series FiberLink 7240 Series User’s Manual Page 15...
