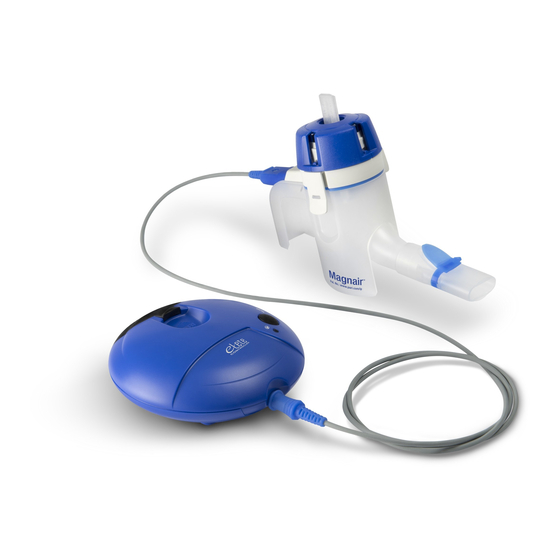

MAGNAIR
NEBULIZER SYSTEM INSTRUCTIONS FOR USE
™
For use with LONHALA™ (glycopyrrolate) Inhalation Solution only
Assembly required. LONHALA vials packaged separately.
Warning
Read and understand these Instructions for Use and all safety precautions
it contains. Improper use can cause serious or fatal injury/illness.
Warning
Read and understand the full Patient Information (PI) for information and
warnings related to LONHALA. The PI is contained in the LONHALA box.
Marketed by:

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lonhala Magnair and is the answer not in the manual?

Questions and answers

Related Manuals for Pari Lonhala Magnair

Summary of Contents for Pari Lonhala Magnair

  • Page 1 MAGNAIR NEBULIZER SYSTEM INSTRUCTIONS FOR USE ™ For use with LONHALA™ (glycopyrrolate) Inhalation Solution only Assembly required. LONHALA vials packaged separately. Warning Read and understand these Instructions for Use and all safety precautions it contains. Improper use can cause serious or fatal injury/illness. Warning Read and understand the full Patient Information (PI) for information and Marketed by:...

  • Page 2: Table Of Contents

    B. Getting Started ............................5 C. Steps for Using Batteries or AC Adapter with MAGNAIR ................6 D. Assembling Your MAGNAIR ........................8 E. Using LONHALA MAGNAIR ........................11 F. Cleaning the Handset ..........................15 G. Troubleshooting ............................20 H. Specifications ............................23...

  • Page 3: Safety Precautions

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use A. SAFETY PRECAUTIONS These Instructions for Use contain information and safety precautions for MAGNAIR (MAGG-nair) Nebulizer System for use with LONHALA (lon-HAL-luh) (glycopyrrolate) Inhalation Solution. Warning MAGNAIR is designed specifically for use only with LONHALA. To reduce the risk of severe or fatal injury/illness, Never use other medications in MAGNAIR.
  • Page 4 For use with LONHALA (glycopyrrolate) Inhalation Solution A. SAFETY PRECAUTIONS (cont.) Instructions for Use Warnings 5. Always unplug this product from AC power immediately after using and before cleaning. 6. Before use, check your Controller and Handset for proper assembly. All parts must be connected and firmly in place. Use of an improperly assembled MAGNAIR could diminish or eliminate the effectiveness of the treatment.

  • Page 5: Getting Started

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use B. GETTING STARTED Check to make sure you have all of the following MAGNAIR parts and become familiar with how to identify each piece. If any parts are missing, call the Sunovion Customer Service line (1-888-394-7377).

  • Page 6: Steps For Using Batteries Or Ac Adapter With Magnair

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use C. STEPS FOR USING BATTERIES OR AC ADAPTER WITH MAGNAIR MAGNAIR is designed to be used with AA batteries or with the AC adapter. STEPS FOR USING BATTERIES WITH MAGNAIR Four (4) high quality AA batteries will provide Fig.
  • Page 7 For use with LONHALA (glycopyrrolate) Inhalation Solution C. STEPS FOR USING BATTERIES OR AC ADAPTER WITH MAGNAIR (cont.) Instructions for Use C3. Close the battery door. Fig. C3 Close the battery door To close the battery door, push it closed until of the Controller.

  • Page 8: Assembling Your Magnair

    Your Handset parts (Medication cap, Aerosol head, Handset body, and Mouthpiece) will be replaced when you receive your next supply of LONHALA. Discard your old Handset parts and use the new Handset parts every time you get a LONHALA MAGNAIR Refill Kit. Fig. D2 Open the Handset body.
  • Page 9 For use with LONHALA (glycopyrrolate) Inhalation Solution D. ASSEMBLING YOUR MAGNAIR (cont.) Instructions for Use D4. Close the Handset body, making sure Fig. D4 Close the Handset body. the Aerosol head is properly inserted and the tab is aligned with the notch and level with the Handset body.
  • Page 10 For use with LONHALA (glycopyrrolate) Inhalation Solution D. ASSEMBLING YOUR MAGNAIR (cont.) Instructions for Use D6a. Connect the Controller to the Handset Fig. D6a Connect the Connection body using the Connection cord. cord to the Controller. • One end of the Connection cord has a blue round connector.

  • Page 11: Using Lonhala Magnair

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use E. USING LONHALA MAGNAIR E1. With clean hands, open the foil Fig. E1 Remove the LONHALA vials pouch enough to remove the and separate them. 2 LONHALA vials. Manually separate by twisting apart the...
  • Page 12 For use with LONHALA (glycopyrrolate) Inhalation Solution E. USING LONHALA MAGNAIR (cont.) Instructions for Use E3. Prepare to attach the Medication cap. Fig. E3a Do not touch the part Do Not touch the part of the Handset body that pierces the vial.
  • Page 13 For use with LONHALA (glycopyrrolate) Inhalation Solution E. USING LONHALA MAGNAIR (cont.) Instructions for Use E4. Insert the Mouthpiece into your mouth. Fig. E4 Insert the Mouthpiece into your mouth. Do not tilt the Handset. • Sit in an upright position and relax.
  • Page 14 For use with LONHALA (glycopyrrolate) Inhalation Solution E. USING LONHALA MAGNAIR (cont.) Instructions for Use E6. Breathe in (inhale) and breathe out Fig. E6 Inhale and exhale normally. (exhale) normally through the Mouthpiece. The Mouthpiece should remain in your mouth throughout the treatment period.

  • Page 15: Cleaning The Handset

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use F. CLEANING THE HANDSET Warning To ensure proper operation and to reduce the risk of severe or fatal injury/illness. Important: Rinse and clean the MAGNAIR Handset parts after every use. Use clear liquid dishwashing soap.
  • Page 16 For use with LONHALA (glycopyrrolate) Inhalation Solution F. CLEANING THE HANDSET (cont.) Instructions for Use F3. Remove the LONHALA vial. Fig. F3 Remove the LONHALA vial. Place the top of the Medication cap into the palm of your hand and push up as shown to remove the LONHALA vial.
  • Page 17 For use with LONHALA (glycopyrrolate) Inhalation Solution F. CLEANING THE HANDSET (cont.) Instructions for Use F6. Remove the Aerosol head from the Fig. F6 Remove the Aerosol head from Handset body by lifting the clasp on the side the Handset body. Do not touch of the Handset.
  • Page 18 For use with LONHALA (glycopyrrolate) Inhalation Solution F. CLEANING THE HANDSET (cont.) Instructions for Use F9. Rinse the Handset parts well under Fig. F9 Rinse Handset parts well with warm running warm tap water (approximately running water for about 10 seconds. 10 seconds).
  • Page 19 For use with LONHALA (glycopyrrolate) Inhalation Solution F. CLEANING THE HANDSET (cont.) Instructions for Use F11. Inspect all Handset parts to make sure they are completely clean. If any Handset parts are still dirty, soak the parts in warm soapy water for 5 more minutes. Rinse well with warm running water until clean.

  • Page 20: Troubleshooting

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use G. TROUBLESHOOTING CONTROLLER FEEDBACK INDICATORS Controller Controller Conditions Action Required AUDIBLE SIGNAL VISUAL SIGNAL 1 Brief Beep at start Solid green LED for Normal: generating No action required. of dose. duration of dose.
  • Page 21 For use with LONHALA (glycopyrrolate) Inhalation Solution G. TROUBLESHOOTING (cont.) Instructions for Use POTENTIAL FAULTS AND POSSIBLE CAUSES / RESOLUTIONS Fault Possible Causes / Resolutions MAGNAIR cannot be turned on – No power no green LED and no Beep. The batteries are discharged. Replace them or use the AC adapter.
  • Page 22 For use with LONHALA (glycopyrrolate) Inhalation Solution G. TROUBLESHOOTING (cont.) Instructions for Use POTENTIAL FAULTS AND POSSIBLE CAUSES / RESOLUTIONS Fault Possible Causes / Resolutions MAGNAIR will not switch off Turn MAGNAIR off by pressing the On/Off button. automatically. Aerosol mist continuously Improper Handset assembly.

  • Page 23: Specifications

    For use with LONHALA (glycopyrrolate) Inhalation Solution Instructions for Use H. SPECIFICATIONS ELECTRICAL AC adapter Input ..............100 V-240 V, 50 Hz/60 Hz Output .
  • Page 24 Manufactured by: PARI Respiratory Equipment, Inc., 2412 PARI Way, Midlothian, VA 23112 LONHALA and are trademarks of Sunovion Pharmaceuticals Inc. MAGNAIR is a trademark of PARI Pharma GmbH, used under license. SUNOVION and are registered trademarks of Sumitomo Dainippon Pharma Co., Ltd.
  • Page 25 LONHALA MAGNAIR IFU- 8.25 x 11 Design Firm Document Information: Barcode Information: Colors: Magenta File name: 902011R01_05Dec17_r67.indd Yellow MID: 902011R01 Black Software: InDesign CC2015 Cyan Flat Size: 16.5 in x 11 in PMS 2603 designteam@perigord-as.com Job: 19702 Folded Size: 8.25 in x 11 in...
