Summary of Contents for Westinghouse WRM2400

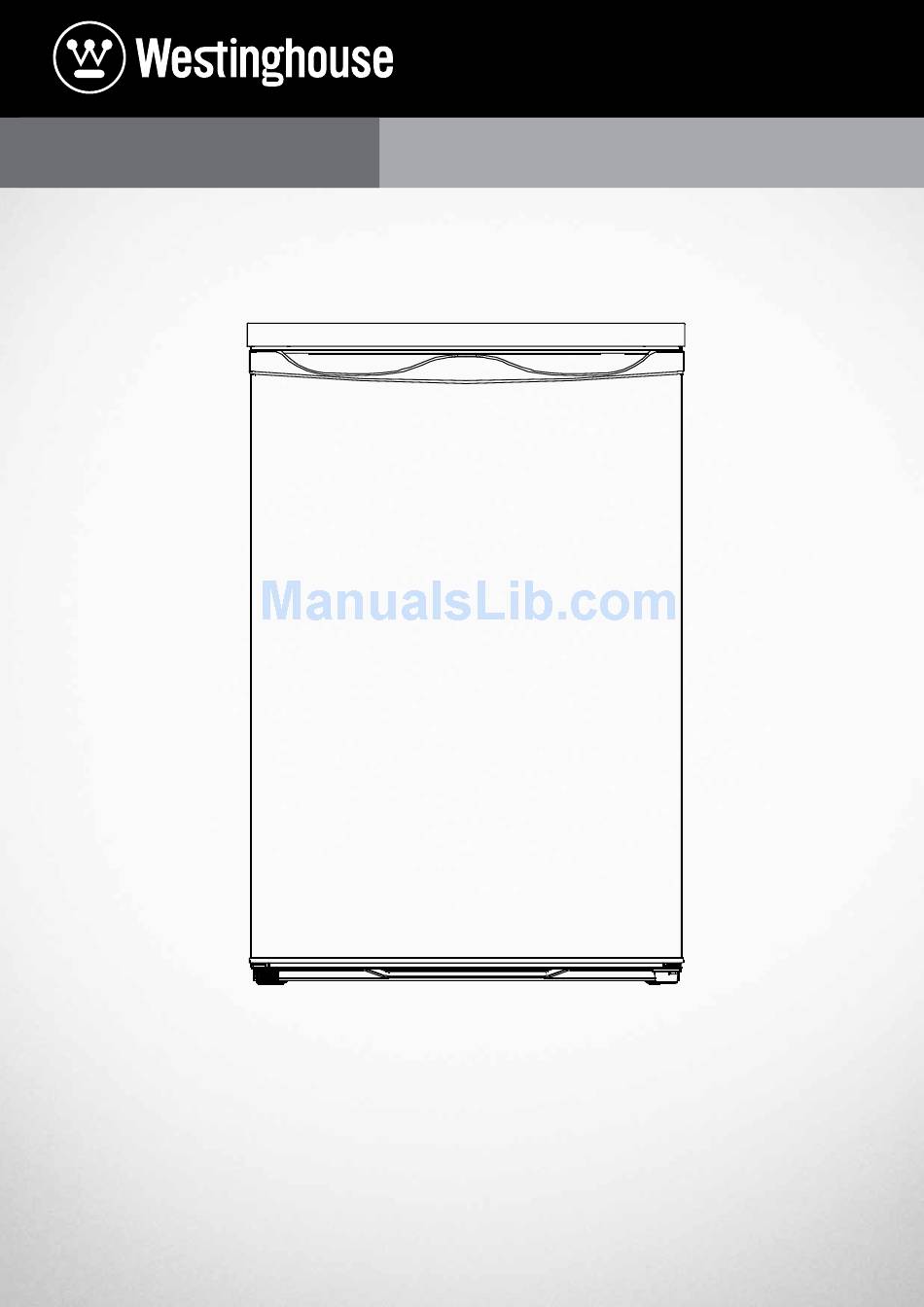

- Page 1 USER MANUAL REFRIGERATION Bar Fridges with Ice Box, All Refrigerators and Upright Freezers...
-
Page 2: Table Of Contents
Conditions of Use WIM1000 ..................14 Reversing the door opening direction This appliance is designed and intended to be used in WRM2400 & WFM1800 ............. 15 normal domestic applications only: Reversing the door opening direction • Staff kitchen areas in shops, offices and other WFM0900, WIM1200, WRM1400 .......... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland WARNING WARNING the Authorised Service Person MUST hold a Gas Work • The refrigerator must be plugged into its own Authorisation for hydrocarbon refrigerants to carry out dedicated 220-240V, 50Hz AC electrical outlet. -
Page 4: Bar Refrigerator With Ice Box Features
BAR REFRIGERATORS WITH ICE BOX FEATURES WIM1000 illustrated WIM1200 illustrated Control knob Door rail Light Door bin Light Switch Ice Cube Tray Ice Box Egg tray Drip Tray Door seal Glass shelf Drain hole Glass Crisper Cover Adjustable levelling leg Crisper Features may vary depending on model. -
Page 5: Bar Refrigerator Without Ice Box Features
BAR REFRIGERATORS WITHOUT ICE BOX FEATURES WRM1400 illustrated Control knob Door seal Light Drain hole Light Switch Adjustable levelling leg Glass shelf Glass Crisper Cover Crisper Door bin Egg tray Features may vary depending on model. Not all models will have features listed. FEATURES... -

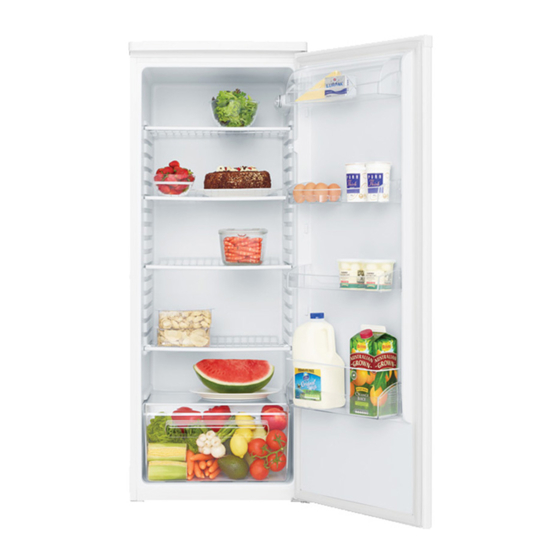

Page 6: Single Door All Refrigerator Features
SINGLE DOOR ALL REFRIGERATOR FEATURES WRM2400 illustrated Control knob Crisper Light lens Levelling leg Fan and housing Door bin cover/lid Light switch Door bin Wire shelf Egg tray Drain hole Door gasket/seal Glass crisper cover Door bin bottom Features may vary depending on model. Not all models will have features listed. -
Page 7: Bar Freezer Features
BAR FREEZER FEATURES WFM0900 illustrated Temperature control Freezer bin Door seal Adjustable levelling leg FEATURES... -
Page 8: Single Door All Freezer Features
SINGLE DOOR ALL FREEZER FEATURES WFM1800 illustrated Control knob Ice tray Freezer bin Ice bin Freezer bin bottom Door gasket Levelling leg Features may vary depending on model. Not all models will have features listed. WFM1800SC has grey outer cabinet. Refrigerator door is silver metal look. WFM1800WC has white cabinet and door. FEATURES... -
Page 9: Installing Your New Appliance
INSTALLING YOUR NEW APPLIANCE Adequate ventilation around your refrigerator. Move the appliance into its final position. Before you move your appliance into the place where it If the appliance is not tilting back as described will operate, check that it will have adequate clearance. earlier, minor adjustments can be made to the Clearance is required for air circulation and too little two front levelling legs by turning the feet in an... -
Page 10: Initial Start-Up - Fridge
Colder must wait 3 to 5 minutes before restarting the unit. If you attempt to restart the unit before this time delay, the WRM2400 refrigerator will not start. When the thermostat is turned to it’s lowest setting and past the point of resistance, the appliance will not Less Cold operate. -
Page 11: Using Your Appliance - Ice Box Models
The de-icing system for the fridge compartment is automatic in models WIM1200, and vertical fridges WRM1400 and WRM2400. The rear inside of the fridge is covered with frost when the compressor operates and de-ices when it stops. When the ice melts, the water Models WIM1200, WRM1400 and WRM2400 have an evaporates automatically. -
Page 12: Initial Start-Up - Freezer
INITIAL START-UP – FREEZER Controls Your freezer was cleaned and polished before it left the factory. Before use, dust and wipe over inside and out The temperature control is located on top of the front using a clean dry cloth. right hand side of the cabinet on Models WFM0900 and This product is designed to operate on a power supply WFM1800. -
Page 13: Reversing The Ice Box Door Opening Direction
CHANGING OVER THE ICE BOX DOOR (WIM1200 ONLY) Keep the freezer compartment door closed. Using a screwdriver, remove the mount screw for the installation button, and take the installation button down. Turn the freezer compartment door through 180°, cover the cap on the up door bearing, then fit the door into the up door axle hole. -
Page 14: Reversing The Door Opening Direction Wim1000
REVERSING THE DOOR OPENING DIRECTION (WIM1000) In these examples the operation is changed from right • Support the door from below and remove the two side hinging to left side hinging. screws (1) that secure the hinge (2) to the bottom right side of the appliance. -
Page 15: Reversing The Door Opening Direction Wrm2400 & Wfm1800
REVERSING THE DOOR OPENING DIRECTION (WRM2400 & WFM1800) In these examples the operation is changed from right side • Use a flat blade screwdriver to remove the 2 covers at the hinging to left side hinging. rear of the lid. -
Page 16: Reversing The Door Opening Direction
REVERSING THE DOOR OPENING DIRECTION (WFM0900, WIM1200 & WRM1400) The side in which the door opens can be changed Lift the door and place it on a padded surface to from the right side (as supplied) to the left side, if the prevent scratching. -
Page 17: Changing The Light Bulb
LAMP REPLACEMENT LAMP REPLACEMENT (WRM2400) (WIM1000) The reversing of doors or replacement of light bulbs is Switch off the power at the power point and remove not covered by warranty. Assistance, if required can be the cord by pulling the plug. -
Page 18: General Information
GENERAL INFORMATION Cleaning the refrigerator WARNING WARNING BEFORE CLEANING: Turn the refrigerator off at the power point and unplug the cord to prevent any chance of electrocuting yourself. WARNING CAUTION • Doors and exterior (white & silver) You should only clean the doors with lukewarm soapy water and a soft cloth. -
Page 19: Troubleshooting
WHAT TO DO BEFORE CALLING FOR SERVICE PROBLEM SOLUTION Refrigerator is not operating Check that the power cord is plugged into the power outlet properly and that the outlet is switched ‘ON’. Try running another appliance from the power outlet. If no power is coming from the outlet you may have blown a fuse or tripped a circuit of your household power supply. - Page 20 PROBLEM SOLUTION When the motor seems to run more It is normal to frequently hear the sound of the motor. However, to keep than expected operation to a minimum check the following: • Are doors kept open too long or too often? •...
- Page 21 NOTES NOTES...
- Page 22 NOTES NOTES...
-
Page 23: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; (vi) incomplete or improper installation; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products (vii) incorrect, improper or inappropriate operation; Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (viii) insect or vermin infestation;... - Page 24 Top Service encompasses the after sales service provided by The Electrolux Group to consumers including delivery, home service and spare parts. and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved. ANC No. A05086301 ©...
