Rostra 250-8183 Installation Manual

Flush mount camera

Download this manual

250-8183 Flush Mount Camera

Installation Manual

v Features

v All Aluminum chassis

v High Resolution, 1/3-inch CMOS Color Camera

v IP69K Waterproof Housing

v Wide View Angle

v Selectable Image: Normal/Reverse

v Heavy Duty 4 Pin Screw Lock Connection

v Selectable Parking Line – ON/OFF

Need help?

Do you have a question about the 250-8183 and is the answer not in the manual?

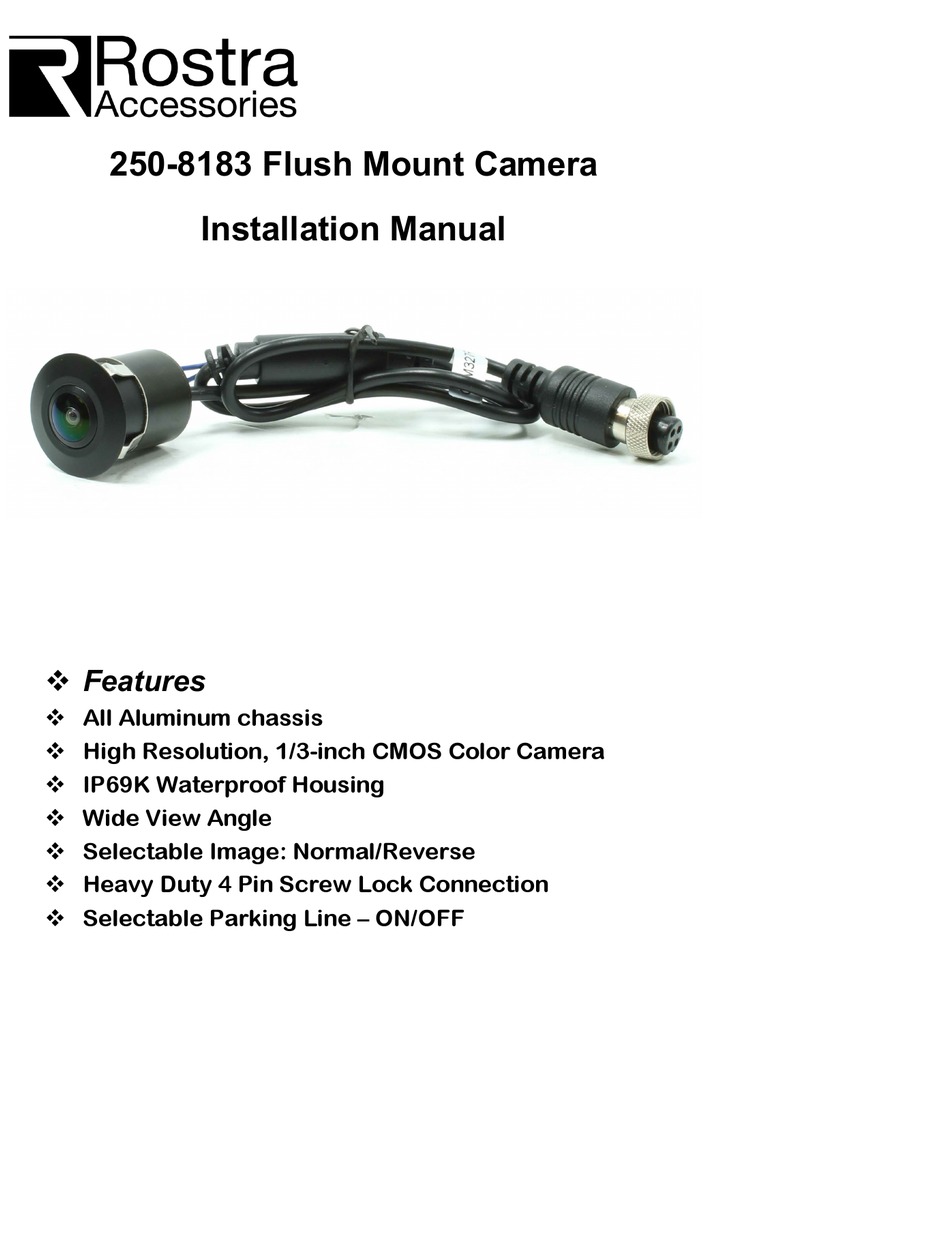

Page 1 250-8183 Flush Mount Camera Installation Manual v Features v All Aluminum chassis v High Resolution, 1/3-inch CMOS Color Camera v IP69K Waterproof Housing v Wide View Angle v Selectable Image: Normal/Reverse v Heavy Duty 4 Pin Screw Lock Connection v Selectable Parking Line – ON/OFF...
Page 2 5/8-inch hole drilled near the vehicle’s rear license plate. When choosing a wiring path, make sure the cable will not be damaged or pinched, as this may cause a short circuit that is not covered by the warranty. 2018 Rostra Accessories, Inc. 800-782-3379 www.rostra.com...
Page 3 Connecting the Video Signal 1. The 250-8183 uses a single Heavy-Duty cable and the camera power and signal will be provided through this cable from the monitor. 2. If using an alternative monitor, use the adaptor harness to split the signal to RCA connections then connect to the female RCA input on the alternative monitor.
Page 4: Specifications
Check the rear-view camera reversing the vehicle lens and clean if needed. • Check the rear-view camera wiring connection and connection at the monitor. • Check the monitor fuse, if blown replace ONLY with the 2018 Rostra Accessories, Inc. 800-782-3379 www.rostra.com...
Page 5 Video image is not sharp enough Clean the camera lens. 2018 Rostra Accessories, Inc. 800-782-3379 www.rostra.com...
