ACPro GMV-N07G/A3A-D Owner's Manual

Multi variable air conditioners wall mounted type indoor unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Models:
GMV-N07G/A3A-D(U) GMV-N07G/E3A-D(U)
GMV-N09G/A3A-D(U) GMV-N09G/E3A-D(U)
GMV-N12G/A3A-D(U) GMV-N12G/E3A-D(U)
GMV-N18G/A3A-D(U) GMV-N18G/E3A-D(U)
GMV-N24G/A3A-D(U) GMV-N24G/E3A-D(U)
Thank you for choosing Air Conditioners, please read this owner's manual carefully before
operation and retain it for future reference.
Multi Variable Air Conditioners
Wall Mounted Type Indoor Unit
Owner's Manual
Air Conditioners

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMV-N07G/A3A-D and is the answer not in the manual?

Questions and answers

Related Manuals for ACPro GMV-N07G/A3A-D

Summary of Contents for ACPro GMV-N07G/A3A-D

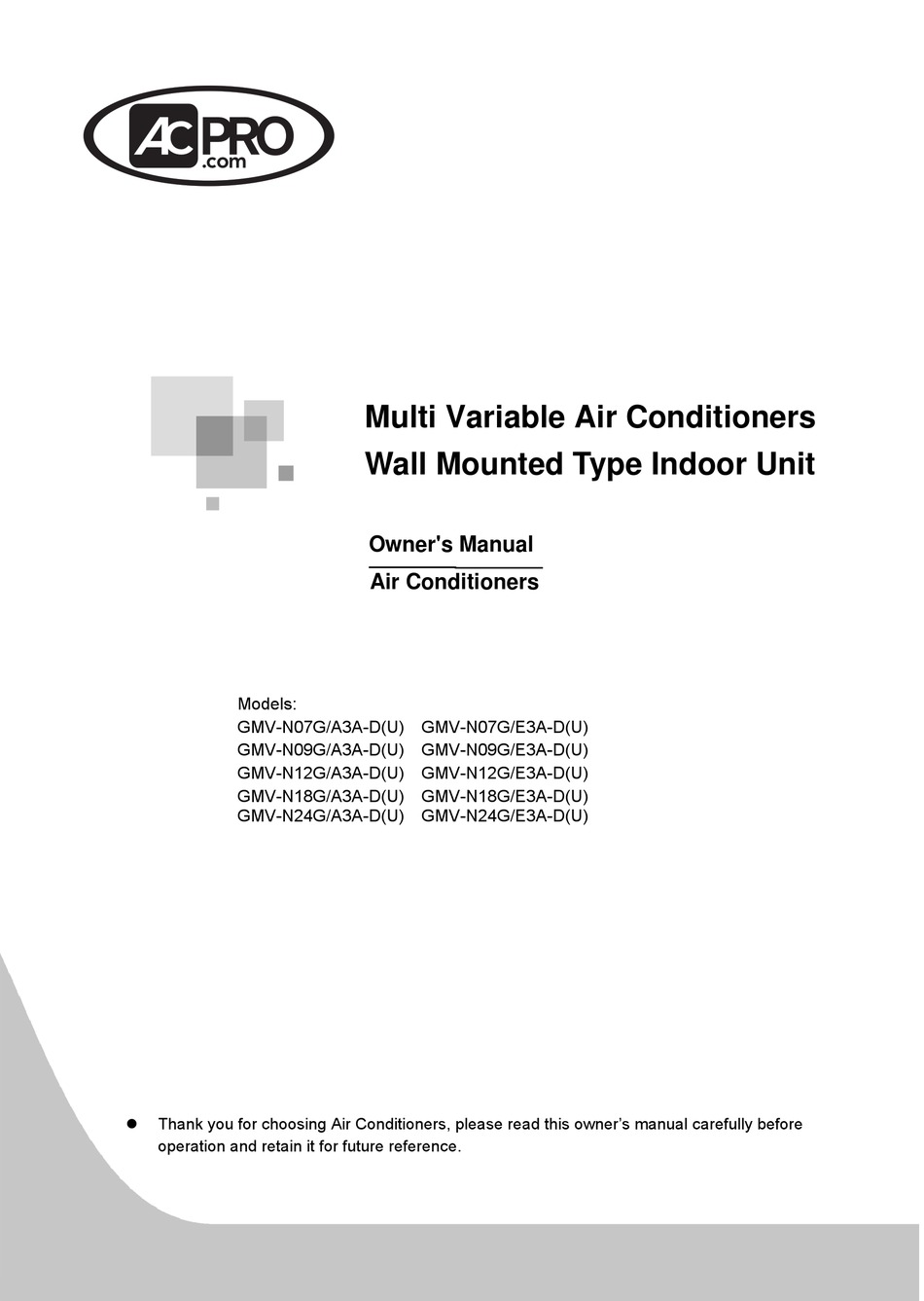

  • Page 1 Multi Variable Air Conditioners Wall Mounted Type Indoor Unit Owner's Manual Air Conditioners Models: GMV-N07G/A3A-D(U) GMV-N07G/E3A-D(U) GMV-N09G/A3A-D(U) GMV-N09G/E3A-D(U) GMV-N12G/A3A-D(U) GMV-N12G/E3A-D(U) GMV-N18G/A3A-D(U) GMV-N18G/E3A-D(U) GMV-N24G/A3A-D(U) GMV-N24G/E3A-D(U) Thank you for choosing Air Conditioners, please read this owner’s manual carefully before  operation and retain it for future reference.

  • Page 3: User Notice

    Preface For correct installation and operation, please read all instructions carefully. Before reading the instructions, please be aware of the following items: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 5: Table Of Contents

    Contents 1 Safety Precautions ......................1 2 Product Introduction ....................... 2 2.1 Outline of the Unit and Main Parts ................2 2.2 Rated Operating Condition ..................3 3 Installation Instruction ....................3 3.1 Schematic diagram of installation spaces ..............3 3.2 Requirements for Communication Line ..............

  • Page 6: Safety Precautions

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit 1 Safety Precautions WARNING (1) Follow this instruction to complete the installation work. Please carefully read this manual before unit startup and service. (2) Wire size of power cord should be large enough.The damaged power cord and connection wire should be replaced by exclusive cable.

  • Page 7: Product Introduction

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit (21) Be sure to use the exclusive accessory and part to prevent the water leakage, electric shock and fire accidents. (22) Make sure the unit can be earthed properly and soundly after plugging into the socket so as to avoid electric shock.

  • Page 8: Rated Operating Condition

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit 2.2 Rated Operating Condition Indoor Side Condition Outdoor Side Condition Item Dry Bulb Temp℃ Wet Bulb Temp ℃ Dry Bulb Temp ℃ Wet Bulb Temp ℃ (°F) (°F) (°F) (°F) Rated Cooling 27(80.6) 19(66.2) 35(95)

  • Page 9: Electric Installation

    3. If unit is installed in places with /60227 IEC 53) intense magnetic field or strong interference, it is necessary to use shielded wire. 3.3 Electric Installation Model Power Supply MCA(A) MOP(A) GMV-N07G/A3A-D(U) GMV-N07G/E3A-D(U) GMV-N09G/A3A-D(U) GMV-N09G/E3A-D(U) GMV-N12G/A3A-D(U) GMV-N12G/E3A-D(U) 208/230V-1ph-60Hz GMV-N18G/A3A-D(U) GMV-N18G/E3A-D(U) GMV-N24G/A3A-D(U) GMV-N24G/E3A-D(U)

  • Page 10: Installation Instructions

    4 Installation Instructions 4.1 Installation of Indoor Unit Fig 4.1 Below are dimensions of W, H, D for different models: Unit:mm/inch Item Model GMV-N07G/A3A-D(U) GMV-N07G/E3A-D(U) GMV-N09G/A3A-D(U) GMV-N09G/E3A-D(U) (33-1/5) (10-5/6) GMV-N12G/A3A-D(U) GMV-N12G/E3A-D(U) GMV-N18G/A3A-D(U)

  • Page 11: Debugging

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit Find the horizontal position by the seton method; since the drainage pipe is on the left side, it is necessary to adjust the rear panel to make its left side a little bit lower. Fix the rear panel on the wall by bolts.

  • Page 12: Installation The Connection Pipes

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit Fig 4.5 4.6 Installation the connection pipes Connect the ends of the connection pipe with two leading pipes, and then tighten the joint nuts tightly. Connect the connect pipe with the two relative leading pipe, tie the nut on tie –in of the connect pipe tightly.

  • Page 13: Power Cord Connection

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit ③ Shape the tail of wire into ring by needle nose plier, and keep the gauge of ring in accordance with screw. ④ Use the screwdriver for tightening the terminal. (2) The connection of stranded wire (as shown in fig 5.1.2) ①...

  • Page 14: Connection Of Communication Line Of Wired Controller

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit indoor unit, as shown in Fig.5.3.1. Fig 5.3.1 Fig 5.3.2 (4) Secure the communication line with the wire clamp on the electric box. (5) In order to ensure the reliability of communication between IDU and ODU and the communication among each IDU, add a matched resistance (supplied in a package before ex-factory) on the wiring board of the last indoor unit in a series connection.

  • Page 15: The Best Usage Method

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit (2) Let the tubing and cord pass though the piping hole after tied up (refer to Fig .5.6 (d)). (3) Hang the claw behind the indoor unit on the pothook on the wall panel, and move the unit left and right to check if the body is firm.

  • Page 16: Maintenance Method

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit 7 Maintenance Method Do turn off the unit and cut off the main power supply when cleaning the air conditioner to avoid electric shock or injury. Stand at solid table when cleaning the unit. Do not clean the unit with hot water whose temperature is higher than 45°C(113 °F) to prevent fade or deformation.

  • Page 17: Check Before The Usage Season

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit (3) Do not clean the filter by hot water higher than 45°C for preventing fade or deformation. Do not burn it on fire or the filter would catches fire or deformation. (4) Install air filter Install the air filter properly along the arrow direction, making the side marked “Front”...

  • Page 18: Malfunction Analyzing

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit 9 Malfunction Analyzing WARNING Do not repair the air conditioner by yourself for the incorrect repair would lead to electric shock or fire. Please contact the service center and have the unit repaired by the specialized personnel. Check the following items before contacting the service center, as it could save your time and cost.

  • Page 19: After-Sales Service

    Multi Variable Air Conditioners WALL Mounted Type Indoor Unit 9.2 After-sales service When quality or other problems arise upon the purchased air conditioner, please contact the local service center. 10 Adjusting Method Of The Air Direction 10.1 Adjusting air direction up and down (1) Controlling the guide louver motor by the wireless remote controller can make the guide louver swing up and down, or makes the guide louver stop at a certain angle to have air supplied.
  • Page 20 Add: 11700 Industry Ave., Fontana, CA 92337, USA Tel: 1-951-360-0630 E -mail: www.acpro.com...
