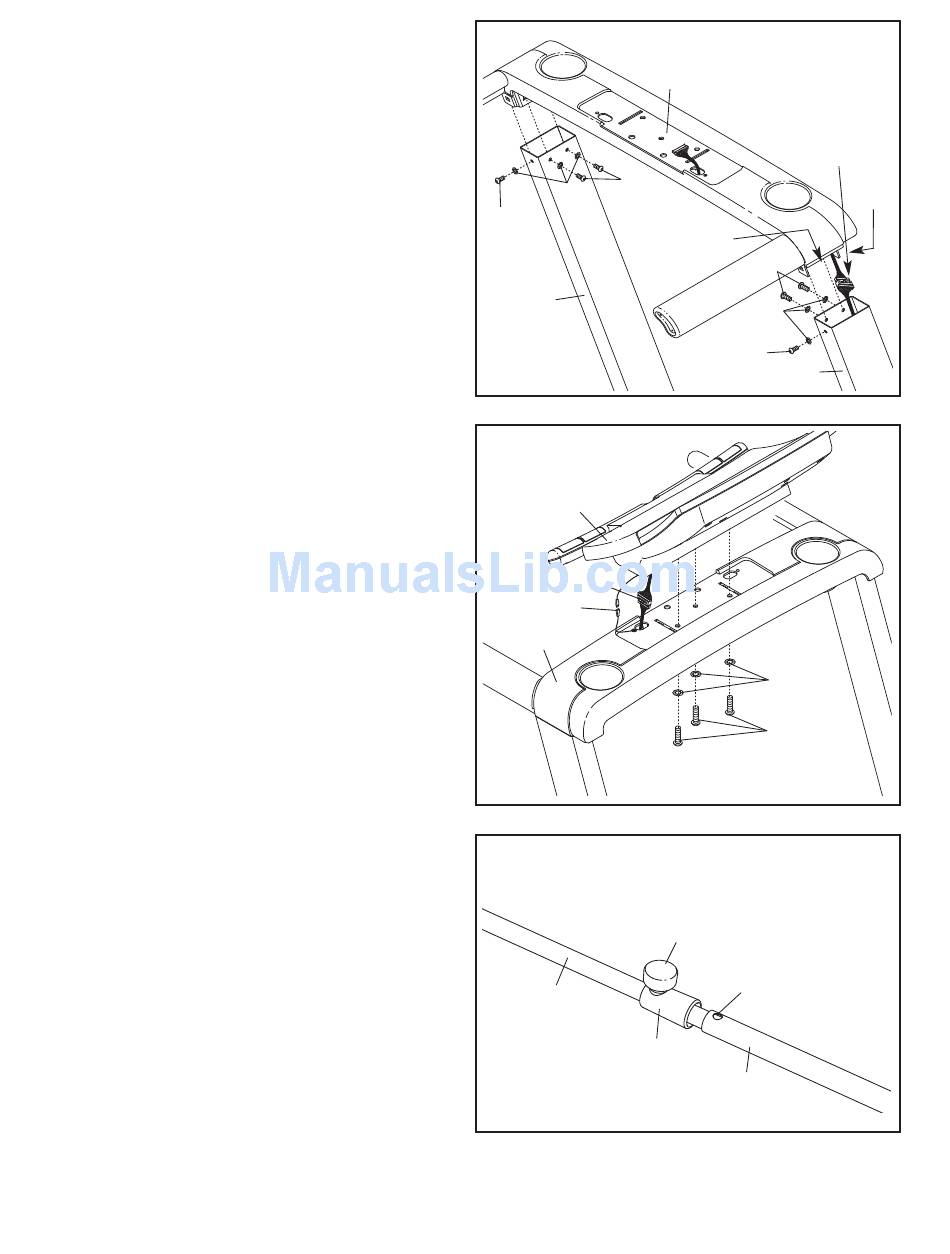

8. Insert the indicated connectors into the Right
Upright (78).
Next, insert the fronts of the brackets on the
Bridge (95) into the Uprights (74, 78), and then
fully insert the brackets. Make sure that the plas-
tic edges of the Bridge are inside the Uprights.
Attach the Bridge (95) with six 1/4" x 1/2" Bolts
(7) and six 1/4" Star Washers (10); start all six
Bolts and then tighten them.
See steps 4 and 6. Tighten the four 3/8" x 4 1/2"
Bolts (6).
9. With the help of a second person, hold the con-
sole assembly near the Bridge (95). Connect the
Bridge Wire (52) to the console assembly wire.
See the inset drawing in step 7. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON.
Connect the Console Ground Wire (101) to the
console assembly ground wire. Insert the wires
into the console assembly.
Attach the console assembly with three 3/8" x
1 1/4" Bolts (5) and three 3/8" Star Washers (9).
Be careful not to pinch the wires.
10. Identify the Storage Latch (53). Remove the tie
from the end of the tube. Make sure that the
sleeve has been slid over the indicated hole and
that the Latch Knob (54) is locked into the indi-
cated hole. Pull on the sleeve to make sure
that it is locked into place.
8
7
10
7
74
9
Console
Assembly
52
101
95
10
Tube
Sleeve
9
95
Connectors
Edge
7
10
7
78
9
5
54
Hole
53
Front
