User's Guide
Network A (administrator's computer with Network Management System); we shall call this network
(192.168.82.0/24) "Net A".
Network:
Netmask:
Router:
GRE server has two interfaces, LAN and WAN:
LAN IP:
WAN IP:
Settings in GRE tunnel page:
GRE Remote Host: 211.139.210.123
GRE Route:
Network B has subscribers on wireless P-560 interface (eth0) we shall call this network
(192.168.3.0/24) "Net B":
Network:
Netmask:
Router:
Where GRE interface (WAN IP of AC) is
Settings in GRE tunnel page:
GRE Device IP:
GRE Device Netmask:
Settings in Management Subnet page on eth0 interface (network interface | configuration |
management subnet menu) of AC:
IP Address:
Netmask:
Remote Network:
Remote Netmask:

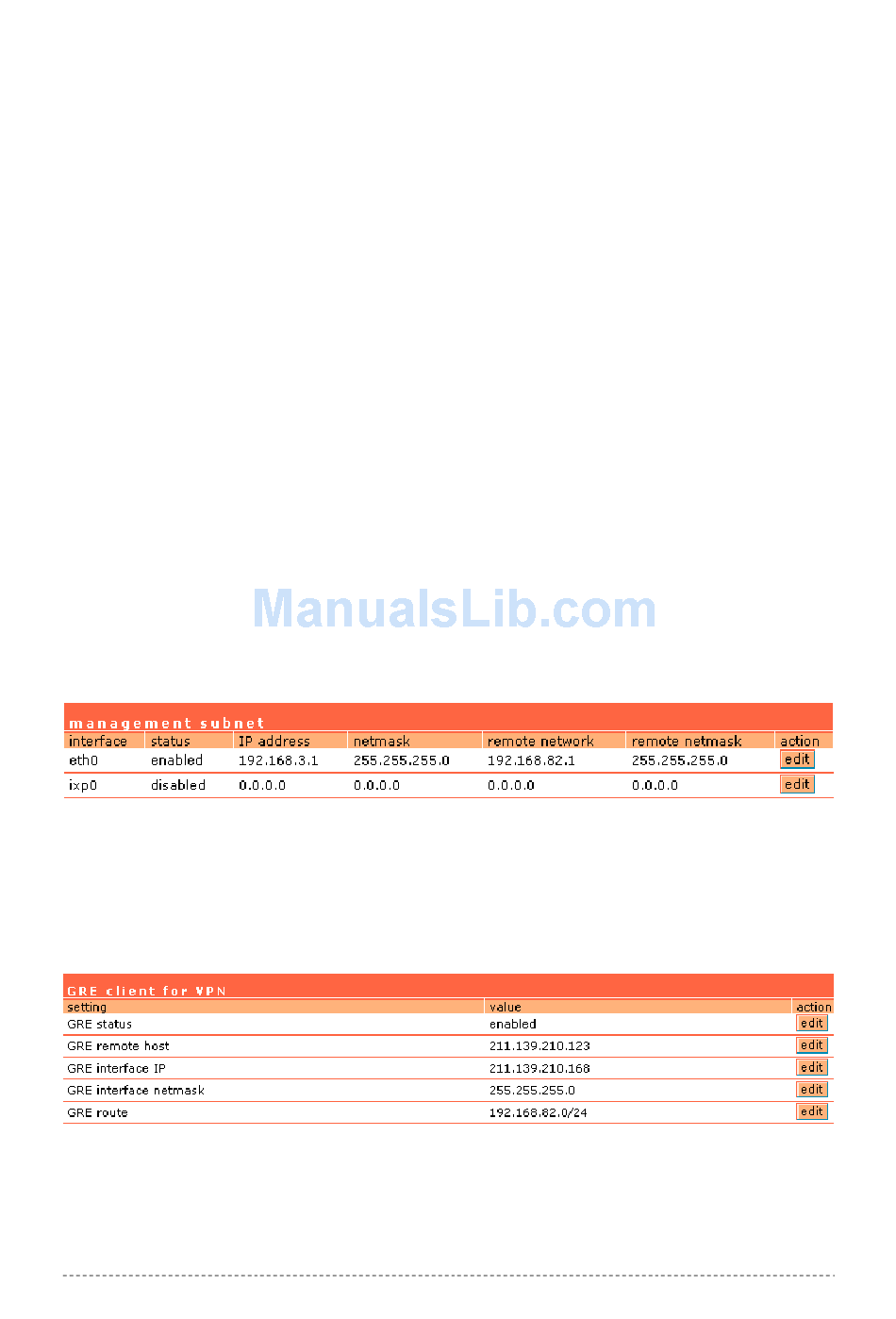

Figure 84 – Management Subnet Settings
As far as the Internet is concerned, we assume that it will pass any packet sent from A to B and vice
versa.
With settings from above, the administrator from Net A will be able to access clients on Net B through
the GRE tunnel between the GRE server and the GRE interface of AC.
Use the edit button next to a setting to change its value:
Figure 85 – GRE Settings
GRE Status – select one: [enabled or disabled].
Remote Host – IP address of GRE tunnel endpoint [IP address].
GRE Interface IP – enter the IP address of GRE interface [IP address].
Gemtek Systems
192.168.82.0
255.255.255.0
192.168.82.16
192.168.82.16
211.139.210.123
192.168.82.0/24
192.168.3.0
255.255.255.0
192.168.3.1
211.139.210.168.
211.139.210.168
255.255.255.0
192.168.3.1
255.255.255.0
192.168.82.1
255.255.255.0
