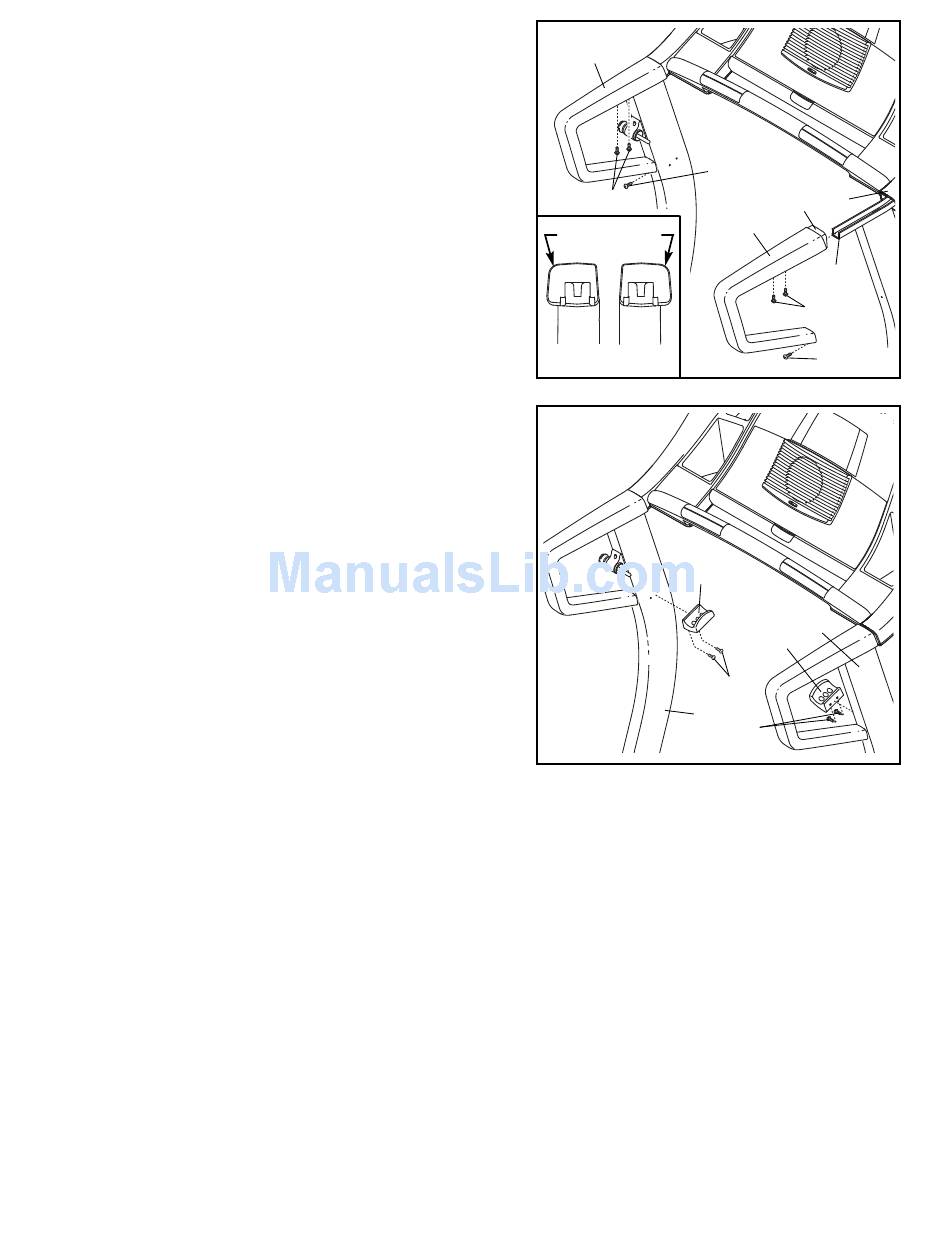

5. Identify the Left and Right Handrails (68, 81); the curved
edges of the Handrails should be on the outside (see the
end views of the Handrails in the inset drawing).
Slide the Right Handrail (81) onto the Right Handrail
Bracket (113), and press the lip on the front of the Right
Handrail under the Console Base (85). (Note: It may be
helpful to tip the Right Handrail and to tap it with a rub-
ber mallet to correctly position it.) Tighten two 3/4"
Screws (6) and a 1" Screw into the Right Handrail in the
locations shown. Note: It may be necessary to move the
lower end of the Right Handrail slightly to align the lower
screw hole.
Attach the Left Handrail (68) in the same way.
6. Attach each Upper Body Arm Holder (77) to an Upright
(82) with two 3/4" Screws (6).
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 28). To protect the floor or carpet, place a mat under the treadmill.
