Page 1: Installation Manual
Studio Series Installation Manual S4-C65 S4-DVC65 S4-C80 S4-W65 S4-W80 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 1 05/01/2018 12.39... - Page 2 Dynaudio; packaging cartons, the terms of this warranty shall prevail. 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 2 05/01/2018 12.39...
- Page 3 10. Confez toute réparation à un technicien qualifé. disposal of, or the shop where you purchased the product. 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 3 05/01/2018 12.39...
- Page 4 Grille Paint Mask Cut-out Template Document Pack Installation Frame Ø210mm (8 1/4”) S4-C65 Note: Diagram illustrates in-ceiling speaker pack contents. In-wall pack contents are equivalent. 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 4 05/01/2018 12.39...
- Page 5 ⁄ in max / ⁄ in min Diagram 2 S4-C80 S4-C65 154.5 mm 163 mm ⁄ in) ⁄ in) Ø 210 mm (8 ⁄ Ø 260 mm (10 ⁄ 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 5 05/01/2018 12.39...
- Page 6 Ø 210 mm (8 ⁄ S4-W65 90 mm 90 mm (3.54 in) (3.54 in) 175 mm (6 ⁄ 275 mm (10 ⁄ S4-W80 99 mm 99 mm (3.90 in) (3.90 in) 215 mm (8 ⁄ 370 mm (14 ⁄ 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 6 05/01/2018 12.39...
- Page 7 Ensure that the surrounding materials meet the flammability Class 5VA. A fire rated metal back box must have a minimum uncoated thickness of 1.35mm. 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 7 05/01/2018 12.39...
-
Page 8: Speaker Positions

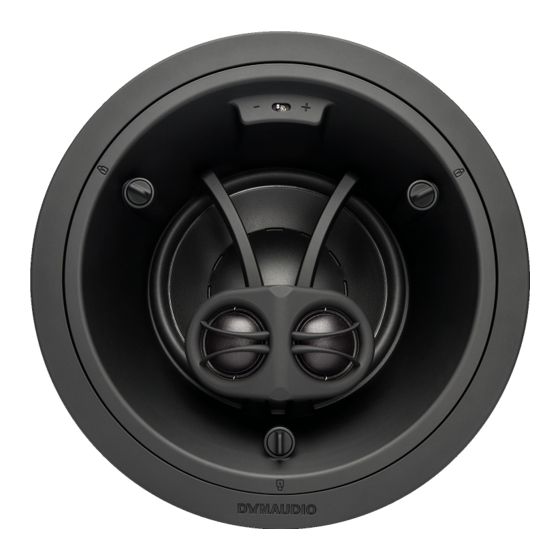

Stereo Audio Speaker Positioning >0.5 m (<1.6 ft) 3 m - 5 m (10 ft - 16.5 ft) >0.5 m (<1.6 ft) 3 m - 5 m (10 ft - 16.5 ft) >1.25 m (<4.1 ft) 3 m - 5 m (10 ft - 16.5 ft) 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 8 05/01/2018 12.39... - Page 9 S4-DVC65 in-ceiling speakers can be used in Dipole mode for surround channel applications. In Dipole mode the twin tweeters of the S4-DVC65 are connected in opposite polarity so that a high frequency acoustic null is generated on the unit’s centrally forward axis.
- Page 10 The dipole switch should not be used acoustically optimal positions. Compromise is often more likely to if a S4-DVC65 is connected to two amplifier channels for use in be necessary in multi-channel installations where positions have stereo.
- Page 11 (joists), pipe work, ducts or cables, mark a cut-line on the ceiling using the supplied template. Check If the speaker is a S4-DVC65 model it can be connected in one of that the diameter of the cut-line is correct: 210 mm (8 ⁄...
- Page 12 An environment dominated by carpets, soft furnishings and curtains for example might require a higher tweeter level than an environment where tiled floors and glass predominate. Diagram 5 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 12 05/01/2018 12.39...
- Page 13 Tilt to adjust tweeter directivity Switch to adjust tweeter level. Push to click. Three locations. Rotate clockwise to lock. Rotate counter-clockwise to release. 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 13 05/01/2018 12.39...
- Page 14 Strip 15 mm insulation from the cable (if necessary), twist Diagram 6 illustrates the in-wall speaker installation procedure. the wire strands and insert the stripped ends into the 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 14 05/01/2018 12.39...
- Page 15 Diagram 6 – Switch to adjust tweeter level Push to click. Four locations. Rotate clockwise to lock. Rotate counter-clockwise to release. 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 15 05/01/2018 12.39...
- Page 16 * Power handling according to IEC268. Rated power is continuous power for 100 hours. Dynaudio A/S, 8660 Skanderborg, Denmark www.dynaudio.com EN - Item No. 307001016932 Rev N 2018 Dynaudio CI manual - Item No. 307001016932 Rev N - EN.indd 16 05/01/2018 12.39...
