Cleco BRSAUPT Parts Manual

5 series
Hide thumbs

Advertisement

Quick Links

Download this manual

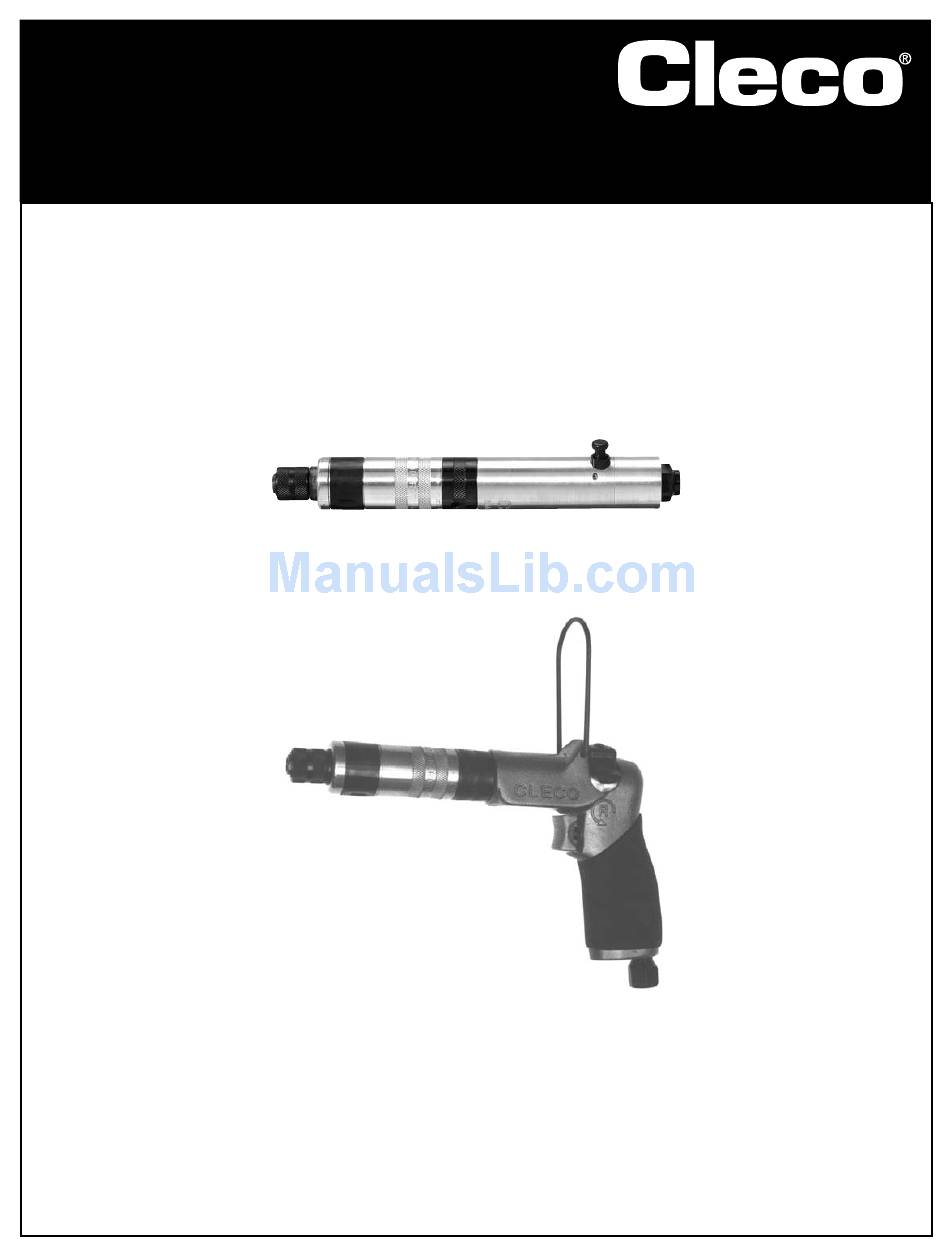

Parts Manual
823029
07/27/2011
5 Series
Screwdrivers
For additional product information visit our website at http://www.apextoolgroup.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRSAUPT and is the answer not in the manual?

Questions and answers

Related Manuals for Cleco BRSAUPT

Summary of Contents for Cleco BRSAUPT

  • Page 1 Parts Manual 823029 07/27/2011 5 Series Screwdrivers For additional product information visit our website at http://www.apextoolgroup.com...
  • Page 3 823029 Cleco ® 03/03/2009 Model Nomenclature “A” Tool Series Tool Type S = Non-Reversible Screwdriver RS = Reversible Screwdriver (Button or Slide) SR = Slide Reverse Screwdriver (Knob or Ring) BRS = Button Reverse Screwdriver Torque Control Mechanism A = Clecomatic Clutch...
  • Page 4 823029 Cleco ® 03/03/2009 201591 Handle Assembly Models: “B” BRSAUPT BRSAUTP Page 4...
  • Page 5 823029 Cleco ® 03/03/2009 201591 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "B" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 6 823029 Cleco ® 03/03/2009 201519 Handle Assembly Models: “C” RSAUPT RSAUTP Page 6...
  • Page 7 823029 Cleco ® 03/03/2009 201519 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "C" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 8 823029 Cleco ® 03/03/2009 201504 Handle Assembly Models: “D” BRSAP Page 8...
  • Page 9 823029 Cleco ® 03/03/2009 201504 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "D" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 10 823029 Cleco ® 03/03/2009 201506 Handle Assembly Models: “E” BRSSTP Page 10...
  • Page 11 823029 Cleco ® 03/03/2009 201506 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "E" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 12 823029 Cleco ® 03/03/2009 201505 Handle Assembly Models: “F” BRSAPT BRSATP BRSCHPT Page 12...
  • Page 13 823029 Cleco ® 03/03/2009 201505 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "F" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 14 823029 Cleco ® 03/03/2009 201451 Handle Assembly Models: “G” RSSTP Page 14...
  • Page 15 823029 Cleco ® 03/03/2009 201451 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "G" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 16 823029 Cleco ® 03/03/2009 201433 Handle Assembly Models: “H” RSAPT RSATP RSCHPT Page 16...
  • Page 17 823029 Cleco ® 03/03/2009 201433 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "H" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 18 823029 Cleco ® 03/03/2009 201432 Handle Assembly Models: “I” RSAP RSCHP Page 18...
  • Page 19 823029 Cleco ® 03/03/2009 201432 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "I" Number Description Benennung Designation Descripción Descrizione 203559 Valve Cap Ventilverschraubung Bouchon de soupape Tapa de válvula Copercio della valvola 847272 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 20 823029 Cleco ® 03/03/2009 201490 Handle Assembly Models: “J” BRSAL BRSCHL Page 20...
  • Page 21 823029 Cleco ® 03/03/2009 201490 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "J" Number Description Benennung Designation Descripción Descrizione 203518 Inlet Bushing Einlaß Buchse Bushing d'arrivée Buje de cala Bushing di apertura 863598 Screen Bildschirm Ecran Criba Schermo 203521 Spring...
  • Page 22 823029 Cleco ® 03/03/2009 201462 Handle Assembly Models: “K” Page 22...
  • Page 23 823029 Cleco ® 03/03/2009 201462 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "K" Number Description Benennung Designation Descripción Descrizione 869118 Inlet Bushing Einlaß Buchse Bushing d'arrivée Buje de cala Bushing di apertura 863399 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 24 823029 Cleco ® 03/03/2009 201430 Handle Assembly Models: “L” RSAL RSCHL Page 24...
  • Page 25 823029 Cleco ® 03/03/2009 201430 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "L" Number Description Benennung Designation Descripción Descrizione 203518 Inlet Bushing Einlaß Buchse Bushing d'arrivée Buje de cala Bushing di apertura 863598 Screen Bildschirm Ecran Criba Schermo 203521 Spring...
  • Page 26 823029 Cleco ® 03/03/2009 201452 Handle Assembly Models: “M” Page 26...
  • Page 27 823029 Cleco ® 03/03/2009 201452 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "M" Number Description Benennung Designation Descripción Descrizione 869118 Inlet Bushing Einlaß Buchse Bushing d'arrivée Buje de cala Bushing di apertura 863399 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 28 823029 Cleco ® 03/03/2009 201431 Handle Assembly Models: “N” RSCH Page 28...
  • Page 29 823029 Cleco ® 03/03/2009 201431 Handle Assembly Illustration, Abbildung, Illustration, Ilustración, Illustrazione "N" Number Description Benennung Designation Descripción Descrizione 869118 Inlet Bushing Einlaß Buchse Bushing d'arrivée Buje de cala Bushing di apertura 863399 O-Ring O-Ring Joint torique Anillo “O” Anello ad O...
  • Page 30 823029 Cleco ® 03/03/2009 Motor Assembly “O” See Service Notes Page 30...
  • Page 31 / Indique la piéce de rechange conseillée. Table, Tabelle, Tableau, Tabla, Tabella "O1" RSAL BRSAL RSAP BRSAP RSAPT Description BRSAPT RSATP Benennung BRSATP RSAUPT Ref. Designation BRSAUPT RSCH RSAUTP Descripción BRSAUTP RSCHL Descrizione BRSCHL RSCHP BRSCHPT RSCHPT BRSSTP RSSTP Rear Bearing Plate 203721...
  • Page 32 823029 Cleco ® 03/03/2009 Gearing Assemblies “P” 201474 Gear Train Assembly (-17) See Service Notes “Q” 201588 Gear Train Assembly (-25) See Service Notes Page 32...
  • Page 33 823029 Cleco ® 03/03/2009 Description Illustration, Abbildung, Illustration, Ilustración, Illustrazione "P" Number Description Benennung Designation Descripción Descrizione 203646 Motor Spacer Distanzstück Entretoise Espaciador Distanziale Broche pour roue Perno dell’ingranaggio 833862 Idler Gear Pin Zwischenradbolzen Piñon loco intermedio intermédiaire 869155 Gear Cage Planetenradträger...
  • Page 34 823029 Cleco ® 03/03/2009 Gearing Assemblies “R” 201589 Gear Train Assembly (-2) See Service Notes “S” 201586 Gear Train Assembly (-7) See Service Notes “T” 201587 Gear Train Assembly (-10) See Service Notes Page 34...
  • Page 35 823029 Cleco ® 03/03/2009 Gearing Assemblies Illustration, Abbildung, Illustration, Ilustración, Illustrazione "R" Number Description Benennung Designation Descripción Descrizione 203644 Motor Spacer Distanzstück Entretoise Espaciador Distanziale Pignon Piñon diferencial Ingranaggio a 203919 Pinion Gear (13T) Ritzelgetriebe (13T) d’entraînement (13T) (13T) pignone (13T)
  • Page 36 823029 Cleco ® 03/03/2009 201219 Stall Spindle “U” See Service Notes Page 36...
  • Page 37 823029 Cleco ® 03/03/2009 201219 Stall Spindle Illustration, Abbildung, Illustration, Ilustración, Illustrazione "U" Number Description Benennung Designation Descripción Descrizione 202847 Spindle Spindel Arbre Husillo Mandrino 844265 Steel Ball (1/8") Kugel (3.175mm) Bille (3.175mm) Bolas (3.175mm) Sfera (3.175mm) 203622 Spindle Housing Gehäuse...
  • Page 38 823029 Cleco ® 03/03/2009 Auto-Start Quick Change Clutch “V” 201450-4 Auto-Start Quick Change Clutch (-10, -17, -25) See Service Notes Page 38...
  • Page 39 823029 Cleco ® 03/03/2009 Auto-Start Quick Change Clutch Illustration, Abbildung, Illustration, Ilustración, Illustrazione "V" Number Description Benennung Designation Descripción Descrizione 203604 Clutch Cam Nocken Came Leva Camma 842980 39 Steel Ball (3/32") Kugel (2.381mm) Bille (2.381mm) Bolas (2.381mm) Sfera (2.381mm) Cage de roulement à...
  • Page 40 823029 Cleco ® 03/03/2009 Auto-Start Bit and Finder Clutch “W” 201449 Auto-Start Bit and Finder Clutch (-10, -17, -25) See Service Notes Page 40...
  • Page 41 823029 Cleco ® 03/03/2009 Auto-Start Bit and Finder Clutch Illustration, Abbildung, Illustration, Ilustración, Illustrazione "W" Number Description Benennung Designation Descripción Descrizione 203604 Clutch Cam Nocken Came Leva Camma 842980 39 Steel Ball (3/32") Kugel (2.381mm) Bille (2.381mm) Bolas (2.381mm) Sfera (2.381mm) Cage de roulement à...
  • Page 42 823029 Cleco ® 03/03/2009 Clecomatic Quick Change Chuck 201445 Clecomatic Quick Change Clutch (-2, -7, -10) “X” 201447 Clecomatic Quick Change Clutch (-17, -25) See Service Notes Page 42...
  • Page 43 823029 Cleco ® 03/03/2009 Clecomatic Quick Change Chuck Illustration, Abbildung, Illustration, Ilustración, Illustrazione "X" Number Description Benennung Designation Descripción Descrizione 203572 Clutch Cam Nocken Came Leva Camma 842980 39 Steel Ball (3/32") Kugel (2.381mm) Bille (2.381mm) Bolas (2.381mm) Sfera (2.381mm) Cage de roulement à...
  • Page 44 823029 Cleco ® 03/03/2009 Clecomatic Bit and Finder Clutch 201484 Clecomatic Bit and Finder Clutch (-2, -7, -10) “Y” 201485 Clecomatic Bit and Finder Clutch (-17, -25) See Service Notes Page 44...
  • Page 45 823029 Cleco ® 03/03/2009 Clecomatic Bit and Finder Clutch Illustration, Abbildung, Illustration, Ilustración, Illustrazione "Y" Number Description Benennung Designation Descripción Descrizione 203572 Clutch Cam Nocken Came Leva Camma 842980 39 Steel Ball (3/32") Kugel (2.381mm) Bille (2.381mm) Bolas (2.381mm) Sfera (2.381mm) Cage de roulement à...
  • Page 46 823029 Cleco ® 03/03/2009 Service Notes Illustration: “O” Tightening torque Anzugsmoment Illustration Reference Torsion de serrage Abbildung Verweisung Torsión de apriete Illustration Référence Coppia di serraggio .0015” (.038mm) Ilustración Referencia (EN) Clearance Illustrazione Riferimento Ft-Lbs (DE) Spielraum (in-lbs) (FR) Espace libre...
  • Page 48 Sales & Service Centers Note: All locations may not service all products. Please contact the nearest Sales & Service Center for the appropriate facility to handle your service requirements. Dallas, TX Detroit, MI Houston, TX Lexington, SC Apex Tool Group Apex Tool Group Apex Tool Group Apex Tool Group...
