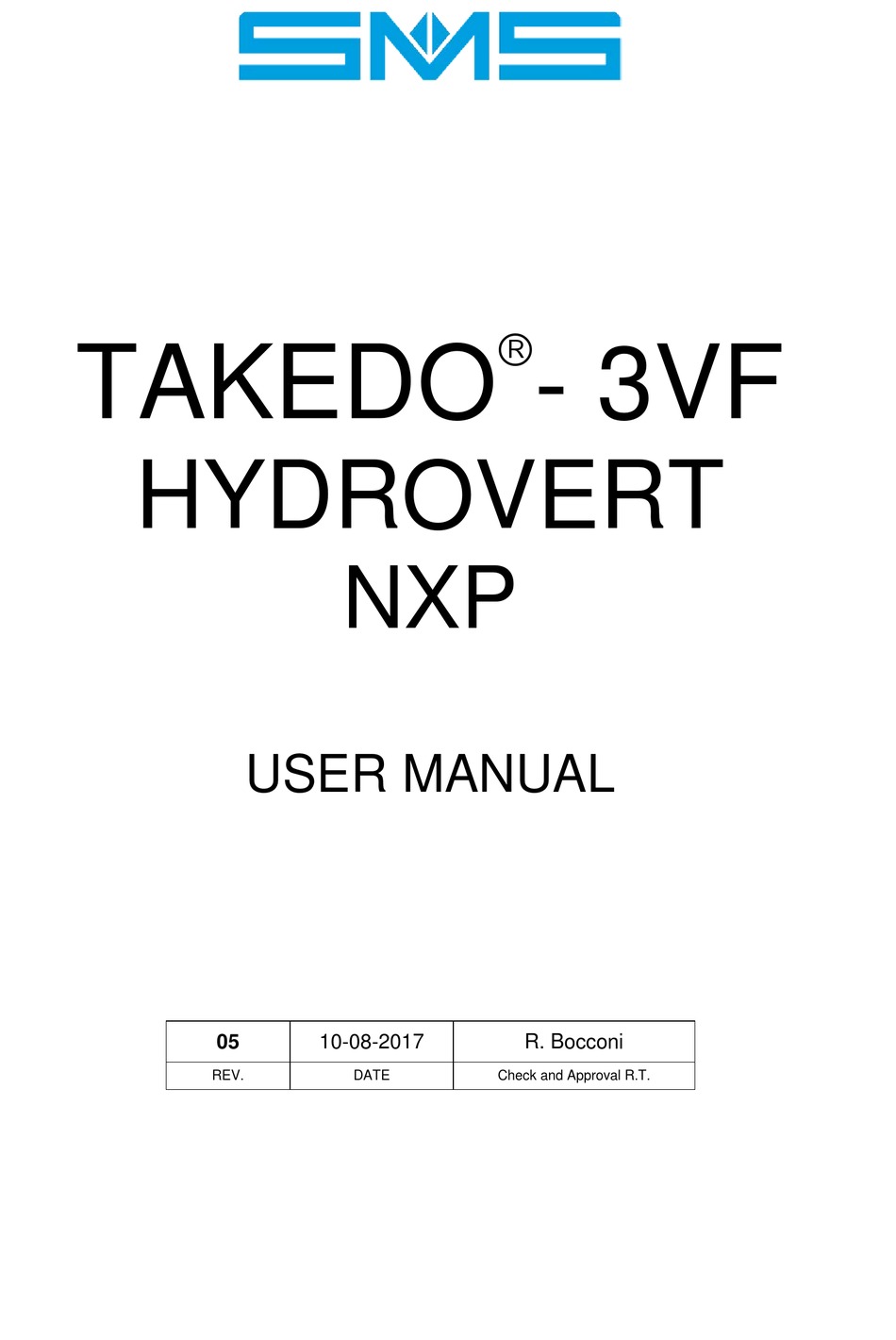

TAKEDO
- 3VF
HYDROVERT
NXP
USER MANUAL
05
10-08-2017
R. Bocconi
REV.
DATE
Check and Approval R.T.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAKEDO- 3VF and is the answer not in the manual?

Questions and answers

Related Manuals for SMS TAKEDO- 3VF

Summary of Contents for SMS TAKEDO- 3VF

  • Page 1  TAKEDO - 3VF HYDROVERT USER MANUAL 10-08-2017 R. Bocconi REV. DATE Check and Approval R.T.
  • Page 2 INDEX 1 - INTRODUCTION Page 2 - RECOMMENDATIONS AND PRECAUTIONS Page 3 - INSTALLATION Page 4 - CONNECTION OF THE POWER CIRCUIT Page 5 - HYDROVERT NXP APPLICATION LAYOUT Page 5.1 – OIL TEMPERATURE MEASUREMENT PROBE Page 6 - KEYBOARD AND PROGRAMMING Page 7 - M1 - MONITOR MENU Page...

  • Page 3: Introduction

    1 – INTRODUCTION HYDROVERT NXP is an inverter with built-in EMC filter in compliance with 2004/108/EC (Electromagnetic Compatibility) and 2006/95/EC (Low Voltage) Directives, fitted with special software for hydraulic systems, which can operate with both old and new control units. It controls the UPWARD run phase and, with suitable hydraulic control unit, also the DOWNWARD run.

  • Page 4: Recommendations And Precautions

    2 – RECOMMENDATIONS AND PRECAUTIONS For everything that concerns the recommendations relative to personal safety and to prevent accidental damage to the product or equipment connected to it, refer to the “SAFETY” chapter in the original VACON INSTALLATION AND MAINTENANCE TECHNICAL MANUAL (NXP series inverter) available at www.it.vacon.com, where the “Declaration of Conformity”, given on the last page of this document, is also present.

  • Page 5: Connection Of The Power Circuit

    INVERTER NXP 400 VOLT SERIES (380÷500V) BRAKING RESISTANCE (eventual (**)) FUSES gG/gL MINIMUM CODE DIMENSIONS VALUE SUPPLIED BY SMS LxDxH (mm) (Ω) HVP00185 445x110x140 N°1 x 50Ω 1500W 42Ω HVP00315 445x110x140 N°1 x 50Ω 1500W 42Ω...
  • Page 6 It is recommended to connect the earth shield from both sides, with a 360° connection or with special terminals, which can be supplied by SMS. If the 360° earth shield connection is not possible inside the motor terminal board, the shield on the casing must be put to earth before entering the terminal board.
  • Page 7 5 – BASIC APPLICATION DRAWING IMPORTANT! During the UPWARD run the HIGH SPEED electrovalve ,must be powered for the entire duration of the run, up to the end of the electrical stop at the floor (e.g. through an auxiliary switch of the run contactors).

  • Page 8: Oil Temperature Measurement Probe

    5.1 – OIL TEMPERATURE MEASUREMENT PROBE ASSEMBLY OF THE PROBE INSIDE THE HYDRAULIC CONTROL UNIT Immerse the bulb of the control unit oil probe, paying attention that it does not touch the bottom but remains in the oil bath even with the cabin at the extreme top floor. INVERTER SETTINGS The ANALOGUE input 1 (terminal 2), must be configured in “VOLTAGE”: Connect the probe as indicated in the layout.

  • Page 9: Keyboard And Programming

    6 – KEYBOARD AND PROGRAMMING The control panel has an alphanumerical display with nine status indicators and three text lines for the menu, the description of the menu/sub-menu and the number of the sub-menu or the value of the function displayed.
  • Page 10 The sub-menus are accessible from the main menu using the key. The M symbol on the first line of the text indicates the main menu. It is followed by a number that refers to the sub-menu in question. The arrow (→) in the bottom right hand corner of the display indicates another sub-menu which can be recalled by pressing the key.

  • Page 11: M1 - Monitor Menu

    7 – M1 - MONITOR MENU Index Description Index Description DIN1 DIN2 DIN3 V1.1 Frequenza uscita / Output frequency V1.11 Upward Speed Enabling (High/Low) (terminal 8) (terminal 9) (terminal 10) DIN7 DIN8 V1.2 Rif. Frequenza / Freq. Reference V1.12 Not Used V1.3 Velocità...

  • Page 12: M2 - Parameters Menu

    8 – M2 - PARAMETERS MENU (Default values for 400V series) Index Description Default Description Default Unit P2.1 - PARAMETRI BASE / BASIC PARAMETERS P 2.1.1 Limite corrente Current Limit P 2.1.2 TensioneNomMotor Motor Nom Voltg P 2.1.3 FrequenNomMotore 50.00 Motor Nom Freq 50.00 P 2.1.4...
  • Page 13 Index Description Default Description Default Unit CONTINUES P2.3 - DISCESA / DOWNWARD P 2.3.14 Tempo Dec Final Final Decel Time P 2.3.15 Arrot Finale 1 0.00 Final Round 1 0.00 P 2.3.16 Arrot Finale 2 0.00 Final Round 2 0.00 P 2.3.17 Frequenza Finale 2.00...
  • Page 14 Index Description Default Description Default Unit P2.7 - RISERVATO / RESERVED P2.8 – SEGNALI INGRESSO / INPUT SIGNALS P 2.8.1 Sel Salita mors.8 1 / DIN1 Sel Start FWD term.8 1 / DIN1 P 2.8.2 Sel Discesa mors.14 6 / DIN4 Sel Start REV term.14 6 / DIN4 P 2.8.3...
  • Page 15 Index Description Default Description Default Unit P2.12 – TEMPERATURA / TEMPERATURE P2.12.1 Drive TempMin Drive TempMin °C P2.12.2 Drive TempMax Drive TempMax °C P2.12.3 Motore TempMax 80.0 Motor TempMax P2.12.4 Sensore 1 / AI1 Sensor 1 / AI1 P2.12.5 Min Segn Analog 46.00 Min Analog Sign 46.00...

  • Page 16: Faults Menu (F3 – H4)

    Alarm 68 pressed to restore operation. Eliminate the problem by delaying opening of the contactors. If the problem remains, contact SMS assistance. CONTINUOUS INTERVENTION OF ALARM 68, CAN CAUSE THE INVERTER TO BREAK. TAKEDO - 3VF HYDROVERT NXP USER MANUAL Version 05 dated 10-08-2017...

  • Page 17: Adjustment Procedure

    S1→S11 appears under the name of the menu. This means that there are 11 sub-menus. S5.1 Language Setting: ITALIAN/ENGLISH/FRENCH. S5.2 Application Setting: SMS Hydrov SMS does not recommend modifying the other parameters relative to this MENU. E6 - EXPANDER BOARDS (OPTA2 board I/O monitor) V6.1.1.1 DigOUT:B.1 (RO1 Output Status) V6.1.1.2 DigOUT:B0.2 (RO2 Output Status)

  • Page 18: Upward Run Adjustments

    11.2 – UPWARD RUN Adjustments P2.2.5 CABIN P2.2.10 P2.2.13 P2.2.11 2.2.12 SPEED P2.2.2 PROFILE P2.2.4 P2.2.6 P2.2.14 P2.2.9 (INSPECTION P2.2.1 P2.2.7 UPWARD RUN COMMAND (8) HIGH SPEED (9) OR INSPECTION (4) COMMAND ENABLE COMMAND (10) P2.2.3 PRE-START MOTOR CONTACTORS RELAY AND 0.3’’...

  • Page 19: Upward Stop Adjustments

    11.4 – UPWARD STOP Adjustments When the HIGH SPEED command is removed and the UPWARD command remains, the slowing phase starts; on arrival at the floor the UPWARD command is removed and the motor automatically goes to zero speed. Adjusting the stop with empty cabin, by setting the parameters P2.2.7 (Low Speed) and P2.2.14 (Final Deceleration) in a way to obtain the desired stop accuracy.

  • Page 20: Upward Re-Levelling Adjustments

    11.5 – UPWARD RE-LEVELLING Adjustments P2.2.8 P2.2.2 P2.2.1 UPWARD RUN COMMAND (8) The upward re-levelling run is commanded via the UPWARD inputs (8) and ENABLE (10), IN ABSENCE of any speed command ENABLE COMMAND (10) (HIGH SPEED (9) or INSPECTION (16)). P2.2.3 PRE-START CONTACTORS RELAY AND...

  • Page 21: Downward Start Adjustments

    11.7 – DOWNWARD RUN Adjustments (with suitable hydraulic control unit only) P2.3.5 CABIN RE-LEVELLING P2.3.13 P2.3.11 2.3.12 SPEED P2.3.10 P2.3.8 PROFILE P2.3.4 P2.3.2 P2.3.14 P2.3.6 P2.3.1 P2.2.7 DOWNWARD RUN COMMAND (14) HIGH SPEED (9) OR INSPECTION (16) COMMAND ENABLE COMMAND (10) MOTOR 0.3’’...

  • Page 22: Downward Re-Levelling Adjustments

    P2.6.3 = AUTOMATIC it moves downwards anyway. P2.6.4 Switching frequency (default value = 3kHz) For further information regarding the power supply of HYDROVERT NXP for the EMERGENCY operation, contact SMS TAKEDO - 3VF HYDROVERT NXP USER MANUAL Version 05 dated 10-08-2017...

  • Page 23: Controls And Maintenance

    Do not perform the test on the command circuits. For further information and advice contact: SMS SISTEMI e MICROSISTEMI s.r.l. (SASSI HOLDING Group) Via Guido Rossa, 46/48/50 Loc. Crespellano 40053 Valsamoggia BO - ITALIA Tel. : +39 051 969037...
  • Page 24 TAKEDO - 3VF HYDROVERT NXP USER MANUAL Version 05 dated 10-08-2017...
