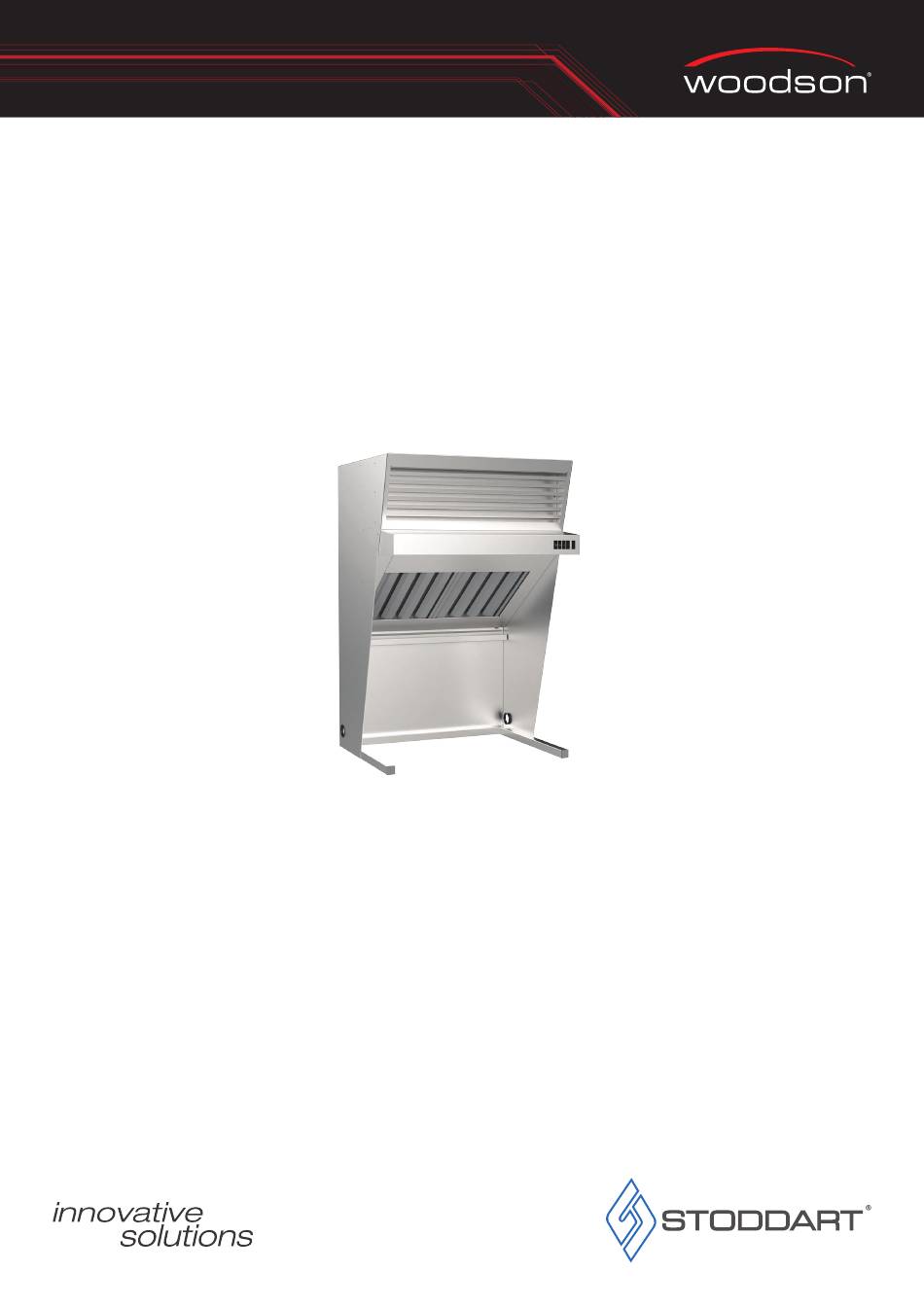

SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE
Counter-top Ductless Exhaust Hood
Models:
W.CHD750 / W.CHD1000
A guide on the use, care and maintenance
of your quality Woodson product
Revision Date: B - 14/09/2022 - 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W.CHD1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodson W.CHD1000

Summary of Contents for Woodson W.CHD1000

  • Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE Counter-top Ductless Exhaust Hood Models: W.CHD750 / W.CHD1000 A guide on the use, care and maintenance of your quality Woodson product Revision Date: B - 14/09/2022 - 03...
  • Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
  • Page 3 1.1 Your New Woodson Product ........
  • Page 4 Thank you for choosing this quality Woodson product. All Woodson products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new Woodson product in accordance with these instructions, will provide many years of reliable service.

  • Page 5: Warranty And Registration

    1.0 Introduction Warranty & Registration 1.2 Australia and New Zealand Warranty 1.2.1 Warranty Period Stoddart 12 month on-site parts and labour warranty (terms and conditions apply), from the time of purchase. To view or download the warranty terms and conditions visit: http://www.stoddart.com.au/warranty-information 1.2.2 Warranty Registration To register your new product, go to the Stoddart warranty page:...

  • Page 6: Product Overview

    2.0 Installation 2.1 Product Overview Louvred Diffuser Panel Switch Baffle Filter Snap-in Bush Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5...
  • Page 7 2.0 Installation 2.2 Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. 2.2.1 Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) 2.2.2 Unpacking •...

  • Page 8: Electrical Connection

    2.0 Installation 2.3 Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body.

  • Page 9: Technical Specifications

    3.1.1 W.CHD750 Specifications: Model W.CHD750 Height 1150mm Width 750mm Depth 660mm Power 240VAC / 50Hz / 0.5kW (10A Plug & lead fitted) 3.1.2 W.CHD1000 Specifications: Model W.CHD1000 1000 Height 1150mm Width 1000mm Depth 660mm Power 240VAC / 50Hz / 1.0kW (10A Plug &...

  • Page 10: Initial Start-Up & Operation

    Ensure all components are properly fitted, all filters must be fitted to the hood prior to use Plug the hood into a 10AMP power circuit Your Woodson product is now ready for use Diagram 1 Diagram 2...
  • Page 11 5.0 Cleaning and Maintenance 5.1 Cleaning 5.1.1 Cleaning Schedule • Daily cleaning is required for the unit. This will help to maintain and prolong the efficiency of the unit • The unit should be cleaned at the end of each service period 5.1.2 Materials Required •...
  • Page 12 5.0 Cleaning and Maintenance 5.1.6 Cleaning Procedure Filters Maintaining and/or replacing the Stainless Baffles (first filter) and Polyester Filter (second filter) will prolong the life of the Carbon Filter (third filter) and improve the systems performance. Daily cleaning of the Stainless baffles is recommended or as required. The polyester filter should be inspected when the stainless baffles are removed and cleaned or replaced if required.

  • Page 13: Troubleshooting

    5.0 Cleaning and Maintenance 5.1.7 Cleaning Procedure - Surfaces Isolate from the power supply Wearing Personal Protective Equipment (PPE), apply Stainless Cleaner with the Cleaner pad to the external surfaces Scrub any baked on soil with the cleaner pad in the same direction as grained polish Wipe clean using a cloth dampened with clean warm water until all Stainless Cleaner and soil has been removed Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry.
  • Page 14 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13...
  • Page 15 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 14...
  • Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...

This manual is also suitable for:
