Dynorbital 57201 Operating, Maintenance And Safety Instructions

5" & 6" two hand sander

Advertisement

Quick Links

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Models:

57200 – 5" Non-Vacuum
57201 – 5" Vac-Ready
57202 – 5" Basic Vac
57203 – 5" Deluxe Vac
57204 – 5" Central Vac-Ready
57210 – 6" Non-Vacuum
57211 – 6" Vac-Ready
57212 – 6" Basic Vac
57213 – 6" Deluxe Vac
57214 – 6" Central Vac-Ready
WARNING
!

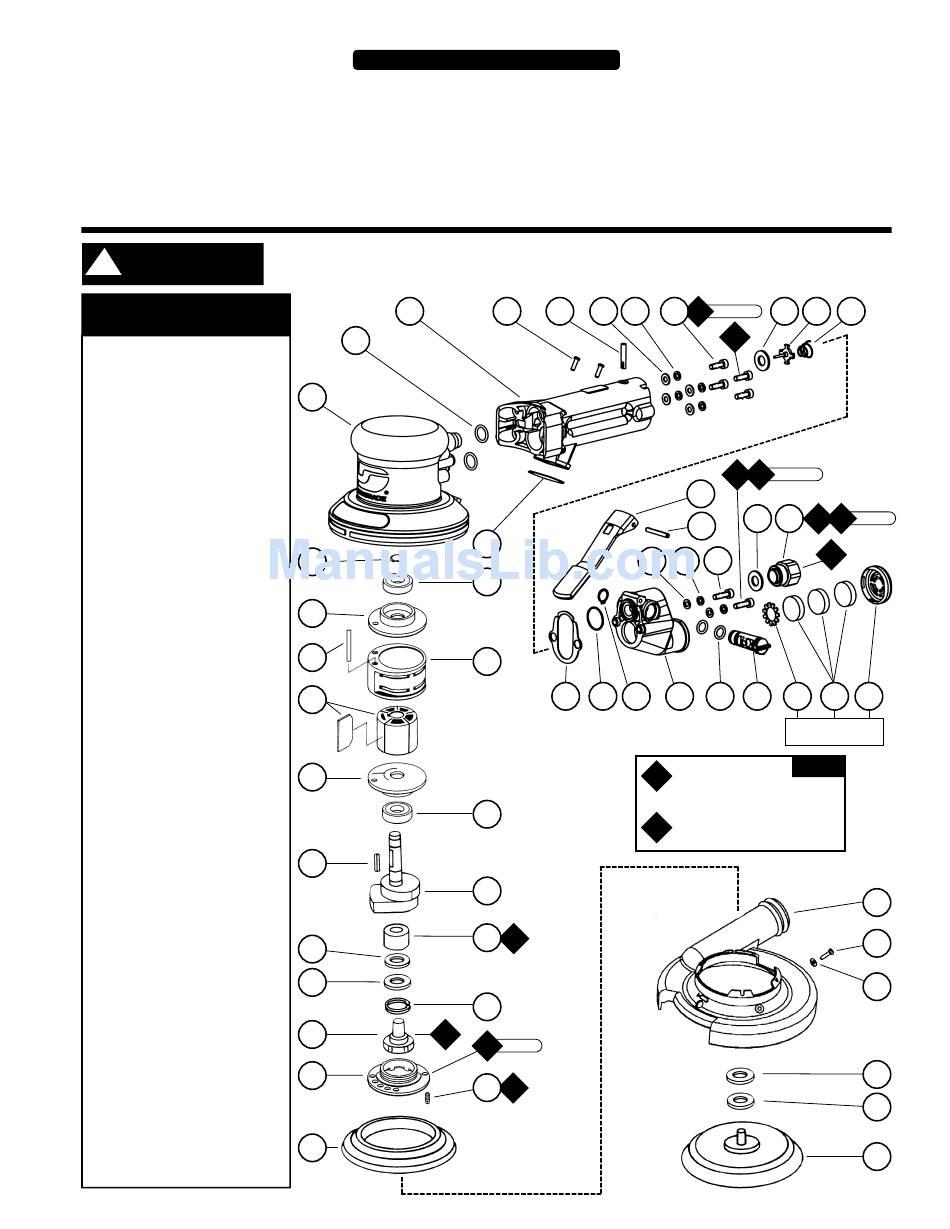

Index Key
No. Part #
Description
1 56104
5" Vac Sanding Pad
56105
6" Vac Sanding Pad
56106
5" Non-Vac Sanding Pad
56107
6" Non-Vac Sanding Pad
2 95858
Spacer
2
95859
Spacer
A
3 95886
Washer (4) (CVR)
4 96425
Screw (4) (CVR)
5 57737
6" Vacuum Shroud
6 57369
Lip Seal Shroud
7 96166
Set Screw
8 57332
Lock Ring
9 57069
Balancer Shaft
10 95630
Snap Ring
11 95628
Bearing Shield
12 56053
Bearing Seal
13 56052
Balancer Bearing
14 57364
5" Motor Shaft Balancer
57365
6" Motor Shaft Balancer
15 54673
Rotor Key
16 02695
Bearing
17 54630
Front Bearing Plate
18 54705
Rotor/Blade Set
19 54631
Cylinder Assy. (incl. #20)
20 95865
Line-Up Pin
21 54629
Rear Bearing Plate
22 01206
Bearing
23 95626
Retaining Ring
24 57382
Gasket (5", 6" Non-Vac
6" Central Vac)
57383
Gasket (5", 6" Vac-Ready
5" Central Vac)
25 57205
Housing - 57200
57206
Housing - 57201, 02, 03
57207
Housing - 57204
57208
Housing - 57210
57209
Housing - 57211, 12, 13
57218
Housing - 57214
26 95523
O-Ring (2)
27 56671
Handle
28 96123
Screw (2)
29 57396
Valve Stem
30 95886
Flat Washer (4)
31 01211
Split Lock Washer (6)
32 97010
Screw (4)
33 01464
Seal (2)
34 01472
Tip Valve
35 01468
Conical Spring
36 56673
Gasket
37 96328
O-Ring
38 98597
Retaining Ring
39 56672
Adapter Assembly
40 01024
O-Ring (2)
41 57343
Speed Regulator
42 54199
Muffler Seat
43 54195
Muffler (3)
44 54194
Muffler Cap
45 57344
Throttle Lever
46 01017
Pin
47 96421
Flat Washer (2)
48 01788
Screw (2)
49 01494
Inlet Bushing
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
For Serial No. 9L1437 and Higher
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
27
26
25
23
21
20
18
17
15
12
11
A
9
2
8
6
5" & 6" Two Hand
Dynorbital
Air Powered, Random Orbital Sander, 12,000 RPM
28
29
30
31
24
22
19
36
37
38
16
14
13
A
2
10
T
34 N•m
A
7
3
6" Non-Vac
6" Vac-Ready
5" Non-Vac
5" Vac-Ready
Parts Page Reorder No. PD00•26
Effective March, 2000
Supersedes PD99•07
®
Sander
32
33
34
T
3.38 N•m
A
3
A
T
3.38 N•m
3
45
A
33
49
2
46
O
47
31
48
39
40
41
42
6" Non-Vac/Central Vac
5" Non-Vac/Central Vac
KEY
Adhesive:
A
A
= Loctite #271
2
A
= Loctite #242
3
Torque: N•m x 8.85 = In. - lbs.
T
35
T
23 N•m
1
43
44
5
4
3
2
A
2
1
