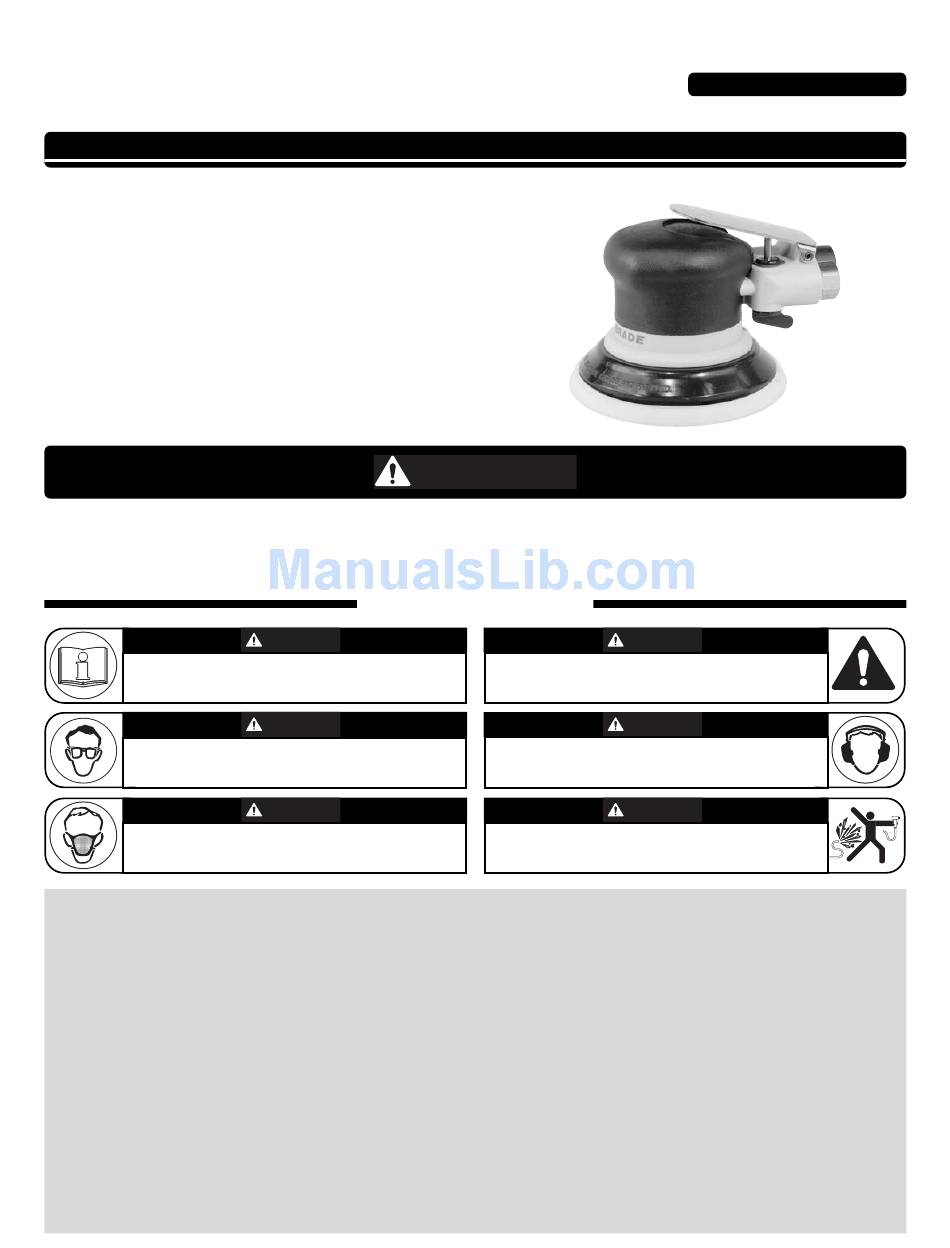

Dynorbital Supreme Safety, Operation And Maintenance Manual

12,000 rpm air powered random orbital sander 3/16 orbit: 56800 - 3-1/2" non-vacuum; 56803 - 3-1/2" vac-ready; 56804 - 3-1/2" central vac-ready; 56815 - 5" non-vacuum; 56818 - 5" vac-ready; 56819 - 5" central vac-ready; 56826 - 6" non-vacuum; 56829 - 6" v

Advertisement

Quick Links

Dynorbital
Models:
3/16 Orbit
56800 - 3-1/2" Non-Vacuum
56803 - 3-1/2" Vac-Ready
56804 - 3-1/2" Central Vac-Ready
56815 - 5" Non-Vacuum
56818 - 5" Vac-Ready
56819 - 5" Central Vac-Ready
56826 - 6" Non-Vacuum
56829 - 6" Vac-Ready
56830 - 6" Central Vac-Ready
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Safety Institute
(ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the Use, Care
and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for Standards
(EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise alerted from the original design without expressed written consent from Dynabrade, Inc.
Tool Intent: Dynorbital
®
Supreme Random Orbital Sander is used for sanding and finishing a variety of materials including wood, metal, plastic, fiberglass, solid surfaces,
composites, rubber, glass and stone.
This power tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electrical power.
Training: Proper care, maintenance, and storage of your tool will maximize its performance.
• Employer's Responsibility – Provide Dynorbital
Accessory Selection:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Follow tool specifications before choosing size and type of accessory.
• Only use recommended fittings and air line sizes. Air supply hoses and air hose assemblies must have a minimum working pressure rating of 150 PSIG (10 bars, g) or 150
percent of the maximum pressure produced in the system, whichever is higher. (See Tool Machine Specifications Table.)
Warning: Always wear eye protection. Operator of tool is responsible for following: accepted eye, face, respiratory, hearing and body protection.
Caution: Hand, wrist and arm injury may result from repetitive work, motion and overexposure to vibration.
Supreme
®
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
3/32 Orbit
56840 - 3-1/2" Non-Vacuum
56843 - 3-1/2" Vac-Ready
56844 - 3-1/2" Central Vac-Ready
56850 - 5" Non-Vacuum
56853 - 5" Vac-Ready
56854 - 5" Central Vac-Ready
56859 - 6" Non-Vacuum
56862 - 6" Vac-Ready
56863 - 6" Central Vac-Ready
WARNING
SAFETY LEGEND
WARNING
WARNING
WARNING

SAFETY INSTRUCTIONS

Do Not Use Tool For Anything Other Than Its Intended Applications.
®
Supreme operators with safety instructions and training for safe use of tools and accessories.
(continued on next page)
12,000 RPM Air Powered Random Orbital Sander
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use damaged,
frayed or deteriorated air hoses and fittings.
®
Abrasive Power Tool.
Parts Page Reorder No. PD05•47
Effective December, 2005
Supersedes PD04•55
For Serial No. 05F3300 and Higher
WARNING
WARNING
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supreme and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynorbital Supreme

  • Page 1 Tool Intent: Dynorbital ® Supreme Random Orbital Sander is used for sanding and finishing a variety of materials including wood, metal, plastic, fiberglass, solid surfaces, composites, rubber, glass and stone. Do Not Use Tool For Anything Other Than Its Intended Applications.
  • Page 2 • Connect air tool to power source. Be careful NOT to depress throttle lever in the process. Do not expose air tool to inlet pressure above 90 PSIG or (6.2 Bars). Caution: After installing the accessory, before testing or use and/or after assembling tool, the Dynorbital-Spirit™ must be started at a reduced speed to check for good balance.
  • Page 3 2 drops per minute). Dynabrade Air Lube (P/N 95842: 1 pt 473 ml) is recommended. Routine Preventative Maintenance: Check free speed of Dynorbital-Spirit™ using a tachometer. • Mineral spirits are recommended when cleaning the tool and parts. Do not clean tool or parts with any solvents or oils containing acids, esters, ketones, chlorinated hydrocarbons or nitro carbons.
  • Page 4 Dynorbital Supreme Complete Assembly ® Oil: O = Air Lube See Below for Machine Exhaust Assemblies. Adhesive: = Loctite #271 = Loctite #567 Torque: N•m x 8.85 = In. - lbs. Index Key 23 N•m Part # Description 95630 Snap Ring...
  • Page 5 ® Motor Assembly/Disassembly Instructions – Dynorbital Supreme Important: Manufacturers warranty is void if tool is disassembled before warranty expires. A complete Repair Kit, part number 57098, is available which includes special tools for correct disassembly/assembly of tool. To Disassemble 1. Disconnect tool from power source.
  • Page 6 ® Motor Assembly/Disassembly Instructions – Dynorbital Supreme Drawing 4 Drawing 5 57091 Bearing Press Tool 57091 Bearing Press Tool 57056 Rear Bearing Plate (with 01206 Bearing) 57057 Front Bearing Plate Line-Up Pin 57058 Cylinder Assembly 57088 Bearing (w/Rotor and Vanes)
  • Page 7 Self-Contained Dust Collection Systems Easily attach to Dynorbital ® Supreme Random Orbital Sander – Self-Generated Vac-Ready Models. 50694 Mini-Reusable Felt Bag 54284 Mini-Flex-Hose System • New bag design features a one • 95580 Air Line 1" dia. x 28" long.
  • Page 8 For All Dynorbital ® Supreme Air Powered Random Orbital Sanders This service chart is published as a guide to expectant life of component parts. The replacement levels are based on average tool usage over one year. Dynabrade Inc. considers one year usage to be 1,000 hours or 50% of a man year.
