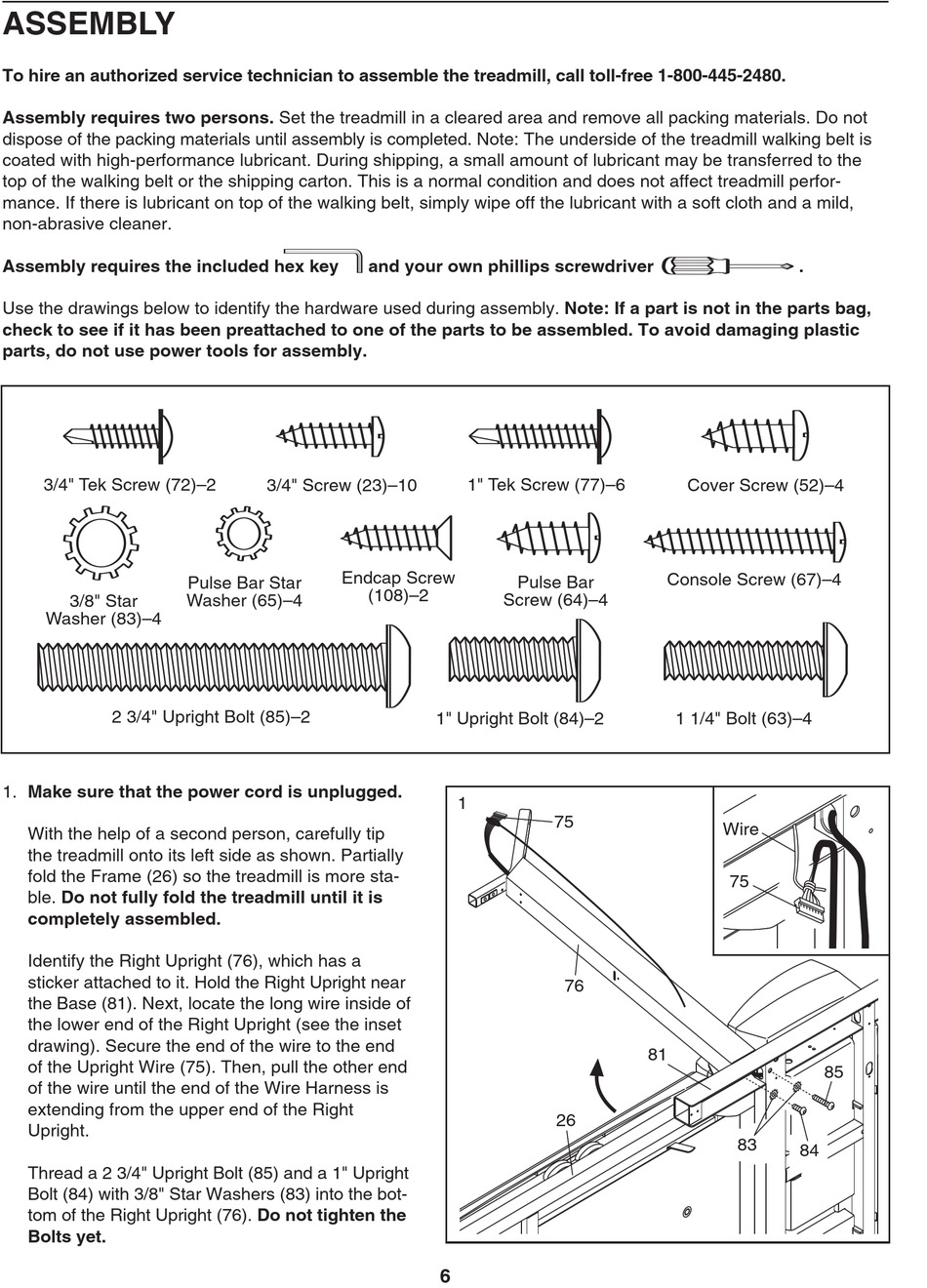

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex key
(84)–2
Extension Leg Bolt (96)–4
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plastic
parts, do not use power tools for assembly.
3/4" Tek Screw (72)–2
3/8" Star
Washer (83)–4
2 3/4" Upright Bolt (85)–2
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side as shown. Partially
fold the Frame (26) so the treadmill is more sta-
ble. Do not fully fold the treadmill until it is
completely assembled.
Identify the Right Upright (76), which has a
sticker attached to it. Hold the Right Upright near
the Base (81). Next, locate the long wire inside of
the lower end of the Right Upright (see the inset
drawing). Secure the end of the wire to the end
of the Upright Wire (75). Then, pull the other end
of the wire until the end of the Wire Harness is
extending from the upper end of the Right
Upright.
Thread a 2 3/4" Upright Bolt (85) and a 1" Upright
Bolt (84) with 3/8" Star Washers (83) into the bot-
tom of the Right Upright (76). Do not tighten the
Bolts yet.
3 1/2" Bolt (45)–4
and your own phillips screwdriver
3/4" Screw (23)–10
Endcap Screw
Pulse Bar Star
(108)–2
Washer (65)–4
(106)–4
Wheel Nut (32)–2
Wheel Nut (13)–2
1" Tek Screw (77)–6
Pulse Bar
Screw (64)–4
1" Upright Bolt (84)–2
1
75
76
26
6
Handrail Bolt (64)–4
.
Extension Leg Bolt (96)–4
Cover Screw (52)–4
Console Screw (67)–4
1 1/4" Bolt (63)–4
Wire
75
81
85
83
84
