Model No. PFTL43205.1
USER'S MANUAL
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Visit our website at
Read all precautions and instruc-
tions in this manual before using
www.proform.com
this equipment. Save this manual
new products, prizes,
for future reference.
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for ProForm PFTL43205.1
Summary of Contents for ProForm PFTL43205.1
- Page 1 Model No. PFTL43205.1 USER'S MANUAL Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
-
Page 2: Table Of Contents
HOW TO FOLD AND MOVE THE TREADMILL ........ -
Page 3: Important Precautions
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local PROFORM dealer or call the toll- free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store. - Page 4 SAVE THESE INSTRUCTIONS The decals shown here have been placed on the treadmill. If a decal is missing, or if it is not legible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal.
-
Page 5: Before You Begin

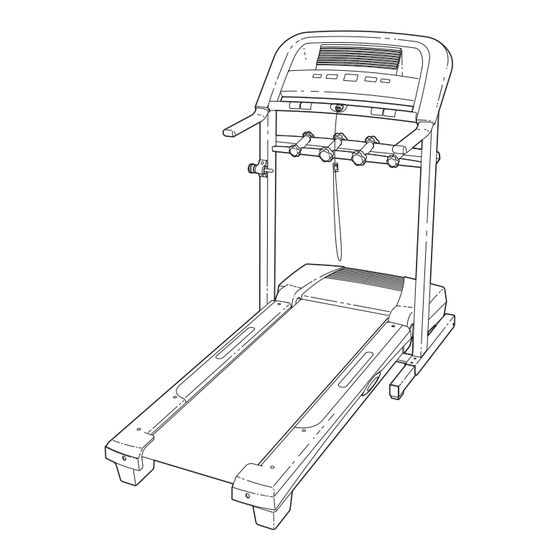

BEFORE YOU BEGIN Thank you for selecting the new PROFORM treadmill. The PROFORM 525 X treadmill offers a selec- tion of features designed to make your workouts at home more effective and enjoyable. And when you’re not exercising, the PROFORM 525 X treadmill can be folded up, requiring less than half the floor space of other treadmills. -
Page 6: Assembly
During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor- mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner. - Page 7 2. Attach a Wheel (66) to the base of the Uprights (69) with a Wheel Bolt (64) and a Wheel Nut (32) as shown. Do not overtighten the Wheel Bolt; the Wheel should turn freely. With the help of a second person, carefully tip the tread- mill onto its other side.
- Page 8 Place the Weights (not shown) on the Weight Rack (102). 8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place; the large allen wrench is used to adjust the walking belt (see page 20).
-
Page 9: How To Plug In Power Cord
(see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call the toll-free telephone number on the front cover of this man- ual and order part number 146148, or see your local electronics store. -
Page 10: Console Diagram
In addition, the console features two trainer programs. Each program automatically controls the speed and in- cline of the treadmill as it guides you through an effec- tive workout. You can even create your own custom programs and store them in memory for future use. -
Page 11: How To Use The Manual Mode
To restart the walking belt, press the Start button, the Speed increase button, or one of the ten numbered buttons. Note: The first time you use the treadmill, periodi- cally inspect the alignment of the walking belt, and center the walking belt if necessary (see page 20). - Page 12 When you are finished exercising, remove the key. Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi- tion, or the treadmill will become damaged.
- Page 13 If the speed and/or incline of the treadmill is about to change, the speed setting and/or the incline setting will flash to alert you. When the first period is completed, all speed set- tings will move one column to the left .
-
Page 14: How To Create A Custom Program
To program a speed setting and an in- cline setting for the first period, simply adjust the speed and incline of the treadmill as desired by pressing the Speed and Incline buttons. Every few times a Speed button is pressed, an additional in- dicator will appear or disappear in the Current Period column. -
Page 15: How To Use A Custom Program
. The speed setting for the second period will then be shown in the flashing Current Period column, and the treadmill will automatically adjust to the second speed and incline settings that you pro- grammed previously. - Page 16 The information mode also allows you to select miles or kilometers as the unit of measurement and to turn on and turn off the demo mode.
-
Page 17: How To Fold And Move The Treadmill
HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per- manently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill. - Page 18 HOW TO LOWER THE TREADMILL FOR USE 1. Hold the treadmill with your right hand as shown. Pull the latch knob to the left and hold it. Pivot the frame down until it is past the latch pin. 2. Hold the metal frame firmly with both hands, and lower it to the floor.
-
Page 19: Troubleshooting
PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in. - Page 20 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered. b. If the walking belt slips when walked on, first remove the key and UNPLUG THE POWER CORD.
-
Page 21: Conditioning Guidelines
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone. Aerobic Exercise If your goal is to strengthen your cardiovascular sys- tem, your exercise must be “aerobic.”... -
Page 22: Suggested Stretches
SUGGESTED STRETCHES The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce. 1. Toe Touch Stretch Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. - Page 23 NOTES...
- Page 24 PART LIST—Model No. PFTL43205.1 No. Qty. Description Hood 3/4” Screw Motor Belt Motor Tension Bolt Fan Screw Motor Star Washer Flywheel Drive Motor Foot Rail Cover Reed Switch Latch Warning Decal Frame Spacer Frame Pivot Nut/Motor Nut Frame Pivot Bolt...
-
Page 26: Ordering Replacement Parts
• the MODEL NUMBER of the product (PFTL43205.1) • the NAME of the product (PROFORM 525 X treadmill) • the SERIAL NUMBER of the product (see the front cover of this manual) • the KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and the PART LIST attached in the center of this manual) ICON Health &...
