Wavecom TnP-500X User Manual

Fully integrated test n print unit, 10/20amp model with wired/wireless scanner/& li battery
Hide thumbs
Table of Contents

Advertisement

Quick Links

WAVECOM INSTRUMENTS
TnP-500®
TnP-500X®
TnP-500W®
TnP-500WX®
TnP-500B®
TnP-500BX®
TnP-500BW®
TnP-500BWX® 20Amp Model with wireless scanner & Li Battery
Australian Designed & Manufactured to comply with testing requirements of
Adelaide
257 Grange Road, Findon SA 5023
Phone: (+61) 08 8243 3500
Fax: (+61) 08 8243 3501
Email: sales@wavecom.com.au
Web: www.wavecom.com.au
Fully Integrated TEST n PRINT UNIT
User Manual
10Amp Model with wired Scanner
20Amp Model with wired Scanner
10Amp Model with wireless Scanner
20Amp Model with wireless Scanner
10Amp Model with wired Scanner & Li Battery
20Amp Model with wired Scanner & Li Battery
10Amp Model with wireless scanner & Li Battery
AS/NZS 3760:2010
Melbourne
772A Station Street, Box Hill, Victoria 3128
Phone: 1300 793 301
Fax: (+61) 03 9897 4766
Email: salesvic@wavecom.com.au
Web: www.wavecomrentals.com.au
Standards.
Unit 2/17 Casino Street, Welshpool, WA
Phone: (+61) 08 9353 1943
Fax: (+61) 08 9353 4319
Email: saleswa@wavecom.com.au
Web: www.wavecom.com.au
PTY LTD©
Perth

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TnP-500X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wavecom TnP-500X

Summary of Contents for Wavecom TnP-500X

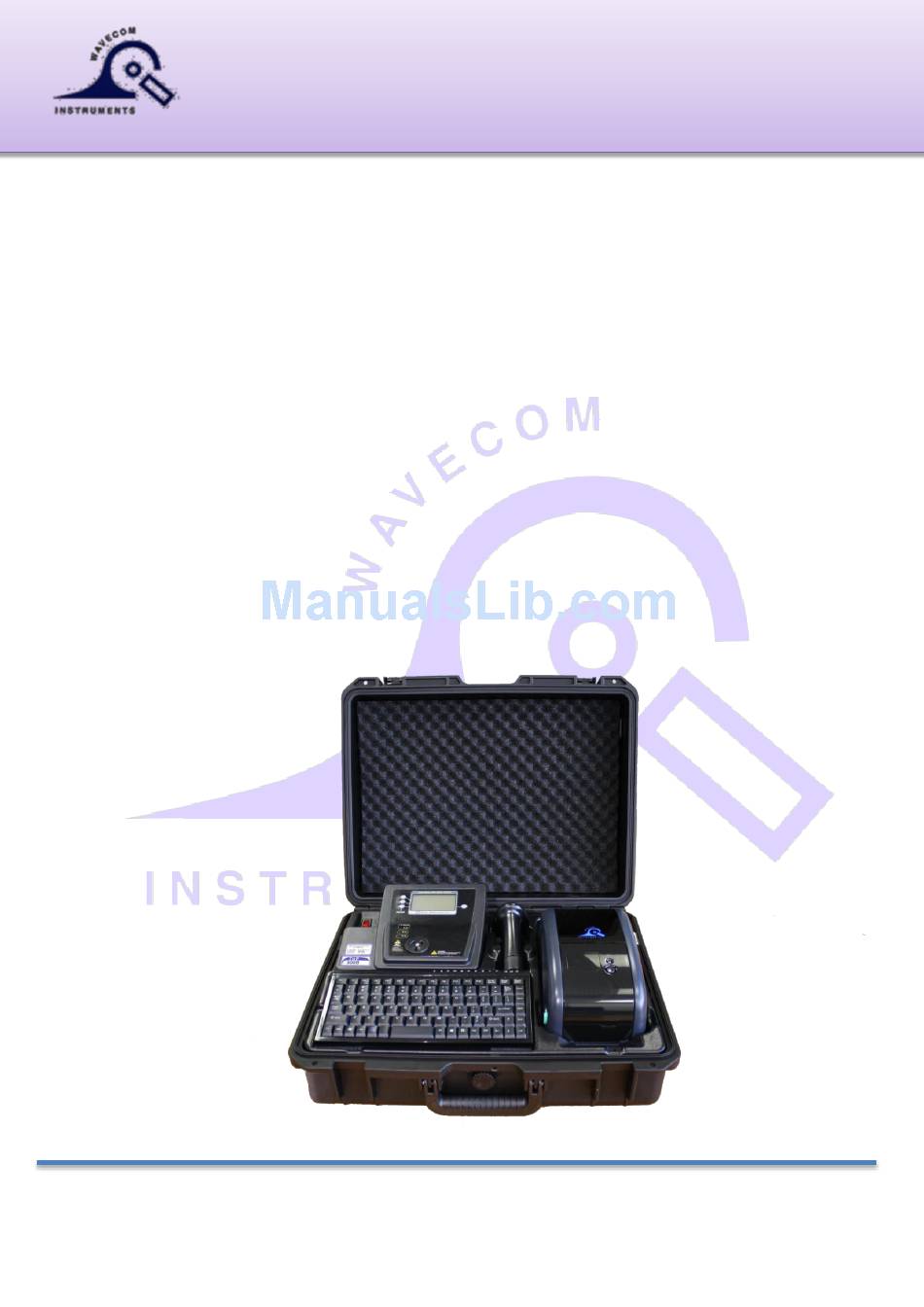

  • Page 1 WAVECOM INSTRUMENTS PTY LTD© Fully Integrated TEST n PRINT UNIT User Manual TnP-500® 10Amp Model with wired Scanner TnP-500X® 20Amp Model with wired Scanner TnP-500W® 10Amp Model with wireless Scanner TnP-500WX® 20Amp Model with wireless Scanner TnP-500B® 10Amp Model with wired Scanner & Li Battery TnP-500BX®...
