Related Manuals for LG 32LJ550D.AAU
Summary of Contents for LG 32LJ550D.AAU

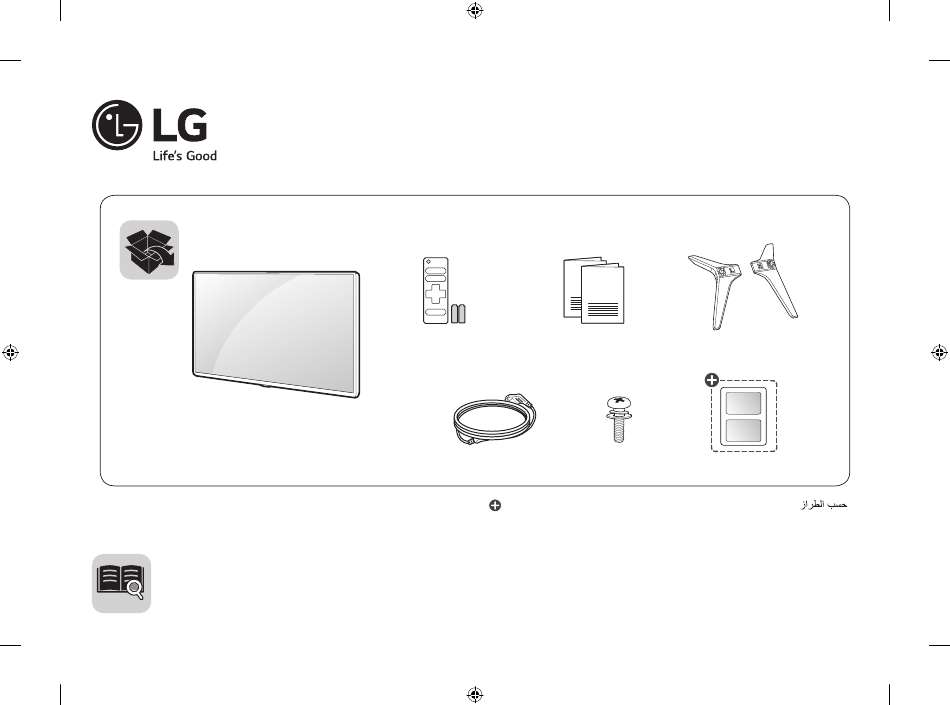

- Page 1 LED TV LJ55** (M4 x L16) : Depending on model / Selon le modèle / Dependendo do modelo / P/No: MFL69715318 (1706-REV00) www.lg.com Made by LG Electronics...
- Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN H/P OUT...
- Page 5 H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R...
- Page 6 COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 8 32LJ550D-TA 181.1 77.8 32LJ550U-TA 32LJ550Z-TA...
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com P/NO: MFL69715218 (1706-REV00) *MFL69715218* Made by LG Electronics...
- Page 10 Warning! Safety instructions • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. • Insert power cable plug completely into wall socket otherwise if CAUTION not secured completely into socket, fire ignition may break out.
- Page 11 • Only use an authorized AC adapter and power cord approved by internal lighting eg Sunlight, fluorescent lighting. If this occurs turn LG Electronics. Otherwise, this may result in fire, electric shock, off lighting or darken viewing area. malfunction or product deformation.
- Page 12 • When connecting external devices such as video game consoles, • When moving the product, make sure you turn the power off first. make sure the connecting cables are long enough. Otherwise, Then, unplug the power cables, antenna cables and all connecting the product may fall over, which may cause injury or damage the cables.
-
Page 13: Lifting And Moving The Tv
Lifting and moving the TV • Do not use any unapproved items to ensure the safety and product life span. Please note the following advice to prevent the TV from being scratched • Any damage or injuries caused by using unapproved or damaged and for safe transportation regardless of its type and size. -
Page 14: Using The Button
Using the button Mounting on a table You can simply operate the TV functions, using the button. 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. -
Page 15: Mounting On A Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 16: Antenna Connection
Antenna connection • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. Connect the TV to a wall antenna socket with an RF cable (75 Ω). • Use a signal splitter to use more than 2 TVs. •... -
Page 17: Remote Control
Remote control (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. (SEARCH) Search for content such as TV programmes, movies (Some buttons and services may not be provided depending on models and other videos, or perform a web search by entering text in the or regions.) search bar. -
Page 18: Troubleshooting
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 19: Specifications
Specifications Abnormal Display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with Wireless module specification product. • As band channels can vary per country, the user cannot change or •... - Page 20 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % 1 Only Satellite models.
- Page 21 Regulatory WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set. •...
- Page 24 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 25: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 26: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 27 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
-
Page 28: Customer Computer
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 29: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 30: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. - Page 31 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 32 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
- Page 33 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
- Page 34 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
- Page 35 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
- Page 36 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
