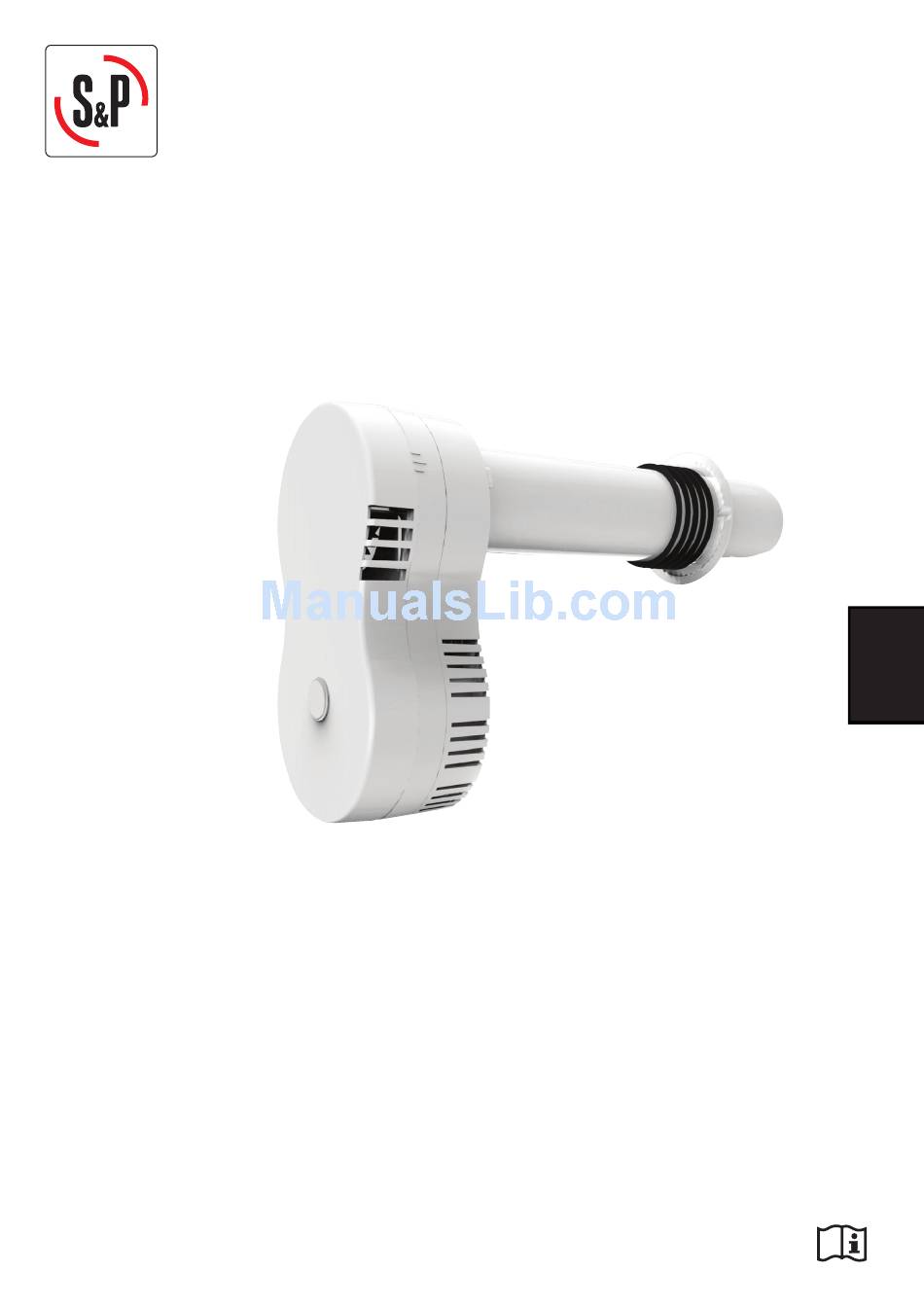

- Page 1 ECOROOM ECOROOM Installation manual and commissioning...
- Page 2 Contents 1. General information 2. Technical information 3. Installation 4. Characteristics and electrical connections 5. Commissioning the ECOROOM 6. Maintenance The packaging contains: 1. ECOROOM x 1 2. Mural wall seal x 1 3. Halo x 1 4. Template x 1 5.
- Page 3 1.2 – Guarantee and civil liability Guarantee The ECOROOM heat recovery unit is guaranteed for two years from the date of purchase. This guarantee includes free supply of spare parts. This guarantee does not cover: Assembly and disassembly expenses Any breakdowns which according to Soler &...
- Page 4 2. TECHNICAL INFORMATION 2.1 – General information The ECOROOM provides optimum ventilation for a room with a maximum energy recover. It extracts air from room and supply fresh air. The fresh air end extracted flow are separated and filtered. Only the energy from the extracted air is transferred to the new fresh air introduced.
- Page 5 2.3 – Characteristics: - Exploded view Air intake and discharge out Extraction fan Electrical switching box Tubular exchanger Supply fan Front cover Weight: 3 Kg (D100mm) 3,2Kg (D150mm)
- Page 6 - Dimensions Wall thickness Exchanger model in mm (A) 100-310 311-430 431-500 501-600...
- Page 7 3. INSTALLATION Choose the mounting direction in relation to the ceiling, Maintaining a minimum distance. Adjust the fixation of the cord in accordance with the mounting direction. Mounting holes Remove the cover Use the 3 mounting holes...
- Page 8 Mounting with wall seal: -5-a -4-a Mark the position of wall seal. X= Wall thickness Drill the hole of 117 mm or 162 mm -6-a Glue the wall seal and remove any superplus glue. -7-a Mount the exchanger at the junction of the wall and secure the body using the 3 screws.
- Page 9 Mounting with sleeve (non delivered): 99 or 149 mm Inside diameter of 100 or 150 mm as a minimum Diameter 107 or 158 mm as a minimum Wall thickness Expanding foam Mounting Sleeve -4-b Cut the mounting sleeve of inner diameter (B) to the length of the wall passage (X). Seal the mounting sleeve using the expanding foam.
- Page 10 5. CONTROL OF ECOROOM • Manually The EcoRoom has a cord which allows yout to manually place it into « Boost » mode or to return to « Normal » mode simply by pulling the cord. • Hygrostat (automatic) The EcoRoom has an automatic humidity control system. If the humidity in the room in which is installed exceeds 65%, the EcoRoom increases its throught put accordingly.
- Page 11 6. MAINTENANCE Review manually and clean if it is necessary all the components (fans, exchanger..) Before carrying out any cleaning work on the system, make sure that it is disconnected from the mains. Open the cover. Dismantle the supply fan. Loose the central screw.
- Page 12 S&P SISTEMAS DE VENTILACIÓN S.L.U. C/ Llevant, 4 08150 Parets del Vallès (Barcelona) Tel. +34 93 571 93 00 Fax +34 93 571 93 01 www.solerpalau.com...
