Serai MT/B6 Installation Manual

Motor for swing gates up to 6 meters - 400kg- 230 vac (24 vdc)

Advertisement

Quick Links

S
MT/B6 -
MOTOR FOR SWING GATES UP TO 6 METERS - 400Kg- 230 Vac
SR 03.B6 -
MT/C6 -
MOTOR FOR SWING GATES UP TO 6 METERS - 400Kg- 24 Vdc
SR 03.C6 -

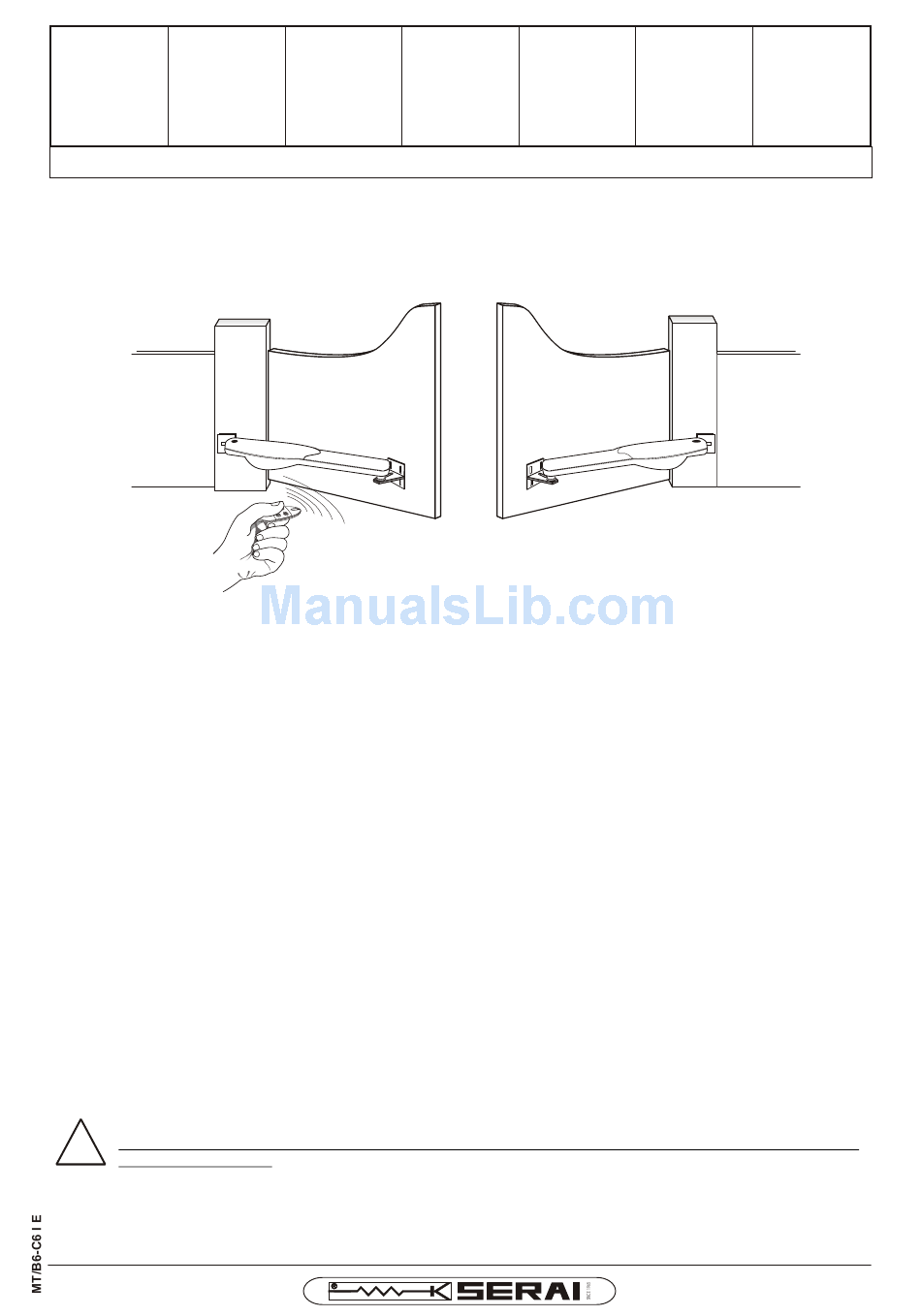

Thank you for choosing a SERAI ELETTRONICA product, which we are confident will perform to your requirements.
Please be advised that you are about to fit a system classified as "a power-operated drive designed to move automatic ga-
tes and doors in commercial or residential buildings accessed by vehicles and persons", and as such, the system must be
considered potentially hazardous. By law, you are responsible for rendering this equipment as "safe" as is reasonably pos-
sible.
Installation and maintenance of equipment of this kind must therefore be carried out by skilled, qualified and trained
personnel, working in a professional manner, as provided for by law n. 46/90 and any subsequent amendments and
supplements. The law in question prohibits the construction of these types of systems by non-qualified personnel.
SERAI manufacturing complies with the following legislation:
Applicable directives for the CE marking :
Machines:
Low Voltage:
Electromagnetic Compatibility:
General applicable standards:
Electrical Safety:
Electromagnetic Compatibility - Emissions:
Electromagnetic Compatibility - Immunity:
Apart from the legislation mentioned above, you are also reminded to comply with the following standards during the
installation phase.
General applicable standards:
Safety of electrical systems in non-specialised environments:
Specific product standards applicable:
Safety in the use of power-operated doors - requirements:
Safety in the use of power-operated doors - testing methods:
SERAI products enable users to build systems which comply with these standards. This is extremely important as
!
THE INSTALLER IS LIABLE FOR THE SYSTEM AND FOR ENSURING ITS OPERATION COMPLIES WITH
LEGAL PROVISIONS.
This handbook must be read in full before proceeding with the installation of the various parts of the system.
The motor is equipped with adjustable internal mechanical stops. In any event, the installer must position the
mechanical end stops for gate opening and closing for system safety purposes.
E
R
GATE AUTOMATION DIVISION
INSTALLATION MANUAL
98/37/EEC
73/23/EEC
89/336/EEC
IEC EN60335-1 + IEC EN60335-2-103
CEI EN61000-6-3
CEI EN61000-6-
CEI 64-8
UNI EN12453
UNI EN12445
A
I
Page 1/6

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT/B6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Serai MT/B6

  • Page 1 SR 03.C6 - Thank you for choosing a SERAI ELETTRONICA product, which we are confident will perform to your requirements. Please be advised that you are about to fit a system classified as “a power-operated drive designed to move automatic ga- tes and doors in commercial or residential buildings accessed by vehicles and persons”, and as such, the system must be...
  • Page 2 BEFORE INSTALLING THE MOTORS 1- Ensure perfect right angles of the gate hinges to enable totally smooth and balanced swing gate movement. Otherwise the motor may be damaged when subject to much higher levels of resistance with respect to the tho- se specified for intended use.
  • Page 3 BRACKET POSITIONING FOR INWARD OPENING BRACKET POSITIONING FOR OUTWARD OPENING OUTWARD OPENING 885 mm INWARD OPENING Fig. 4 Fig. 5 OPENING ANGLE 90° OPENING ANGLE 100° OPENING ANGLE 110° Warning: to ensure correct gate movement, use values in the shaded band. The gate opening (or closing) time varies according to the selected values B and C.
  • Page 4 Use a cable of 2x2,5mm with the sequence: MT/C6 open/close MT/C6 open/close Fig. 8 WARNING: On versions MT/B6 - at 230V~ - | __ the capacitor is pre-wired internally. Advice for wiring up in non-specialised environments. 1. Fit an omnipolar switch upstream of the system, choosing one with a gap of at least 3mm between the contacts. Or, alternatively, use a 10A thermal magnetic circuit breaker switch.
  • Page 5 FINAL INSTALLATION 13- Remove the motor from the brackets. Weld the front bracket in its final position. Fix the rear bracket in its final position. - Fig. 14 - 14- Refit the motor. Any differences in values B and C can be compensated for using the 5 holes on the rear brac- Fig.
  • Page 6 TERMS OF GUARANTEE The company reserves the right to make modifications to the equipment without prior notice thereof. SERAI products are covered by a standard guarantee with a term of 24 months. Coverage starts on the date on which the tax document constituting proof of purchase is issued and guarantee services shall be provided on the company's premises at Legnaro - PD - or at the Authorised Service Centres.

This manual is also suitable for:

Mt/c6
