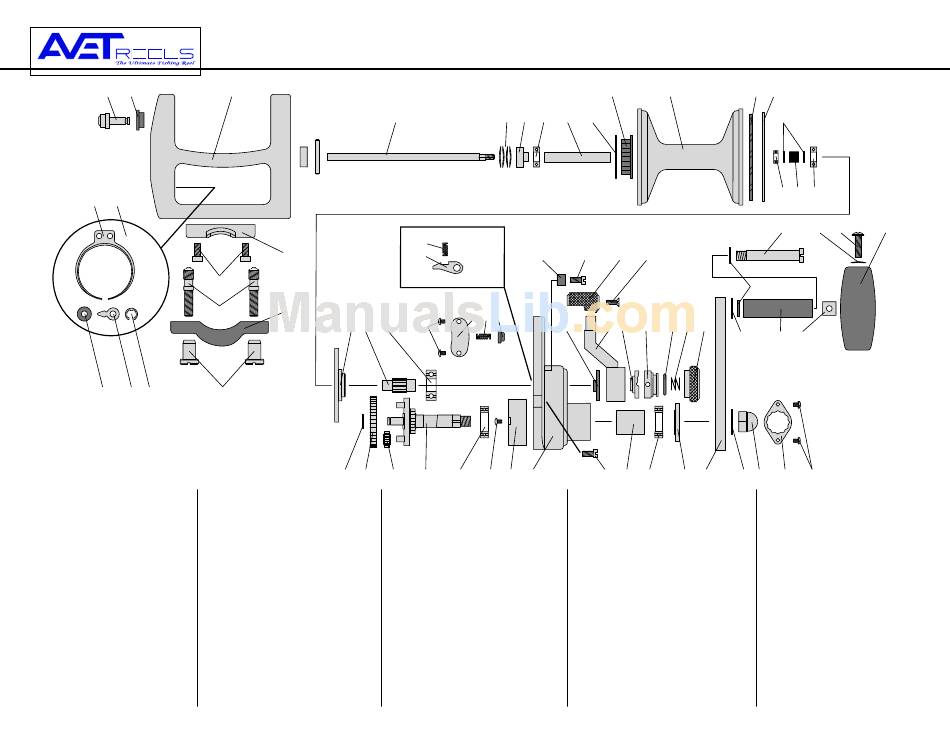

Avet Reels Fishing Reel LX - 8.0 Parts List

64
65
67 66
68 69 70
1 - Main Housing LX801-001
2 - Spool Shaft LX801-002
3 - Belleville Washers (4 req.) LX801-003
4 - Pusher Bushing LX801-004
5 - Spool Bearing LX801-005
6 - Spool Tube LX801-006
7 - Clicker Gear Retainer Ring LX801-007
8 - Clicker Gear LX801-008
9 - Spool LX801-009
10 -Brake Pad LX801-010
11- Brake Pad Retainer Ring LX801-011
12- Spool Bearing LX801-012
13- Spool Spring Washer (2 req.) LX801-013
14- Sool Spring LX801-014
15 - Brake Bearing LX801-015
Models LX - 8.0 Parts List
1
2
59
60
62
61
16 17 18
63
28 29 30
16 - Brake Disk LX801-016
17 - Pinion Gear LX801-017
18 - Pinion Bearing LX801-018
19 - End Housing LX801-019
20 - Screw (4 req.) LX801-020
21 - Cover Plate LX801-021
22 - Stright Stop Spring (2 req.) LX801-022
23 - Stright Stop LX801-023
24 - Untireverse Dog LX801-024
25 - Dog Spring LX801-025
26 - Stop Pin (2 req.) LX801-026
27 - Stop Pin Screw (2 req.) LX801-027
28 - Shaft E-Clip LX801-028
29 - Drive Gear LX801-029
30 - Small Gear (3req, LX801-030
3 4 5 6
25
24
26 27
21 22 23
38
20
31 32 33 34 19
31 - Drive Shaft LX801-031
32 - Drive Shaft Bearing (2 req.) LX801-032
33 - End Housing Screw (3 req.) LX8401-033
34 - Gear Housing LX801-034
35 - End Housing Screw LX801-035
36 - Drive Shaft Tube LX801-036
37 - Crank Arm Spacer LX801-037
38 - Lever Bushing LX801-038
39 - Lever Arm LX801-039
40 - Lever Knob LX801-040
41 - Knob Screw LX801-041
42 - Female Cam LX801-042
43 - Male Cam LX801-043
44 - O-Ring LX801-044
45 - Preset Knob Spring LX801-045
8
9 10 11
7
40 41
52
39 42 43 44 45 46
51
35 36 32 37 47 48 49
46 - Preset Knob LX801-046
47 - Crank Arm LX801-047
48 - Crank Arm Washer LX801-048
49 - Acorn Nut LX801-049
50 - Locking Plate LX801-050
51 - Handle Stem Washer LX801-051
52 - Handle Tube washer (2 req.) LX801-052
53 - Handle Tube LX801-053
54 - Lock Screw Nut LX801-054
55 - Handle Shoulder Bolt LX801-055
56 - Lock Screw Washer LX801-056
57 - Lock Screw LX801-057
58 - Handle Knob LX801-058
59 - Rod Mount LX801-059
60 - Rod Mount Screw (4 req.) LX801-060
13
12 14 15
55 56 57 58
53 54
50 20
61 - Rod Mount Studs (2 req.) LX801-061
62 - Rod Mount Clamp LX801-062
63 - Rod Mount Nut (2 req.) LX801-063
64 - Pin Support LX801-064
65 - Clicker Pin LX801-065
66 - C Spring Screw LX801-066
67 - C Spring LX801-067
68 - Pin Washer LX801-068
69 - Clicker Arm LX801-069
70 - Pin E-Clip LX801-070
